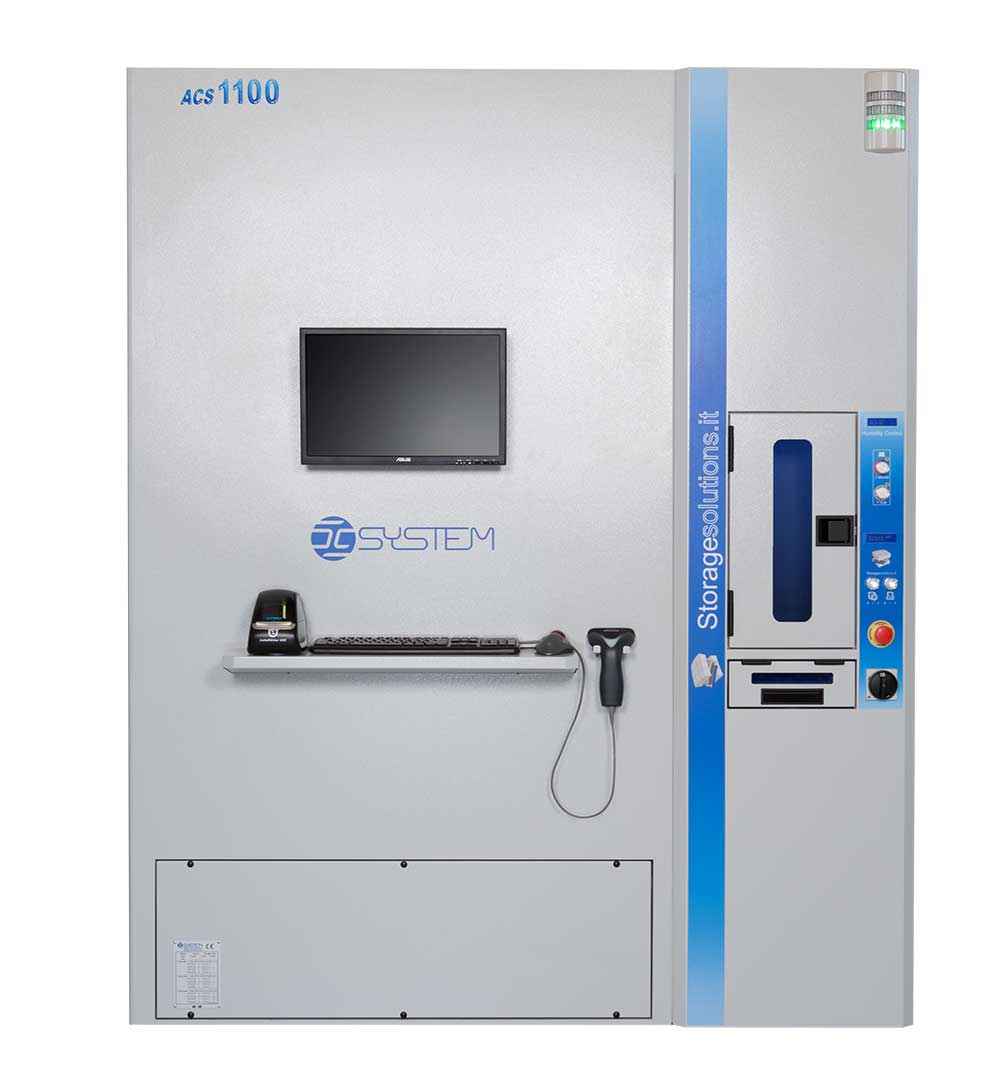

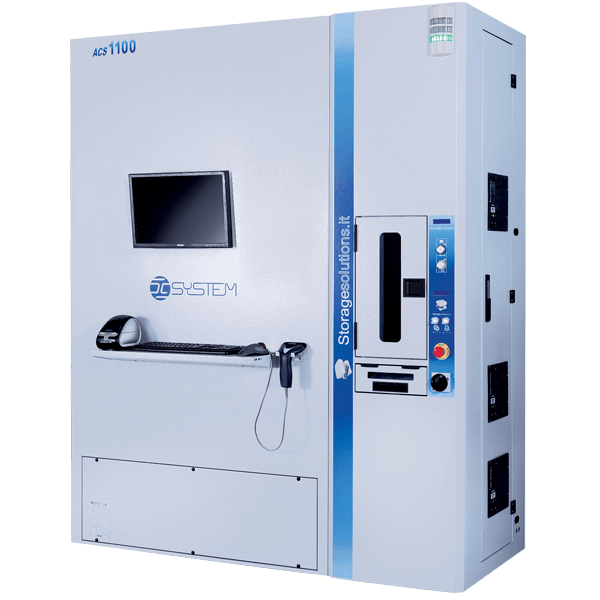

ISM 1100

Automatic store dehumidified for storage of SMT and THT electronic components. Maximum capacity: 1100 reels 7 ".

Large capacity, small encumbrance. High load capacity: up to 1100 reels. Only 173 cm wide and 92 deep. The perfect balance between high performance and ultra compact size.

For those with limited space but want more speed.Ideal for small spaces, it speeds up store management time.

Patented Multi-output: charge and discharge up to 27 reels simultaneously.

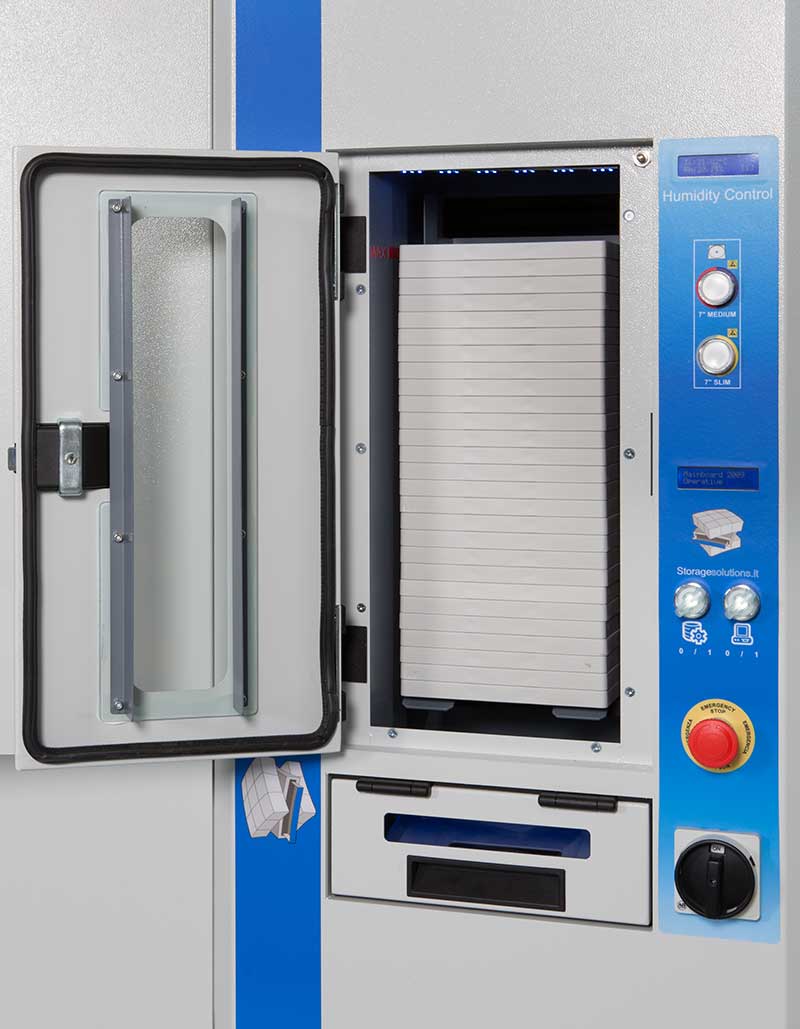

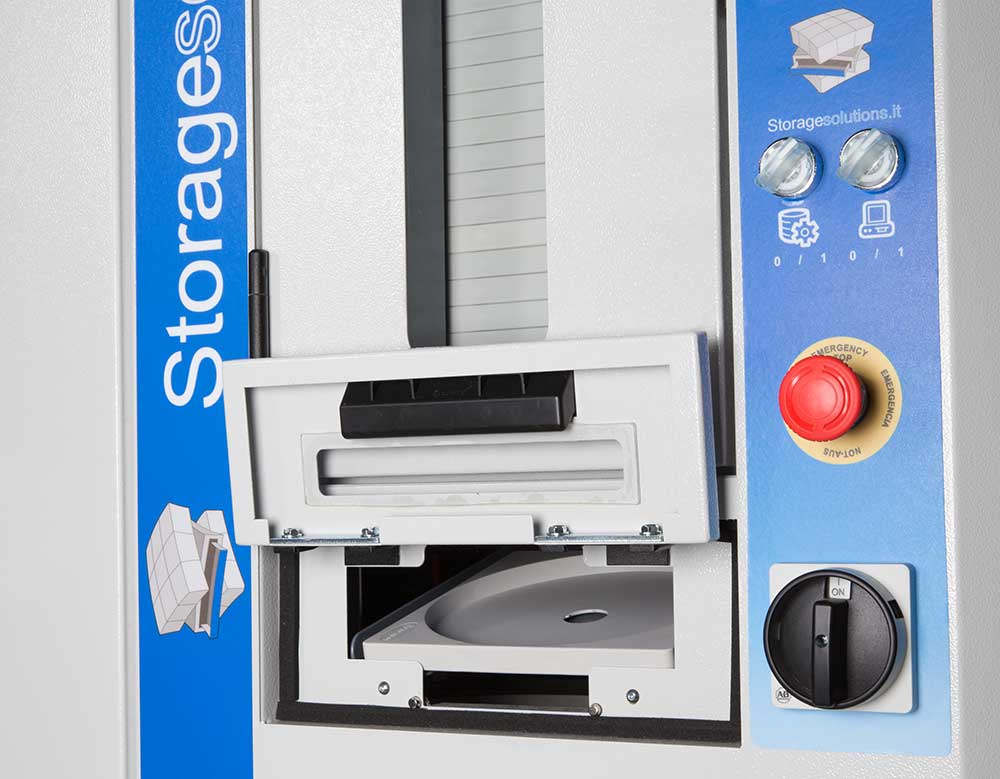

Fast exit: exit system and ultra-fast extraction of reels in record time. Upload and download: up to 27 reels simultaneously.

Fast exit: to extract the rolls also during the loading / unloading stage.
The multiple output Fast Exit allows great flexibility of management. For example, when, in the process of loading / unloading, one urgently needs a reel and has no time to wait for the operation terms.
The store can interrupt the loading / unloading operation, providing priority component of which one is in urgent need, and then continue again with the loading / unloading stage.

Humidity control module plug and play. Like all ISM models, ISM 1100 can also be equipped with the humidity control module. The storage environment is always under control and the moisture level is constantly below 5%.

Accurate calculation of the "Floor Life"

Thanks to the ISM software, the expiration of each component is calculated and plotted with absolute precision. The software prevents use of components whose period of exposure to moisture values ​​higher than 5% has expired. In this way, the expired components can be extracted quickly from the store and brought to the oven for the "baking".


DimensionsW=1.73m; D=0.92m
Weight460kg (without trays) 600kg (with trays)
Moisture controlUp to 8 units

Version ISM 1100 7" H=8mm 7" H= up to 16mm trays
Standard 988 112
Balanced 501 417
H12/16   786
