Powerflow N2 XXL

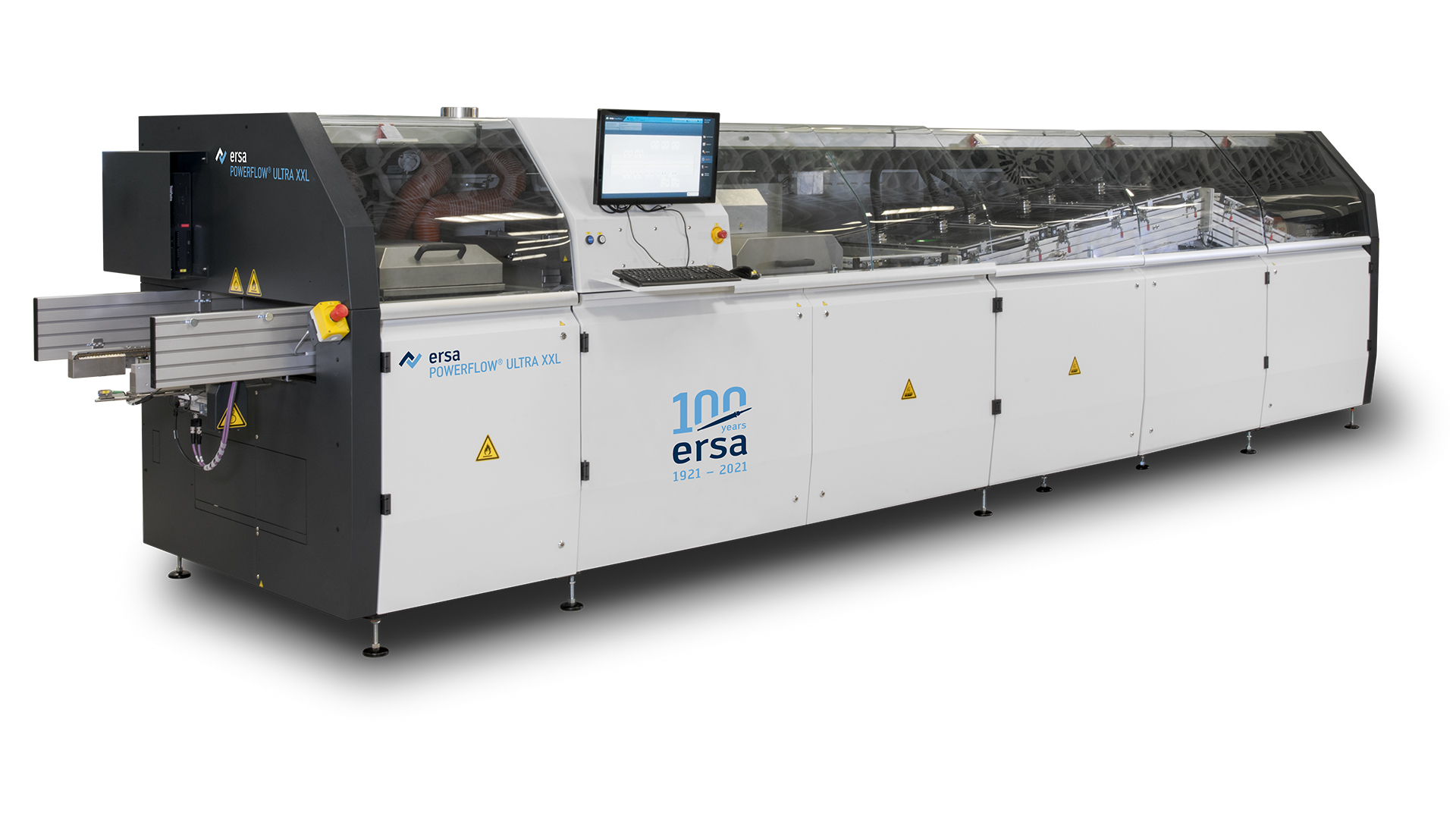

The POWERFLOW N2 XXL is a full tunnel nitrogen wave soldering system based on intelligent control algorithms with a maximum working width of 610 mm.

With the POWERFLOW N2 XXL wave soldering system, Ersa presents the ultimate solution for demanding lead-free wave soldering processes. The high-end system is based on a machine concept with numerous future-oriented and intelligent solutions that provide the user with high added value.

The motor-driven fluxer can selectively flux individual areas of the printed circuit board via the intelligent control system. The modular, individually configurable preheating concept ensures optimum energy transfer. A large number of waveformers enable excellent soldering performance for every application. The robust tunnel construction and the sturdy welded frame underline the long service life and good accessibility of the machine.
  • Maximum working width up to 610 mm
  • Best process reliability even at highest throughput rates
  • Targeted and economical flux application due to programmable flux ranges

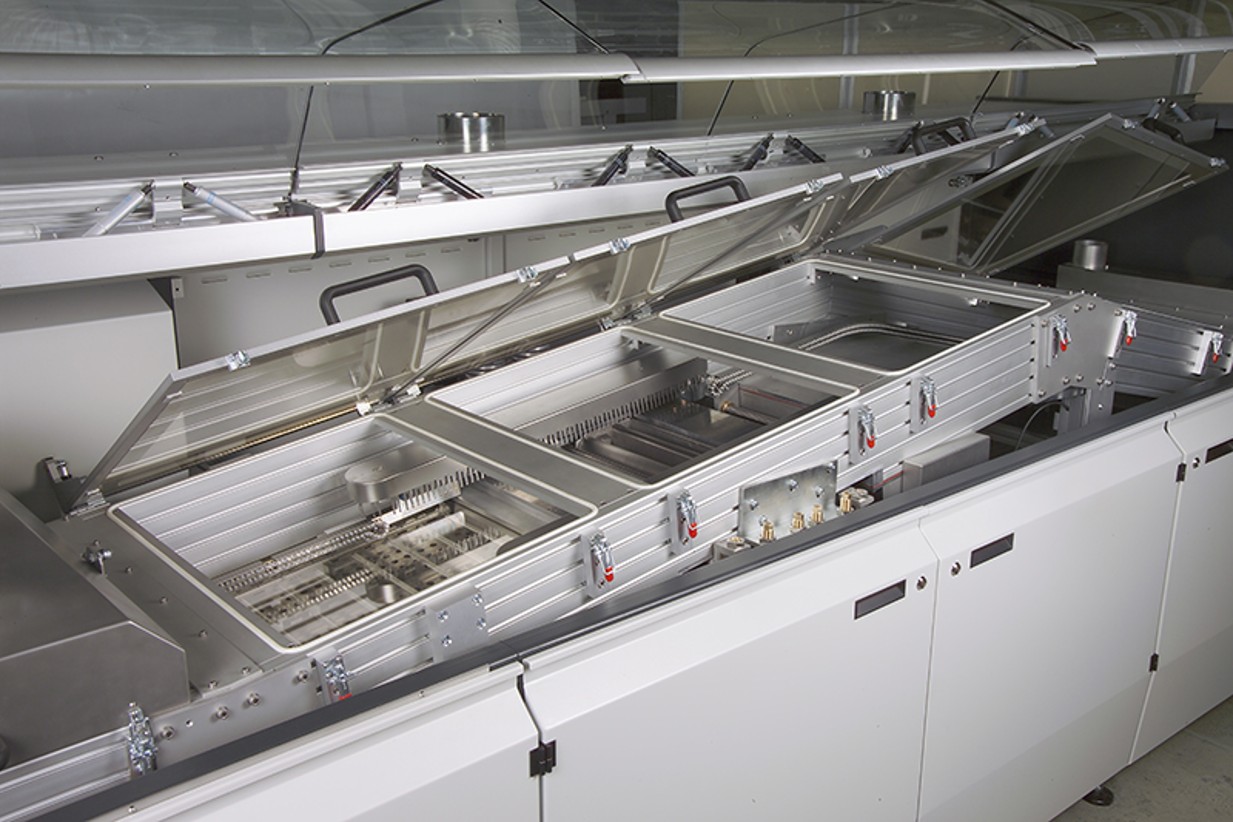

  • Modular preheating configuration for flexible and reproducible heat input

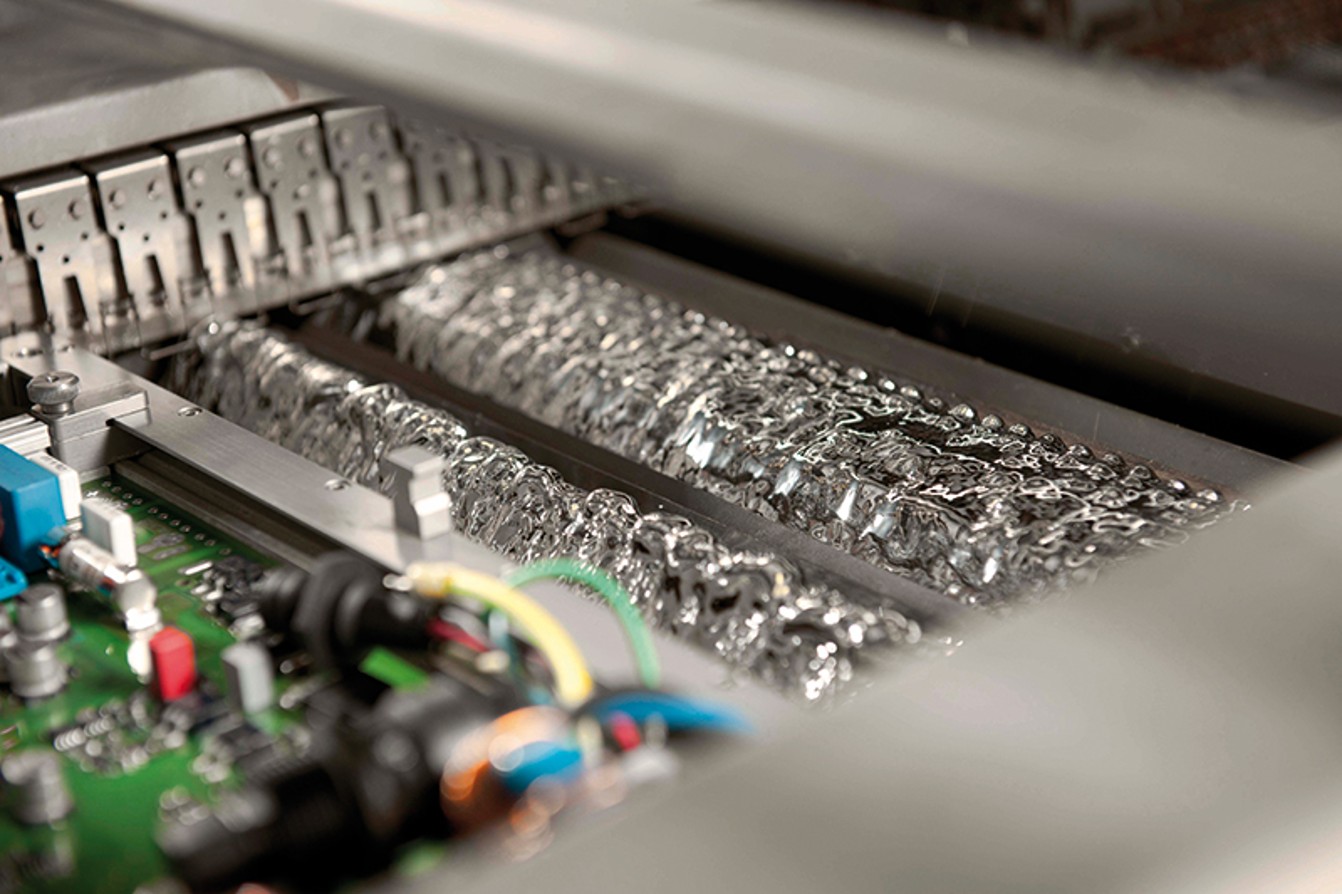

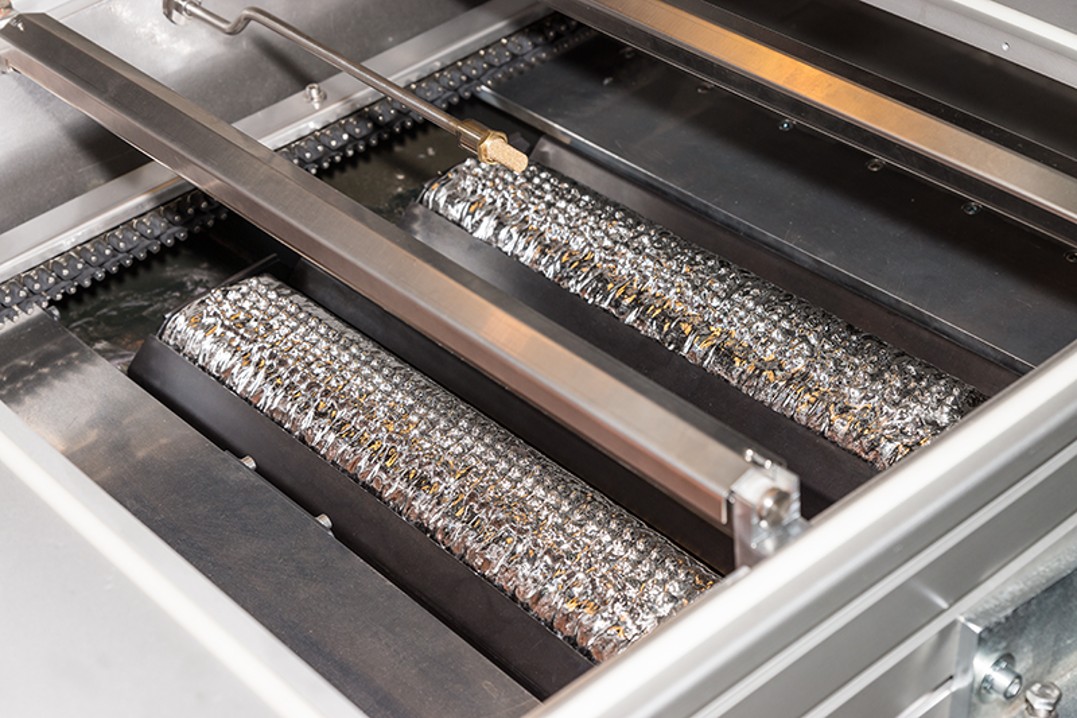

  • Ideal solder nozzle combination for all application requirements
  • Long-lasting cleanliness due to continuous process gas cleaning

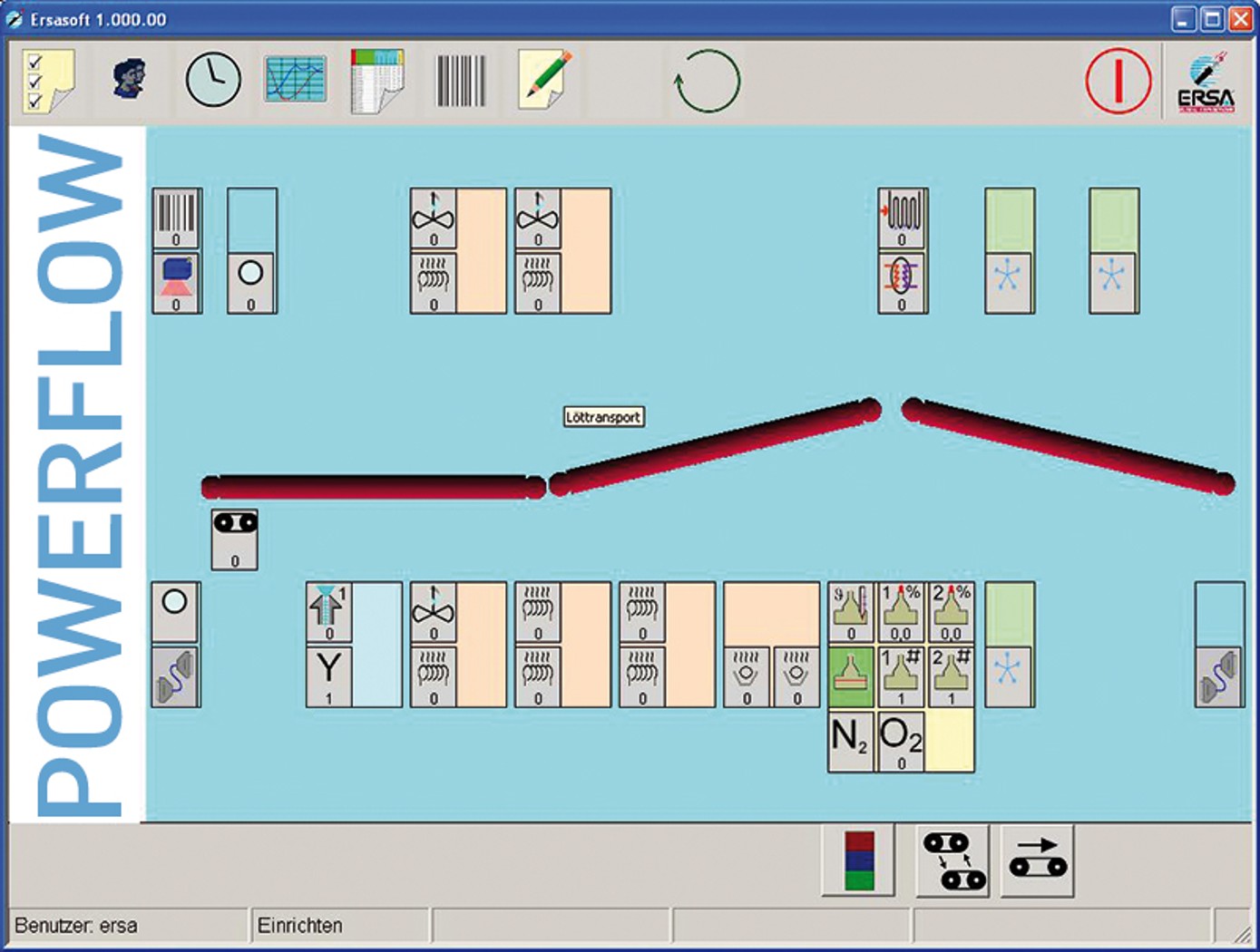

  • Energy and cost efficiency using intelligent heating and nitrogen control algorithms
  • Easy maintenance due to easy access to all machine areas
  • Robust, durable, resilient and automatically lubricated chain conveyor system

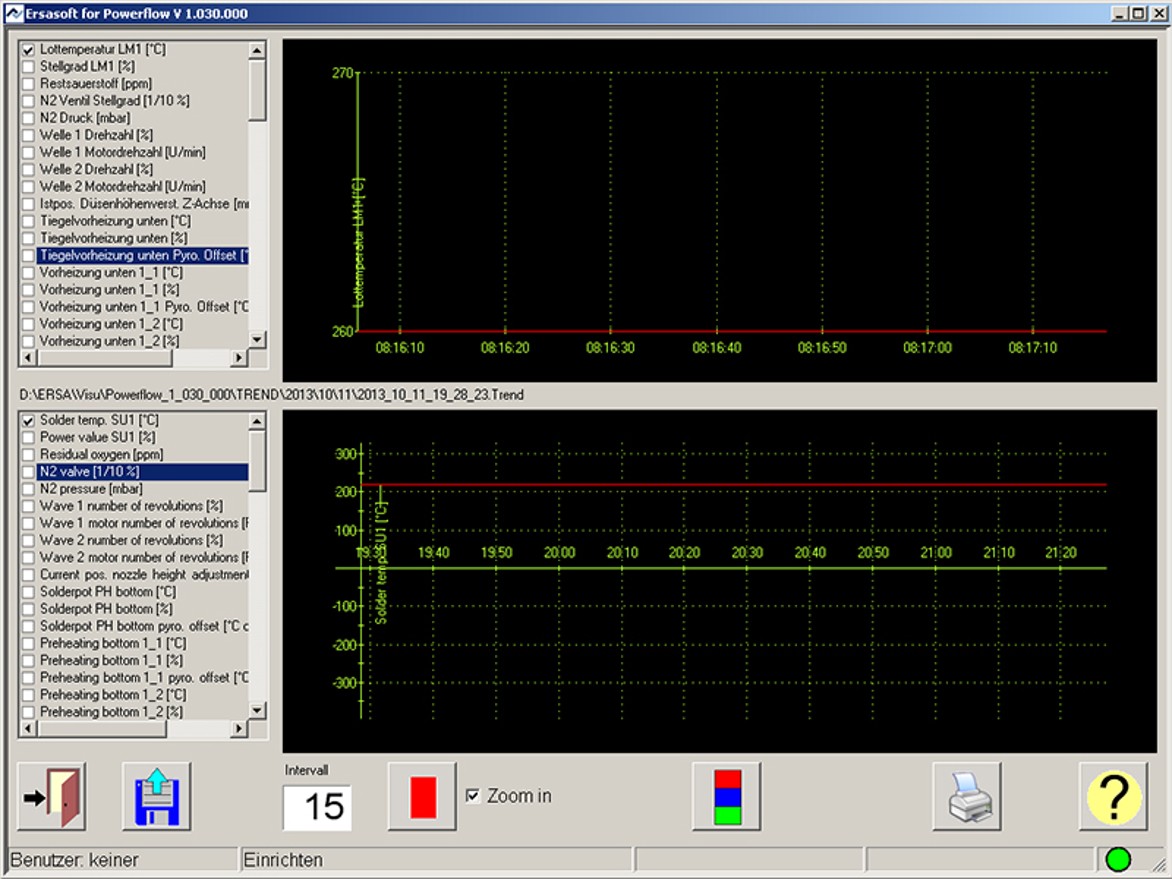

  • Individual trace interface for transparent production processes
  • Universal integration into existing peripheral systems
Dimensions
  • Length of 6450 mm
  • Width approx. 1515 mm
  • Height approx. 1630 mm

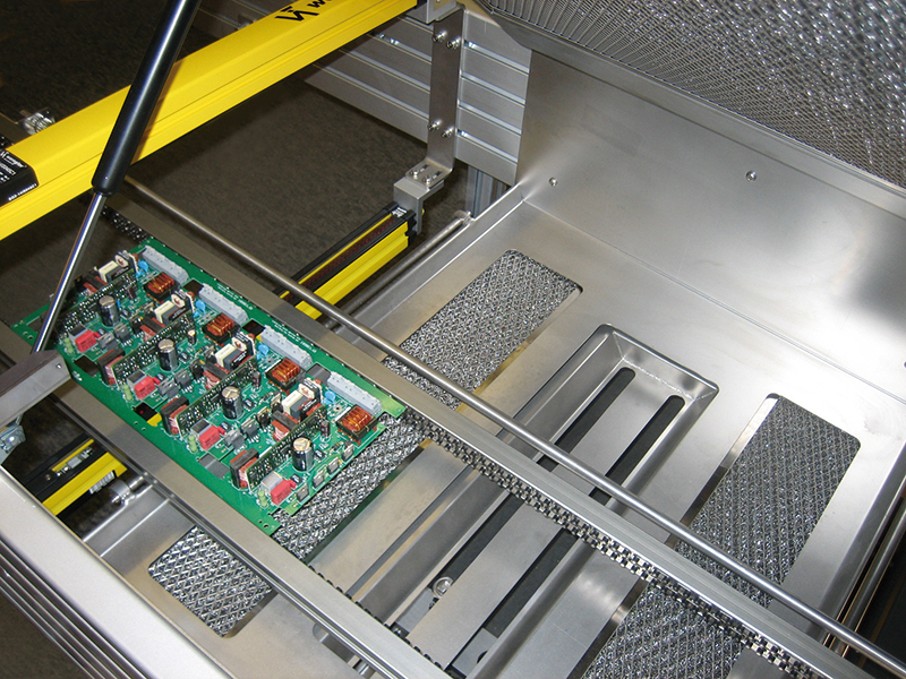

Conveyor systems
  • Finger transport
  • Maximum transport speed 2.5 m/min
  • Maximum working width 610 mm
  • Maximum printed circuit board structures up to 150 mm

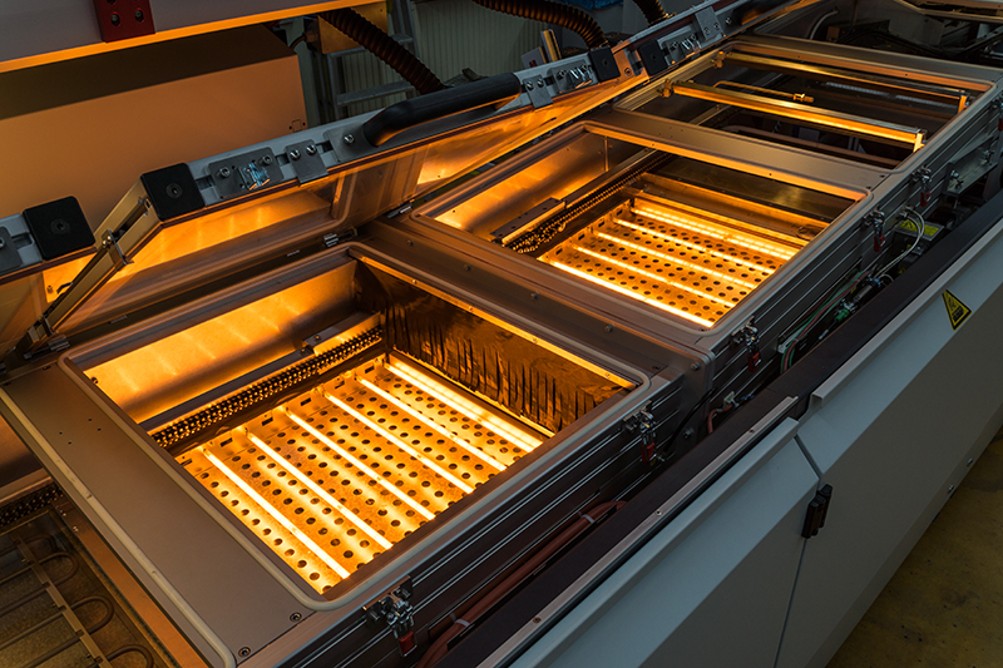

Preheating
  • Preheating length: 2400 mm
  • Heat transfer by convection, medium wave radiation and short wave radiation
  • Individually configurable
