P-PRIMO

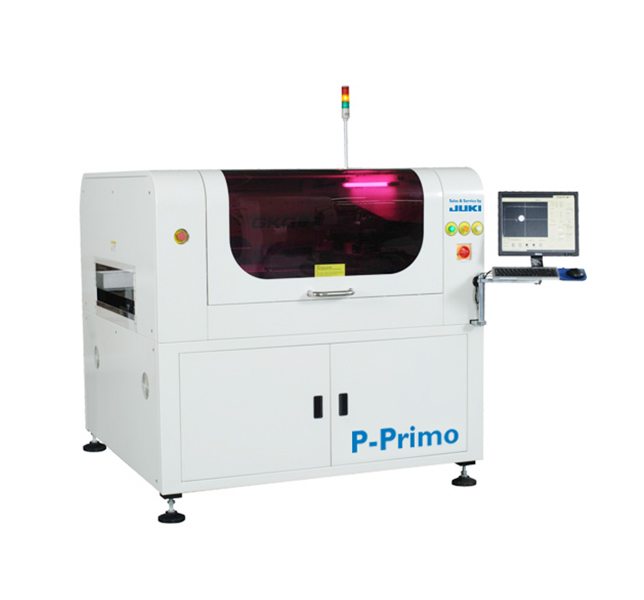

JUKI’s mid-size screen printer P-PRIMO aims at medium-format printed ciruit boards with sizes of up to 850 × 610 mm.

The machine is delivered with a well-structured, easy to use software, which allows the construction of a production programme in less than 8 minutes. Further functions that are included with delivery: automatic stencil cleaning, 2D solder paste inspection, top and side clamping and many more!

Long-Lasting Accuracy
The machine table and squeegee carrier are cast, not welded. Therefore guaranteeing high torsion resistance and ensuring print accuracy to remain unchanged for years.

High Flexibility
P-PRIMO and JUKI Pick and Place machines as well as JUKI Reflow Soldering Ovens enable needs-based, individual SMT line solutions.

Optimised Operation and Maintenance
The straightforward constructed Windows-based operator software enables a fast initial training and swift programme construction. A programme change lasts about two minutes, a new publication approximately ten minutes. Furthermore large covers and service doors allow for easy access to all assemblies.
PCB
PCB Size (L × W)min. 100 × 65 mm / max. 850 × 610 mm
PCB Thicknessmin. 0.4 mm / 8 mm
PCB Margin3.5 mm
PCB Weightmax. 5 kg

Stencil
Frame Size (L × D)min. 737× 737 mm / max. 1,100 × 850 mm
Frame Thicknessmin.12 mm / max. 43 mm
Fixed and InterchangeableFrame Possible

PCB Handling and Transport
Side Clamp
Retractable Top / Side Clamping (for thin / warped PCB)
Adjustable Clamping Pressure
PCB Feed Heightmin. 20 mm / max. 950 mm
Feed / Removal Directionleft / right, right / left, left / left, right / right
PCB Width / ThicknessAdjustment automatic

Print
Number of Squeegee Heads 2, contact pressure separately adjustable
Included SqueegeeLengths 280, 520, 850 mm × 60° Metall
Squeegee ContactPressure 0 – 10 kg
Print Speed5 – 150 mm per second
Special Squeegeeavailable
Other SqueegeeLengths available

Machine Properties and Dimensions
PrintAccuracy ± 25 µm
Cycle Time (without printing and cleaning)< 12 seconds
Dimensions (L × W × H)1590 mm × 1608 mm × 1530 mm
Weight1400 kg
