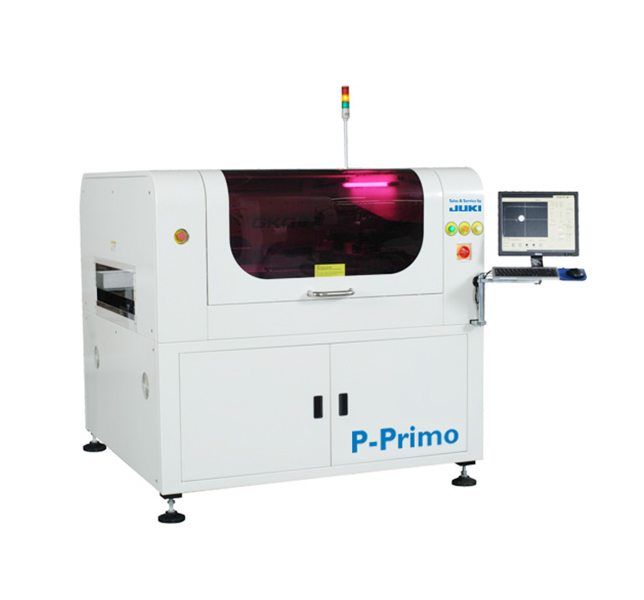

PCB
PCB Size (L × W)min. 100 × 65 mm / max. 850 × 610 mm
PCB Thicknessmin. 0.4 mm / 8 mm
PCB Margin3.5 mm
PCB Weightmax. 5 kg
Stencil
Frame Size (L × D)min. 737× 737 mm / max. 1,100 × 850 mm
Frame Thicknessmin.12 mm / max. 43 mm
Fixed and InterchangeableFrame Possible
PCB Handling and Transport
Side Clamp
Retractable Top / Side Clamping (for thin / warped PCB)
Adjustable Clamping Pressure
PCB Feed Heightmin. 20 mm / max. 950 mm
Feed / Removal Directionleft / right, right / left, left / left, right / right
PCB Width / ThicknessAdjustment automatic
Print
Number of Squeegee Heads 2, contact pressure separately adjustable
Included SqueegeeLengths 280, 520, 850 mm × 60° Metall
Squeegee ContactPressure 0 – 10 kg
Print Speed5 – 150 mm per second
Special Squeegeeavailable
Other SqueegeeLengths available
Machine Properties and Dimensions
PrintAccuracy ± 25 µm
Cycle Time (without printing and cleaning)< 12 seconds
Dimensions (L × W × H)1590 mm × 1608 mm × 1530 mm
Weight1400 kg
