HR 600/2

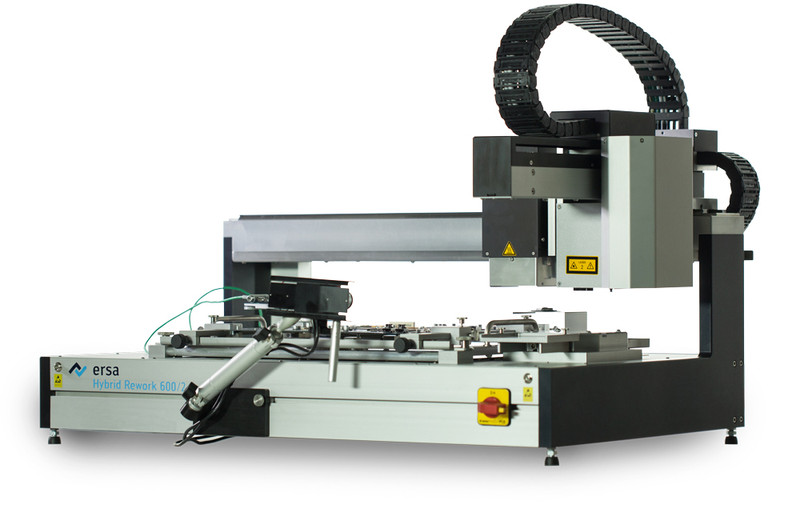

Hybrid Rework System - automatic desoldering, placement and soldering of SMT components

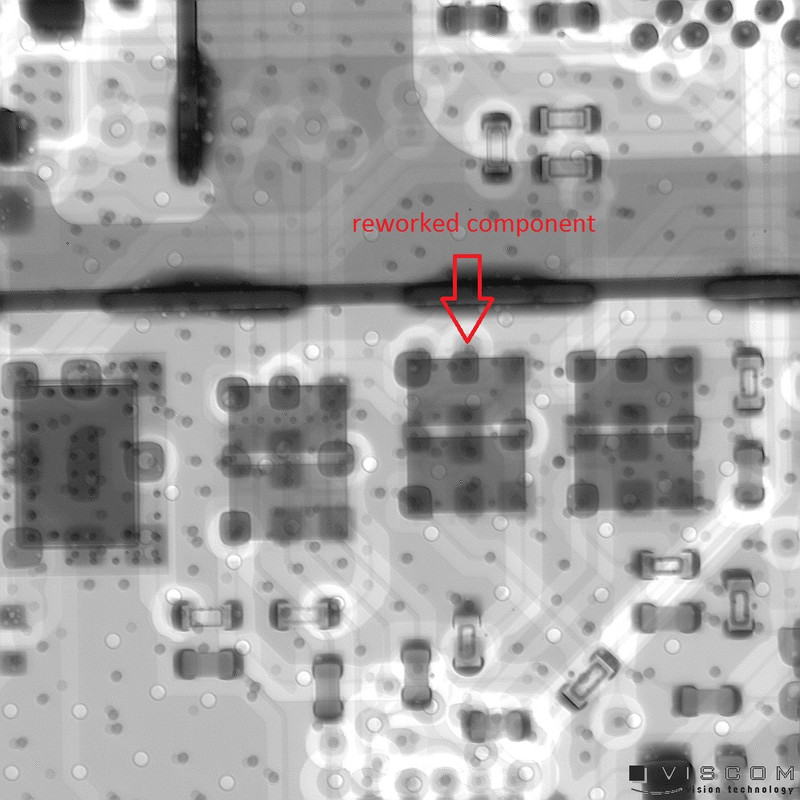

Automatic repair process: Desoldering, placement and soldering of all types of surface mounted devices (SMD): BGA, metallic BGA, CGA, BGA socket, QFP, PLCC, MLF and miniature components with an edge length of up to 1 x 1 mm.

New definition of board repair -  automatic, flexible and process reliable!

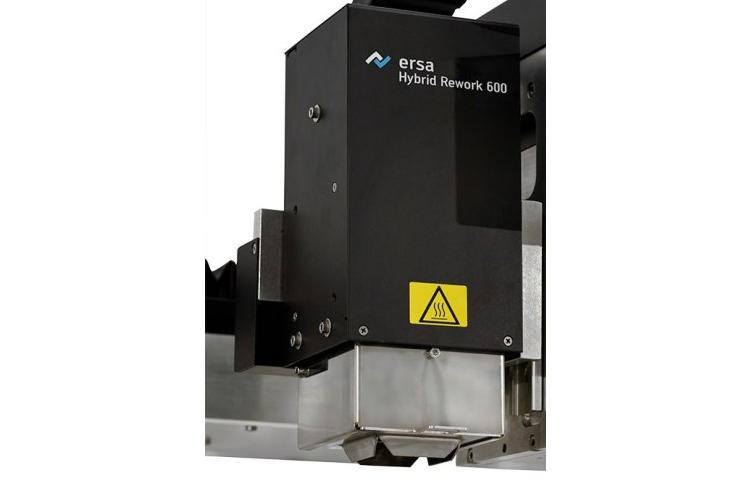

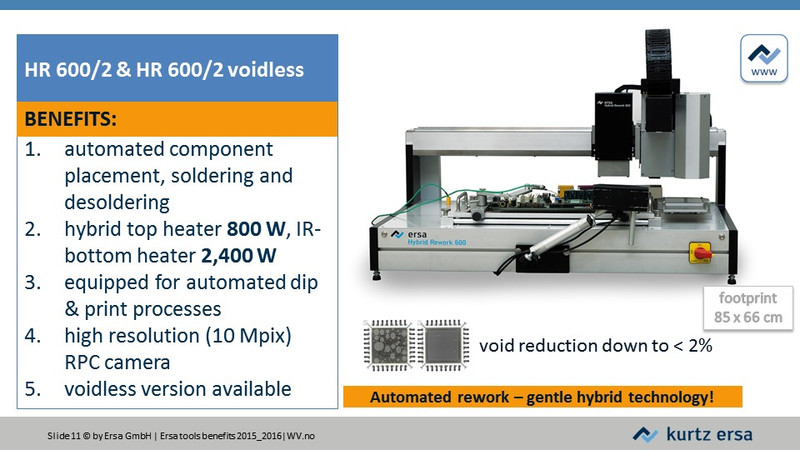

  • Highly efficient 800 W hybrid heating head
  • Homogeneous, large-area IR bottom heating with 3 heating zones (800 W each)

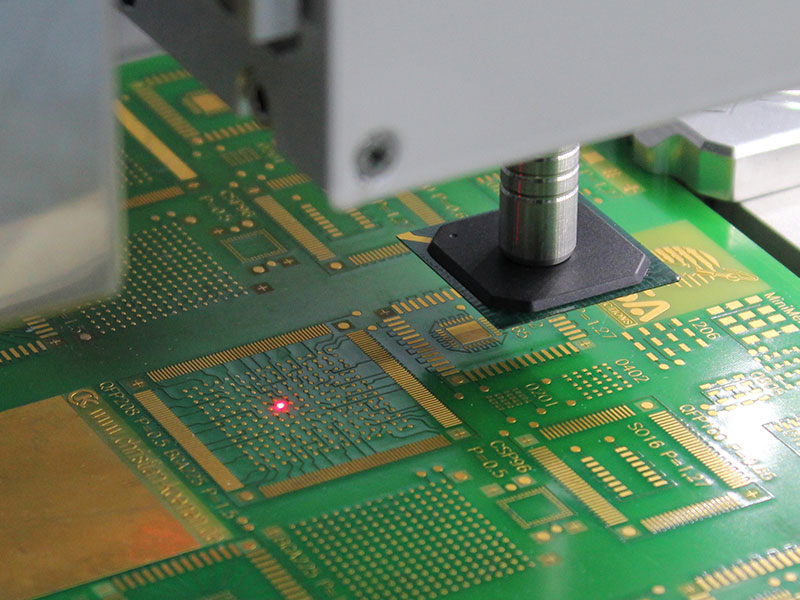

  • Automatic and precise component alignment with the help of machine vision
  • Highly accurate, motor-driven axis system for component placement (+/- 0.025 mm)
  • User independent, reproducible repair results guaranteed
  • Process control and documentation via the operator software HRSoft
  • Fully automatic or semiautomatic operation
  • Suitable for the use of the Dip&Print Station
  • Version HR 600/2 VOIDLESS upon request!
Dimensions (W x D x H) in mm850 x 660 x 620
Weight in kg57
Antistatic Design (y/n)y
Power Rating in W3,200
Nominal voltage in V AC230
Compressed air connection6-10 bar (free of oil), 1/4 inch quick bar connect
Upper heatingHybrid emitter (2 x 400 W), 60 x 60 mm
Lower heatingIR emitter (3 x 800 W), 380 x 250 mm
PCB size in mmfrom 20 x 20 to 390 x 285 (+x)
Component size in mmfrom 1 x 1 to 50 x 50
OperationWindows PC
Test symbol    CE
Optionreflow process camera: 10 MP CMOS USB color camera
 lighting: 2x LED point light source, dimmable
