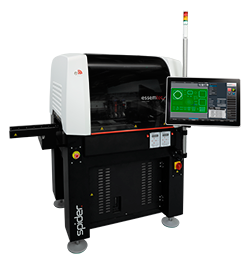

Spider

Smart - sized high speed jet dispenser. Versatile, Accurate, Artistic & Reliable

Introducing - The Spider - State of the art technology, easily integrated in any line. Wide range of dispensing applications such as Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping and more.

Naturally adaptive
Integrate into high speed lines and highly complex dispense applications. Two processes at the same time. Plug and Play for valve change. Piezo Jet Valve - super high speed for low viscosity. Solder Jet, Volume Displacement, Time/Pressure, Archimedean Screw Valve. Full operator support - Automated error analysis & KPI. Training, support and troubleshooting via advanced remote access. Investment protection; all options and heads retrofittable.


dispense technology
  • Up to 2 valves simultaneously
  • 5 different valves, large application range
productivity
  • Up to 150’000 dots/h (with Piezo Jet Valve)
  • Up to 2’000’000 dot/h line mode
small footprint
  • Requires only 1 m² of production floor
  • Machine fits through 90 cm wide door
mineral cast
  • No vibration, symmetrical mineral casting
  • No warpage, no thermal drift
height mapping
  • Mapping of heights using laser technology
  • Compensation of substrate warp / 3D contour
linear motors
  • Fast, reliable double drive linear motors
  • No maintenance, longest lifetime
    Spider
Process Maximum dispensing speed Piezo Jet Valve: 150'000 dots/h
    Pneumatic Jet Valve: 80'000 Dots/h
    Time/Pressure Valve: 28'000 Dots/h
    Archimedean Screw Valve: 24'000 Dots/h
  Dispensing mode Dot, line, curve, interpolated 3D contour
Accuracy Placement XY dots 40 μm (3σ)
  Positioning Z axis 20 μm (3σ)
PCB PCB dimensions 50 x 50 mm bis zu 406 x 305 mm (2 x 2" up to 16 x 12")
Dimensions Machine footprint 880 x 1090 mm (34.7 x 43")
