Fox

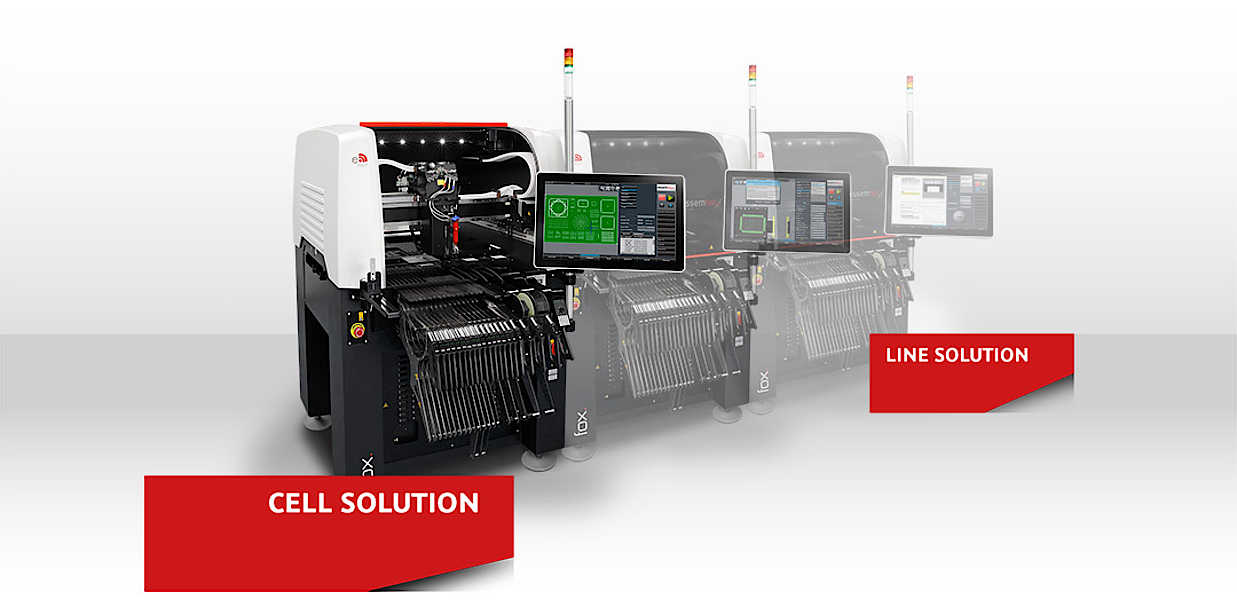

Smart-sized modular PICK-AND-PLACE: Compact, Clever, Simple & Agile

Introducing - The Fox Pack - State of the art technology. Expandable in any direction. The Fox can drive up to 200 feeder, illustrating its dedication to high-mix production. Due to its small footprint and reasonable weight, the machine is ideal for use in limited space production areas even those located on upper floors.

Naturally adaptive

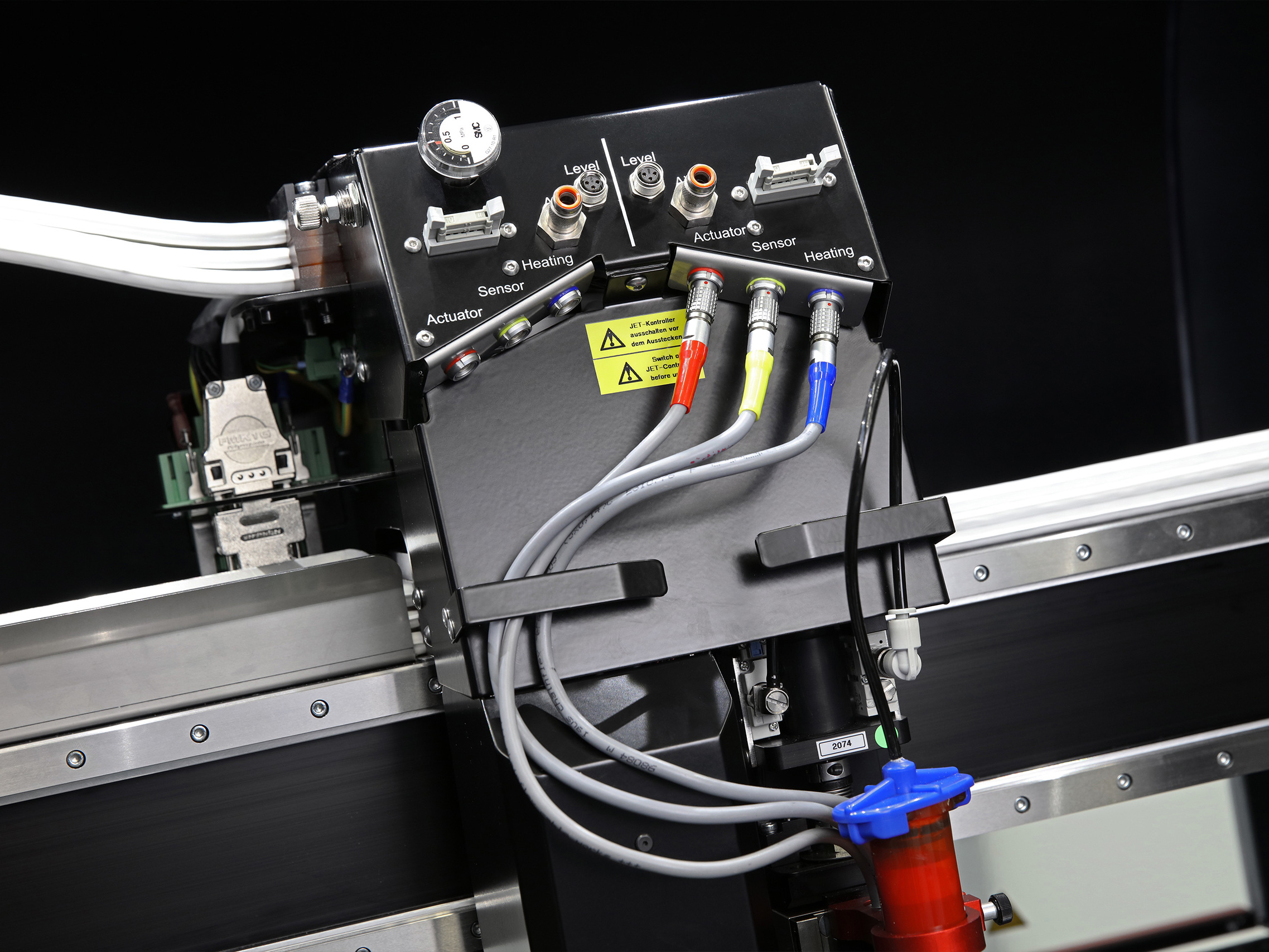

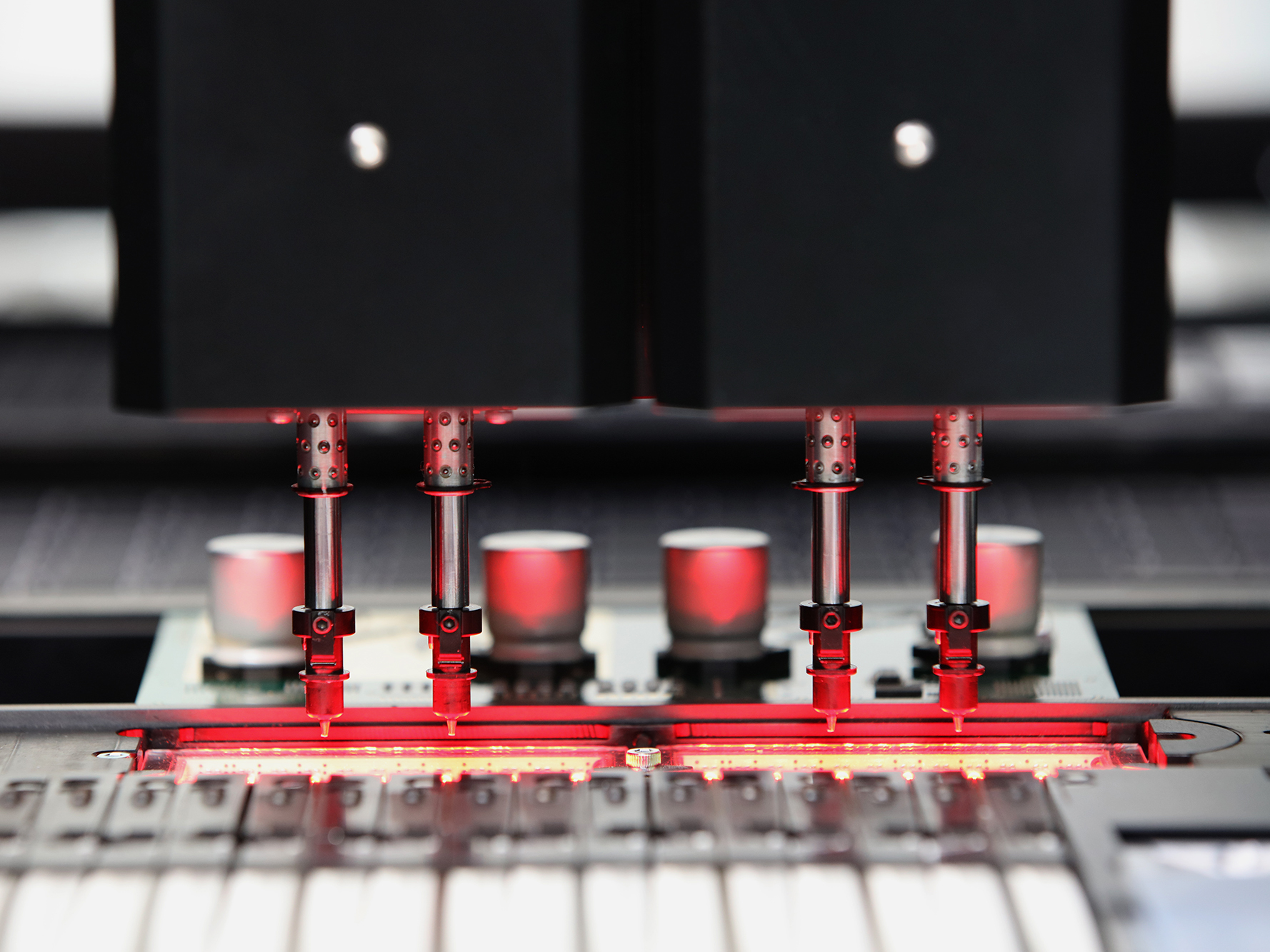

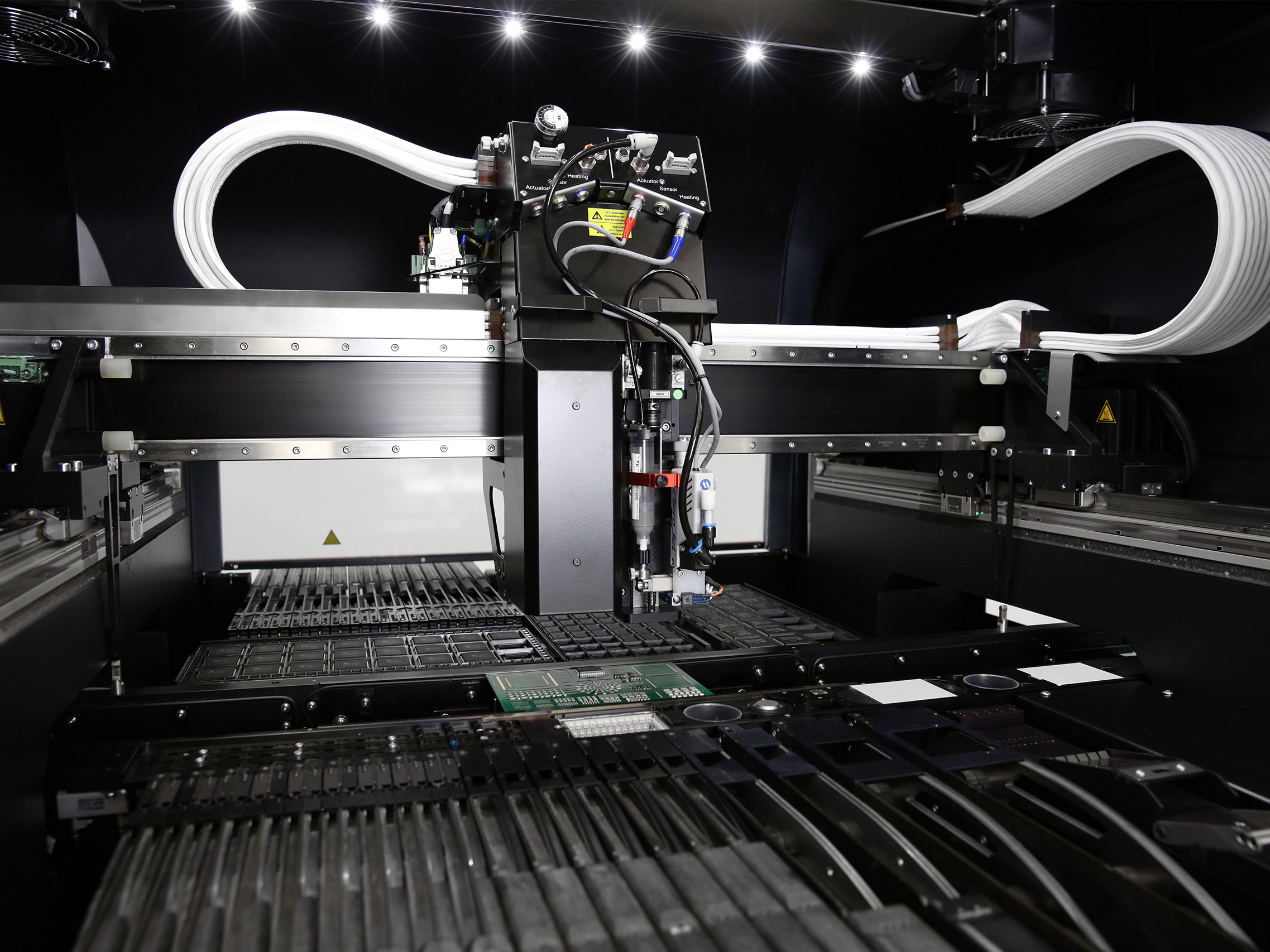

Configurable heads with 1-4 placement-axis. 2,5D and 3D dispensing and jetting, High resolution digital vision system with auto component teach-in and irregular ball recognition. Full operator support - Automated error analysis & KPI. Training, support and troubleshooting via advanced remote access. Investment protection; all options and heads retrofittable. Multi flexible feeder, multi lane cassette or highly accurate single lane feeder. Tape, Stick, Strip, Tray slider. Largest component spectrum; 01005 up to 80 x 80 mm, height up to 25 mm.


combined process

  • Placing & dispensing in single pass-through
  • Jet dispensing of solder paste or glue

productivity

  • Up to 7‘000 – 18‘800 cph per module
  • Up to 49’600 cph per line (3 modules)

small footprint

  • Up to 200 feeder lanes on 1 m2
  • Up to 420 feeder lanes per line

mineral cast

  • No vibration, symmetrical mineral casting
  • No warpage, no thermal drift

quick changeover

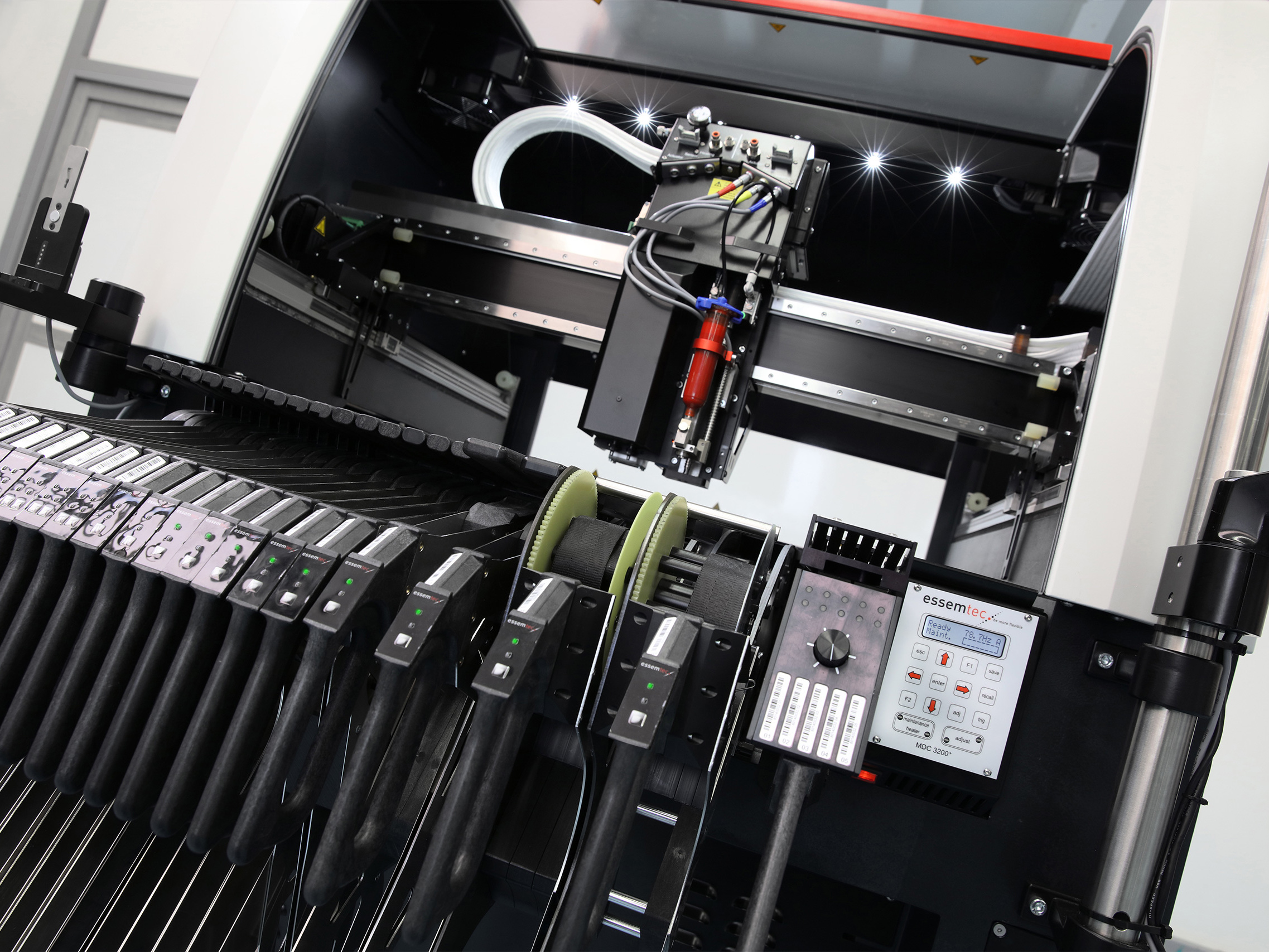

  • Nonstop production, intelligent smart feeder
  • Nonstop feeder and production changeover

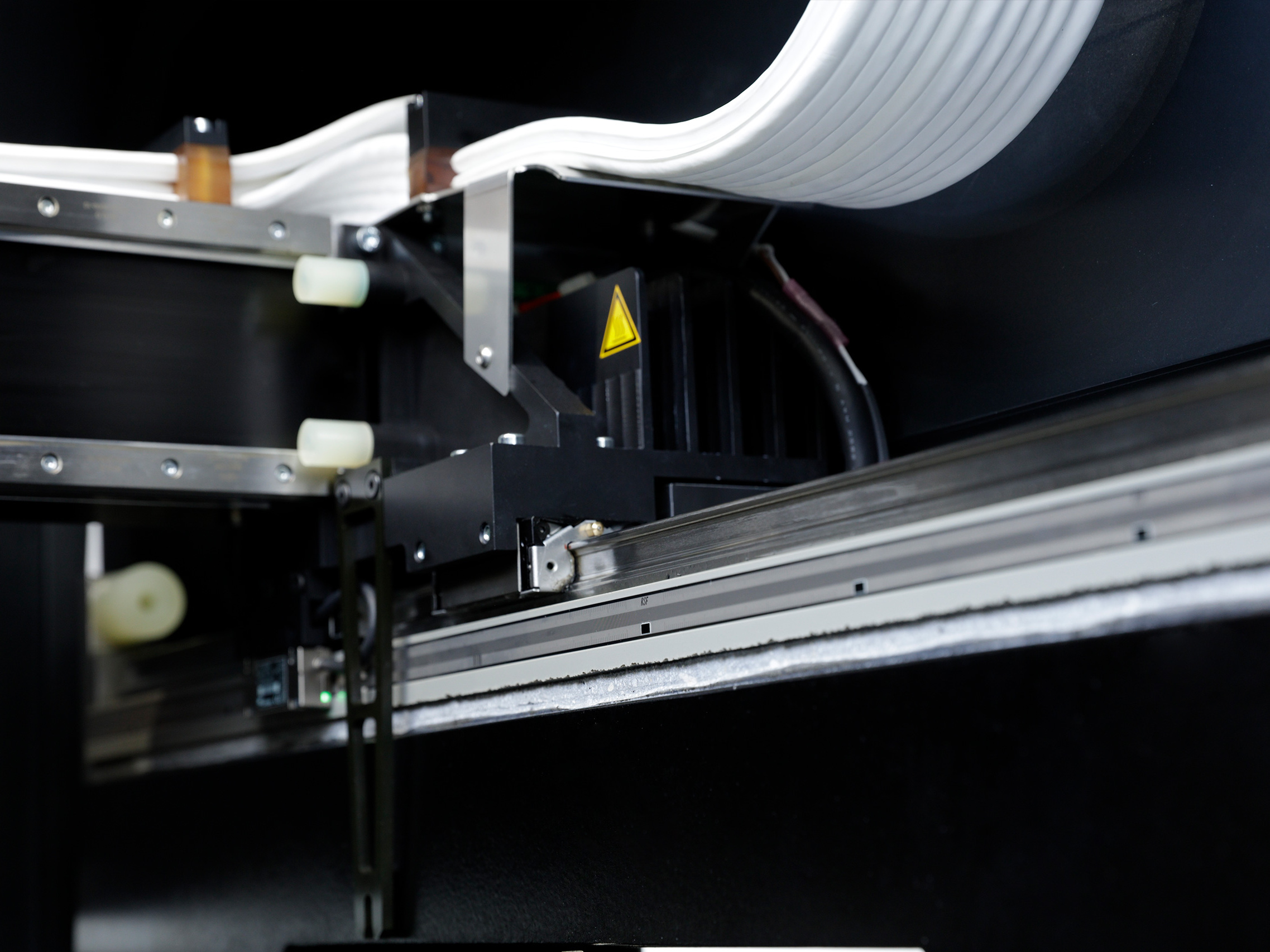

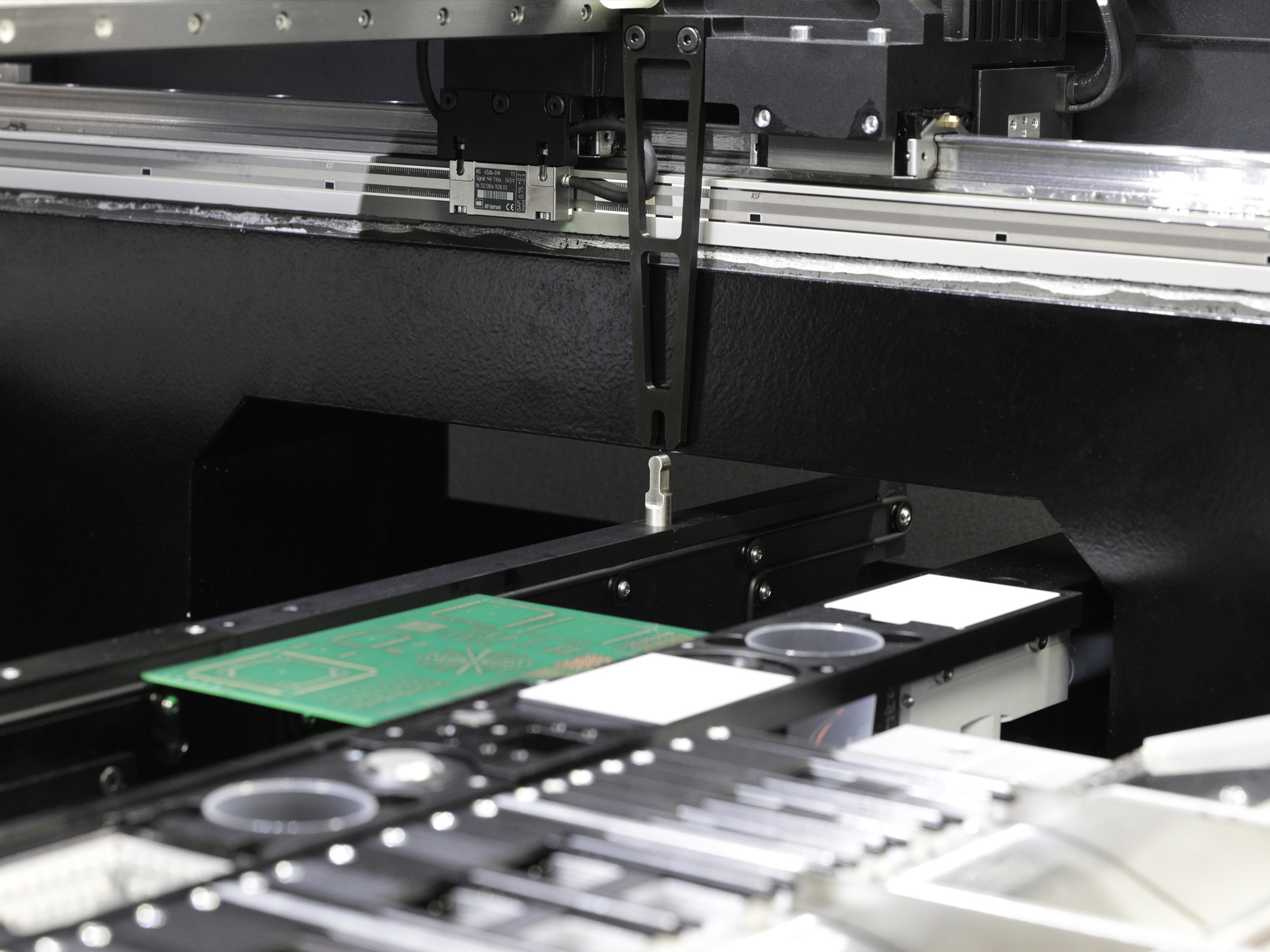

linear motors

  • Fast, reliable double drive linear motors
  • No maintenance, longest lifetime
    Fox Fox2 Fox4
Productivity Optimum placement speed 7'000 cph (1-axis) 12'000 cph (2-axes) 18'800 cph (4-axes)
  Optimum jetting speed - 150'000 Dots/h -
Feeder Feeder Capacity 8 mm Tape 180 (120 inline) 180 (120 inline) 200 (140 inline)
Components Component Size Range   01005 - 33 x 80 mm (80 x 80 mm optional)
Accuracy Placement accuracy (x, y)   50 μm @ 3σ
PCB Max. PCB dimensions   406 x 305 mm (16 x 12")
Dimensions Machine footprint   880 x 1090 mm (34.7 x 43")
