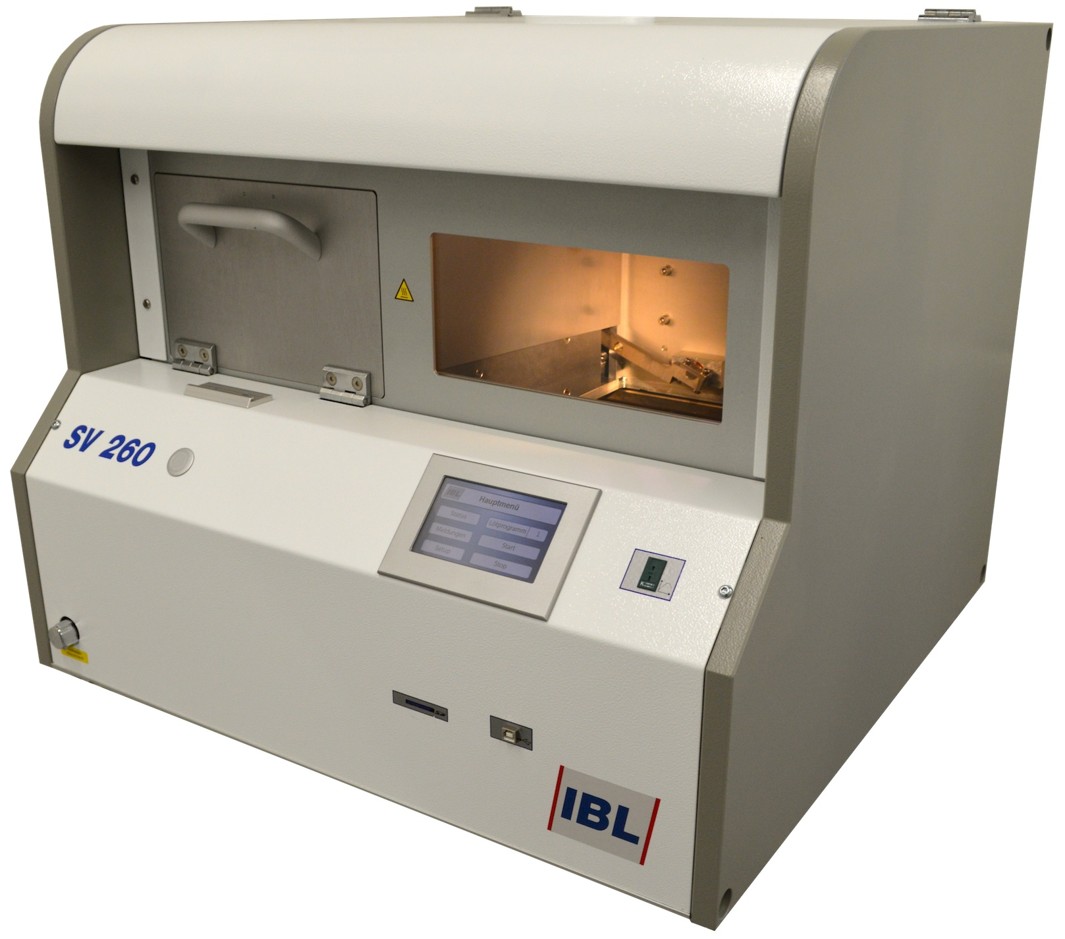

SV260

Optimized for laboratory operation, prototyping, rework and small series production.

The SV260 vapor phase machine is characterized by it‘s 2-chamber design and the easy handling. The machine is perfect for small volume production and offers superior solder quality. Especially she was designed for development and prototype production as well as for soldering BGAs and LGAs. Due to its small footprint, it‘s quickly ready for use.

Parameters and specifications

Table top unit with easy front loading
Low energy and fluid consumption with 2-chamber design and integrated heat exchanger
Easy operation, solder automatic, program storage
Live temperature monitoring without high temperature profiler
Maintenance-free transport system (patented)

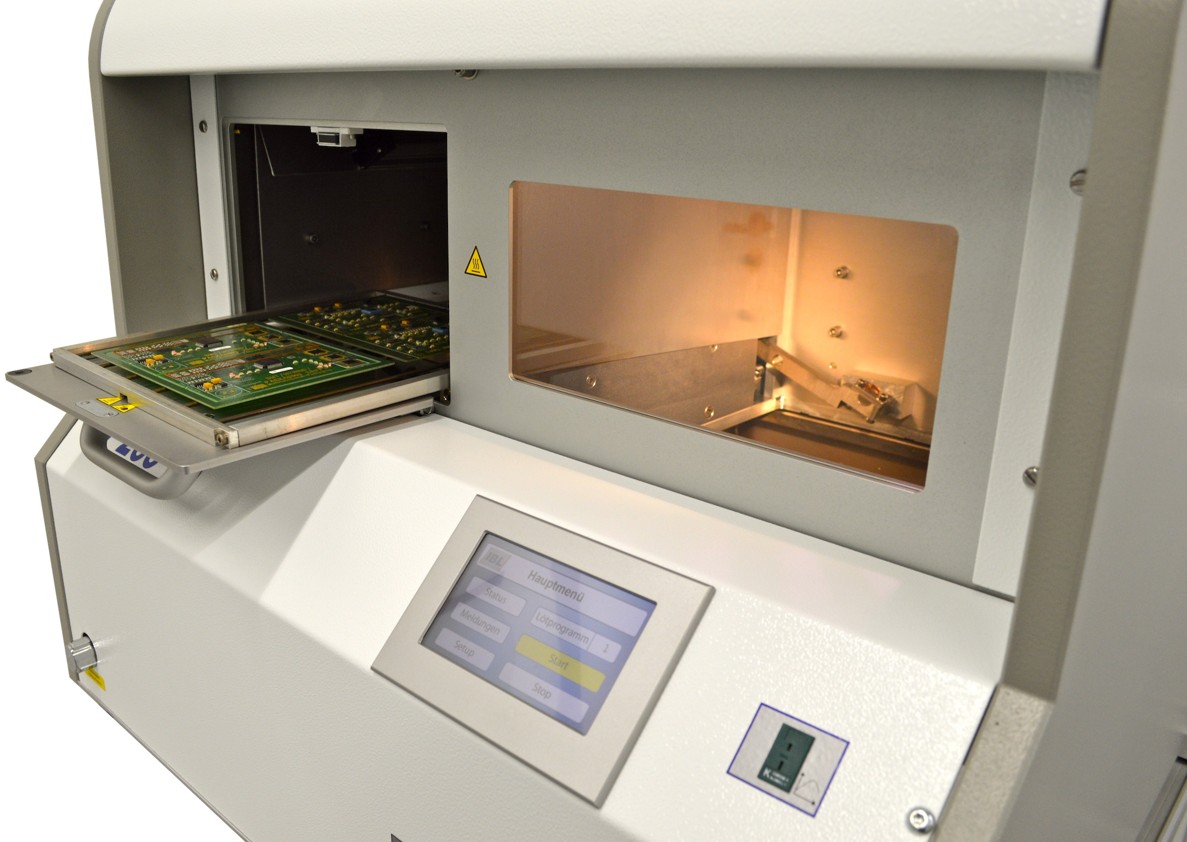

Observation window into process chamber

Length (over all)770 mm
Depth710 mm
Height680 mm

Weight110 kg
Medium agent filling3 kg
