CX 600/800

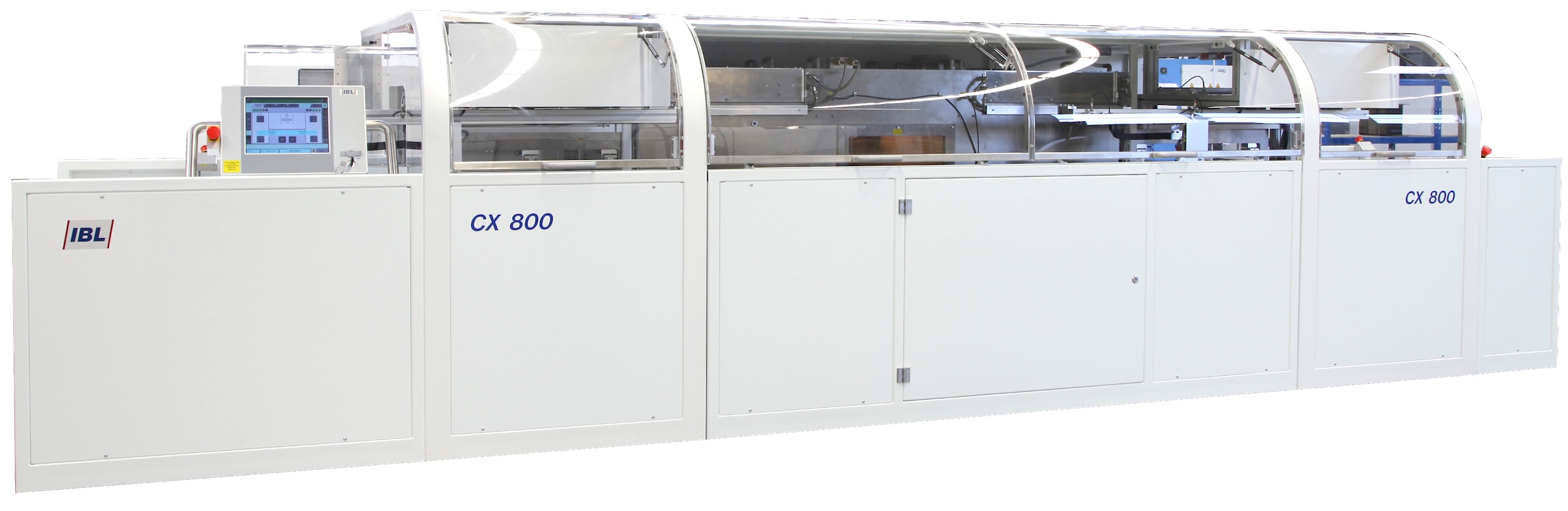

IBL’s CX600/CX800 is fully automated inline vapor phase soldering solution.

The CX machine is a fully automatic inline system that promises high throughput and thus achieves cycle time of less than 20 sec per module. The integrated energy management system incl. standby mode ensures low energy consumption. Since oxygen-free soldering with this machine can be done without any additional use of nitrogen, you save yourself the associated costs.

A further advantage of the CX system is the integrated profile recording as well as the repeatability of the processes by temperature-controlled profiles. The intuitive touch-screen display provides a simple programming of the system. Three separate, internal process chambers with automatic locks ensure lowest medium consumption.

It provides precise, high quality results at medium to high volume throughput. The machines feature a standardized SMEMA interface for easy inline integration.
  • Vapor Phase Inline System for high volume throughput
  • A cycle time of under 20 sec. per board is possible
  • Carrier sizes from 680 x 650 x 80 mm up to 825 x 650 x 80 mm
  • Fully automatic inline operation
  • Two independent stations for loading and unloading of carriers
  • Loading and Unloading conveyors with buffer function
  • Three internal process chambers with automatic airlocks
  • Lowest energy and fluid consumption with Energy management system
  • Highest precision and process quality with patented Soft Vapor Temperature Control (SVTC)
  • Easy one step profile set-up with Intelligent profiling system (IPS)
  • Wide variety of adjustable solder profiles
  • Lead-free and leaded soldering on one machine with one fluid
  • Live temperature monitoring with IBL Software without profiler
  • Traceability and documentation with IBL Software
  • Low maintenance due to Cool Handling (all moving parts outside process chamber)
  • Maintenance-free transport system (patented)
  • Integrated automatic fluid filter system
  • Observation window into process chamber
  • Batch and inline operation available
  • Siemens Interface available
Technical Data CX600 CX800
Length 5.950 mm (inkl. Loading conveyor) 5.950 mm (incl. Loading conveyor)
Depth 1.980 mm 2.390 mm
Height 1.500 mm 1.500 mm
Weight 1980 kg 2090 kg
Loading/unloading level, approx 870 / 950 mm (variable) 870 / 950 mm (variable)
Medium agent filling 40 kg 45 kg
