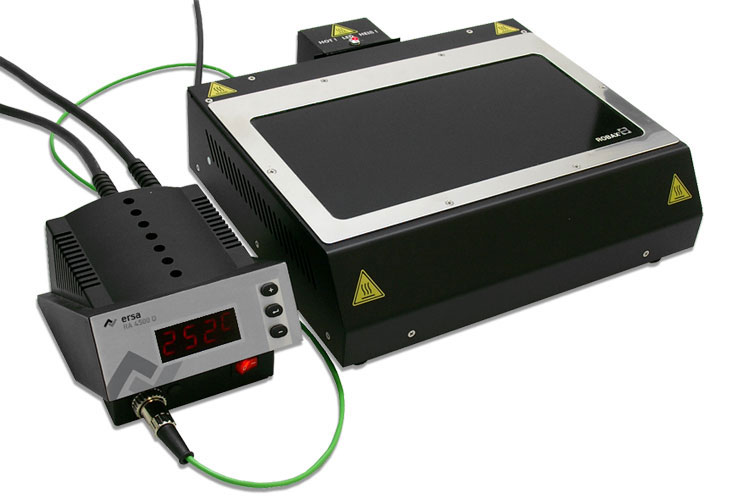

IRHP 200

electronically controlled infraretd rework heating plate with thermocouple and 0RA4500D

The Ersa IRHP 200 is a compact and ergonomically designed heating plate to preheat all SMD components as well as assemblies and substrates during the hand soldering process. It can also be used to reflow solder one-sided SMD boards and for reballing BGAs.

The IR emitters‘ even heat distribution ensures non-contact, gentle heating of the assembly. Thus the IRHP 200 is perfectly suited for lead-free applications.
The control station can be placed independently from the heating plate on the workbench in an ergonomically favorable way.

Mild preheating in hand soldering and rework!
  • non- contact preheating of PCB assemblies during lead-free handsoldering
  • preheating / drying of SMD components
  • active heating area 135 x 260 mm
  • safety galss cover of the heating elements
  • reflowing of single sided PCBs (prototypes
  • hardening, curing and drying of pastes, varnishes, pastes and glues
  • continuously controllable heaing plate
  • "ATTENTION hot!" - safety signal also on switched off device
heating plate
Dimensions (W × D × H) mm300 × 250 × 90
Weight in kg3,7
Power Rating in W800
Nominal voltage in V AC230
Test symbolCE

control unit RA4500D
Weight in kg1,4
Nominal voltage in V AC230
Power Rating in Wswitches up to 3.000 W ohmic load
Digital display (y/n)y
Test symbolCE, VDE
