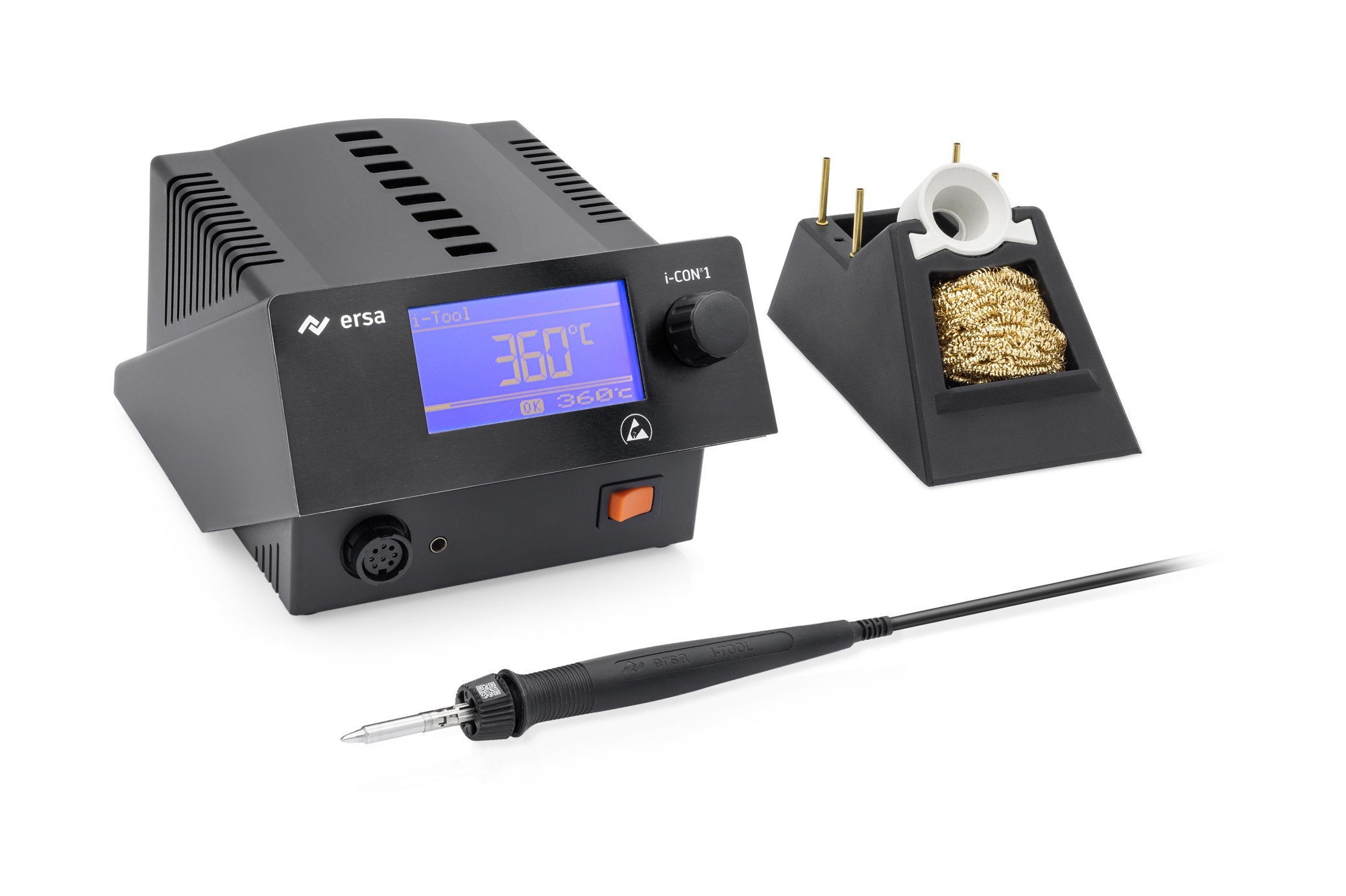

i-CON 1

electronically controlled soldering station, 80 W

The i-CON 1 suitable for all SMT und PTH soldering tasks in electronic production, rework and R&D. The powerful i-TOOL provides sufficient energy for high mass solder joints; a wide range of i-Tips allows to quickly adapt the tool to the current soldering task.

The professional soldering station for industry, test area and R&D!
  • Digital soldering station with ergonomic and powerful 150 W i-TOOL soldering iron
  • Motion sensor in the hand piece for energy and tip saving standby mode
  • Easy operation - intuitive one touch push button and large multifunctional displays
  • Optical information when the optimal process window is reached
  • Available with interface to solder fume extraction unit, heating plate and PC
  • Antistatic design
Dimensions (W x D x H) in mm150 x 175 x 105
Weight in kg3,0
Antistatic Design (y/n)y
Power Rating in W80
Nominal voltage in V AC230
Secondary voltage in V24
Heat up time in sec9
Temperature range in °C150-450
Digital display (y/n)y
Test symbolCE, VDE
