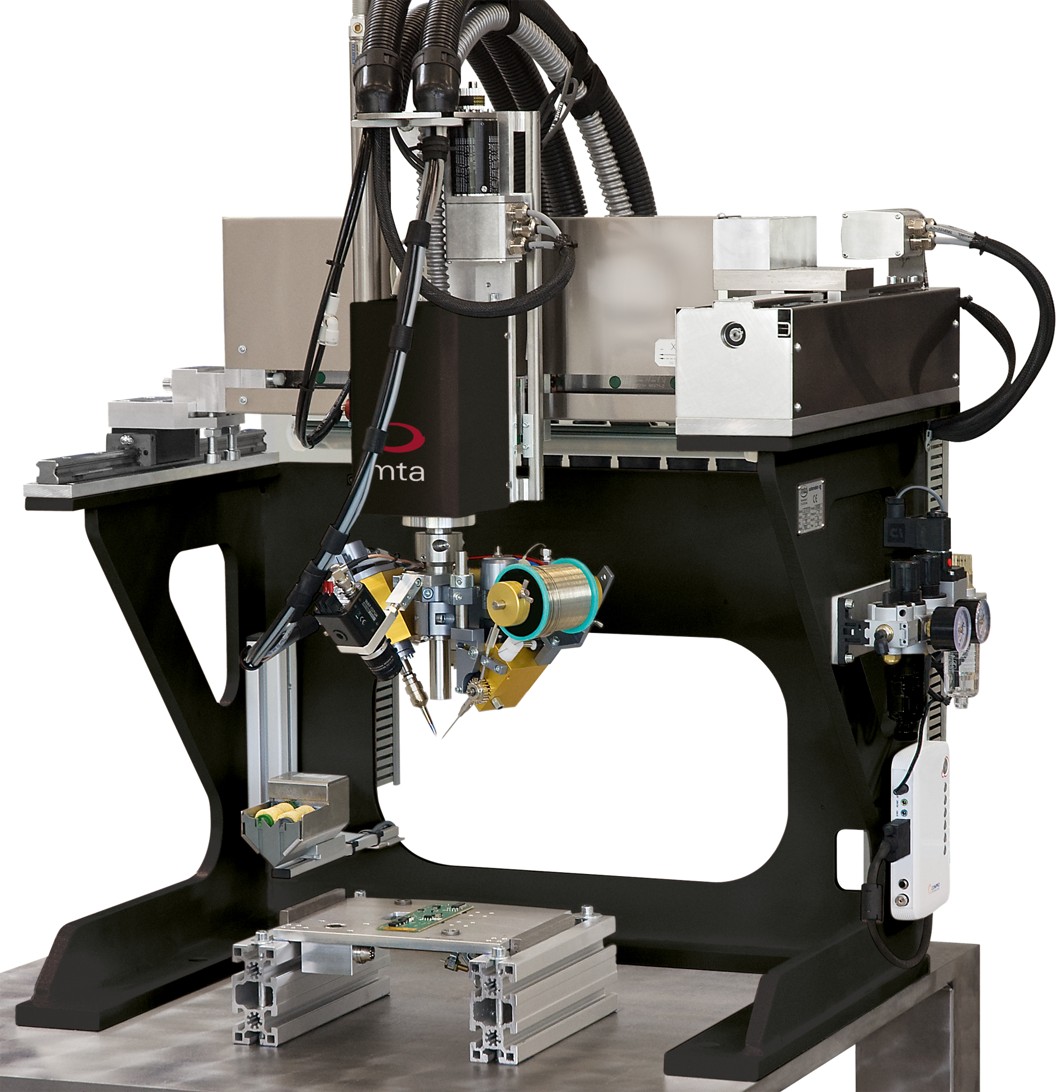

OEM robot for integrator

The PC controlled OEM standard robot can be used for semi or fully automatic operations of selective point to point soldering from above.

Thanks to its unique concept, the OEM robot is delivered to the system’s manufacturer with a process guarantee.

The OEM robot can be equipped with all the established mta® soldering techniques, except for the mta® PowerLas laser.

The 3 or 4 axes of the OEM robot are fully programmable through the mta® MotionEditor software including soldering parameters such as:

  • Solder quantity, wire feed speed, preheating/postheating times, automatic tip cleaning cycle intervals and other parameters for each soldered point.

With its flexible and modular concept, the OEM robot can be fully and easily integrated into a production line (no safety guarding included).

MTA (Unitechnologies)
Working area300 × 300 × 200 mm
 500 × 500 × 200 mm
Cartesian robot3 or 4 axes (option: T axis)
Shift of axespoint by point
Positioning repeatability±20 μm
SpeedX and Y<250mm/s, Z <150mm/s, T <=3.14 rad/s
Electronic controlindustrial PC
Operating systemWINDOWS
ProgrammingHMI Windows oriented
InterfacesEthernet / USB port / Serial port
Execution modeStandalone or slave with PLC via I/O interface
X, Y and Z axes actuationDC Brushless motors; R Axis: step by step motor
Power supply230/115V – 50/60Hz
Power consumption1.1 kVA
Air pressuremax. 6 bar
Dimensions756 x 585 x 933 mm
Weight~150 kg
