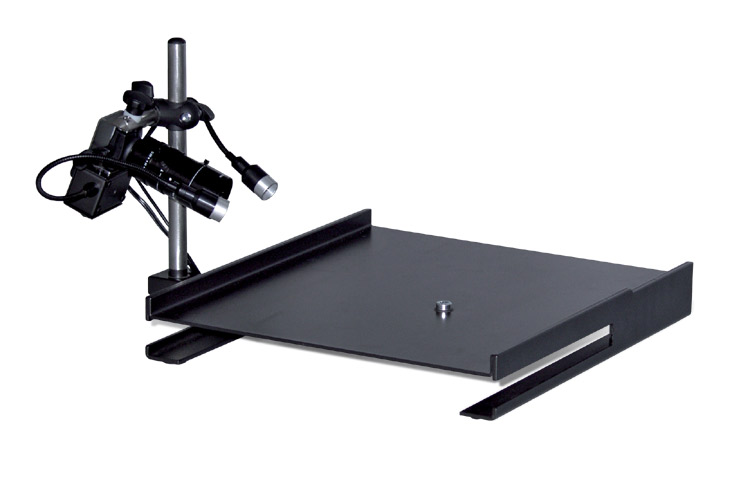

RPC 500

Reflow Process Camera with 70 fold enlargement for process vision

The solder joint in the centre - Reflow Process Camera with macro zoom lens
  • Optical control during the rework soldering process
  • High quality "CMOS USB 2.0" camera
  • 70x optical macro zoom lens
  • LED dual spot lighting with flexible arms and variable intensity
  • Central 180° swivel arm
  • Stable, non-slip foundation
  • Suitable for Rework Systems IR 550, HR 100 and HR 200
Dimensions (W x D x H) in mm400 x 440 x 290
Weight in kg9,5
Antistatic Design (y/n)y
Nominal voltage in V AC100 – 240 V, 50/60 Hz
Usable working distance (typ.)220
Zoom factor7 - 70 x
