UC10

The basis of UC is ultrasonic convertor, which is attached to the bottom of cleaning tank. Ultrasonic convertor is a source of mechanical and acoustic energy that is transferred to the bottom of the cleaning liquid and it makes an ultrasonic field.

As a result of changing acoustic pressure and underpressure in liquid occurs so called cavitation and consequently the bond between dirt and cleaned object‘s surface is disrupted.
Because cavitation occurs in the entire volume of liquid, intensive cleaning is realized also, with other method of cleaning poorly accessible places, in corners, hollows, etc.

Parameter ultrasonic cleaner Digital controlled - UC10D  Analog controlled - UC10A
Supply voltage / frequency 230V ±10% / 50-60 Hz
Maximum US power see the table
Ultrasound frequency listed on the label (standard 40 kHz)
IP code IP 23
Temperature work range +5°C to +40°C
Timer (adjustable) 30 sec to 99 min 30 sec to 30 min
US power regulation 50% to 99% no
Funkcion DEGAS * yes no
Heating of cleaning liquid yes no
Max. adjustable temperature of liquid 70 °C no

Flammable cleaning liquid can not be use in cleaners UC10.

Type

Capacity (l)

Generator power (W)

Healing power (W)

UC10D09W

9

250

750

UC10D13W

13

300

750

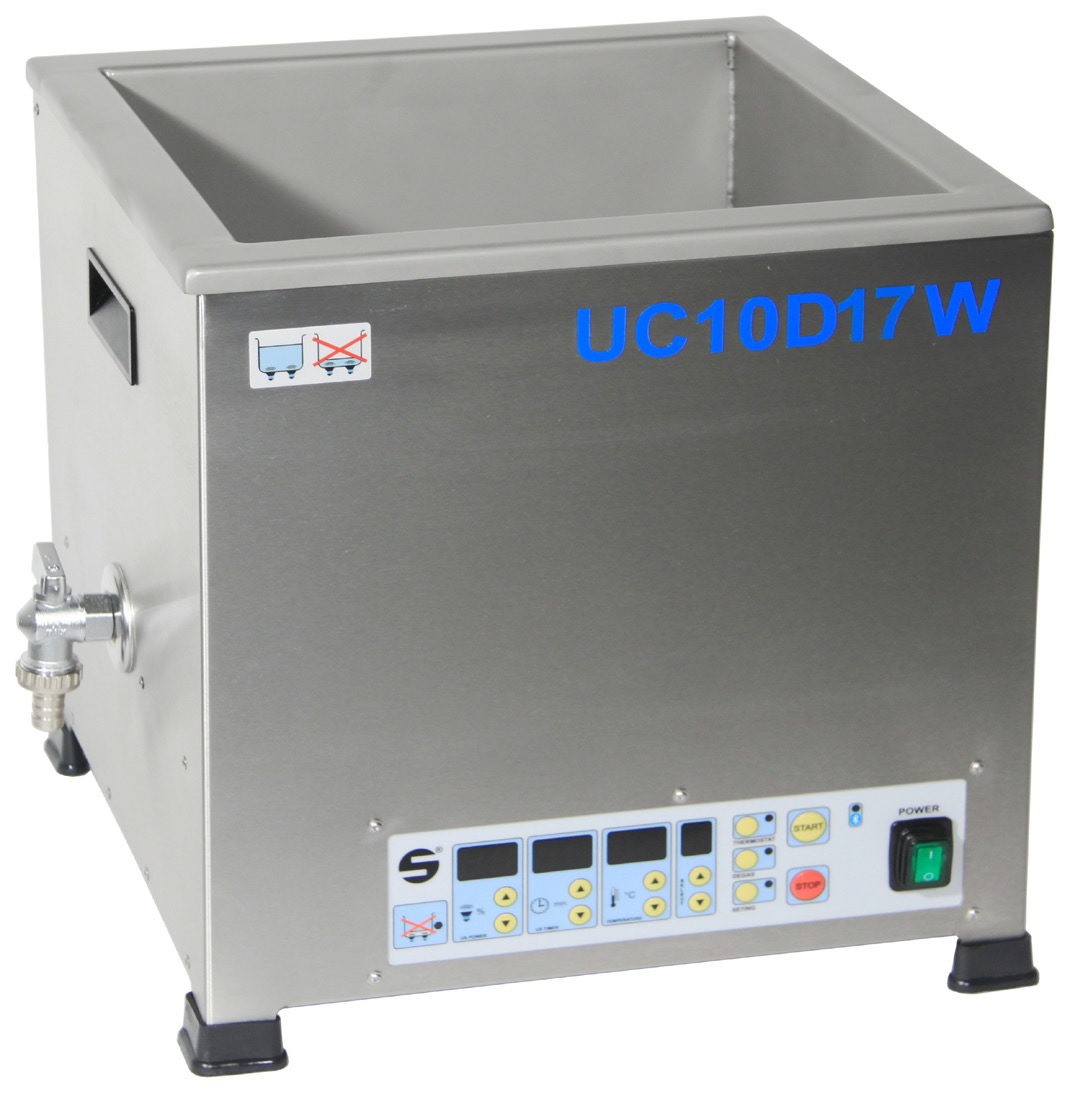

UC10D17W

17

350

1500

UC10D20W

20

400

1500

UC10D27W

27

500

1500

UC10D48W

48

600

1500
