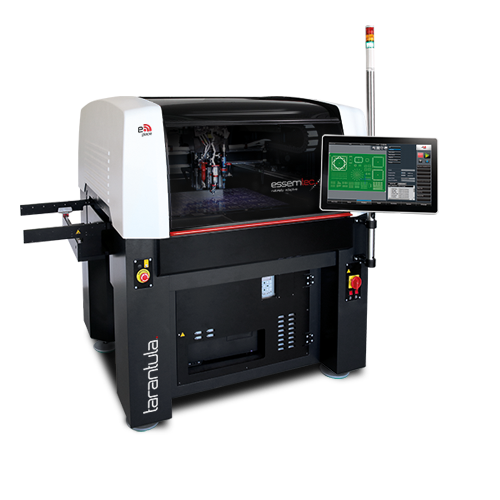

Tarantula

Relentless all-terrain jet dispenser: Precise, Strong, Adaptive & Versatile

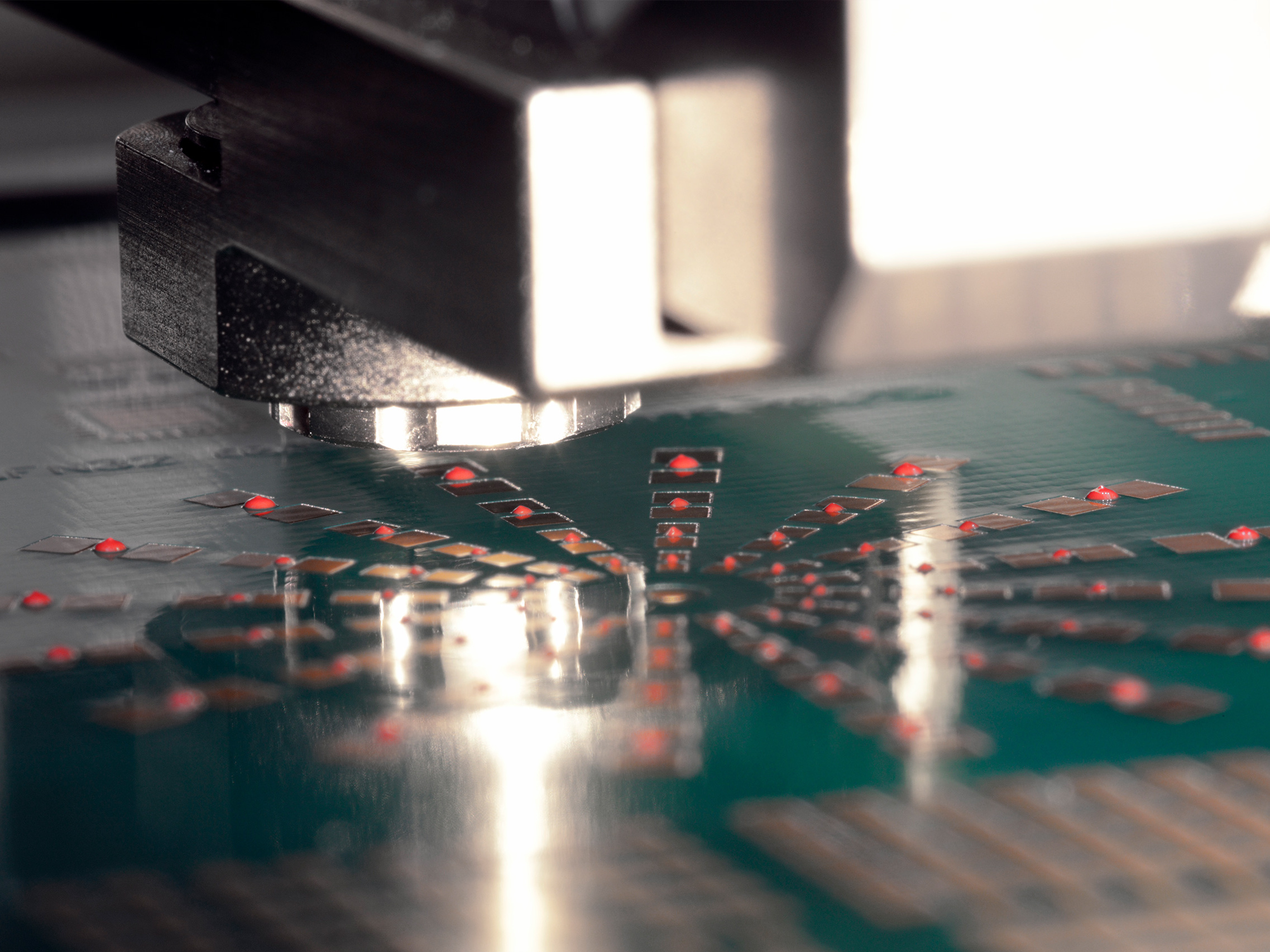

Introducing - The Tarantula - State of the art technology, easily integrated in any line. Wide range of dispensing applications such as Solder Paste and SMT Glue, LED Encapsulation, Silver Epoxy, Dam and Fill, Underfill, Cavity Fill, 3D Dispensing via laser height mapping and more.

Naturally adaptive

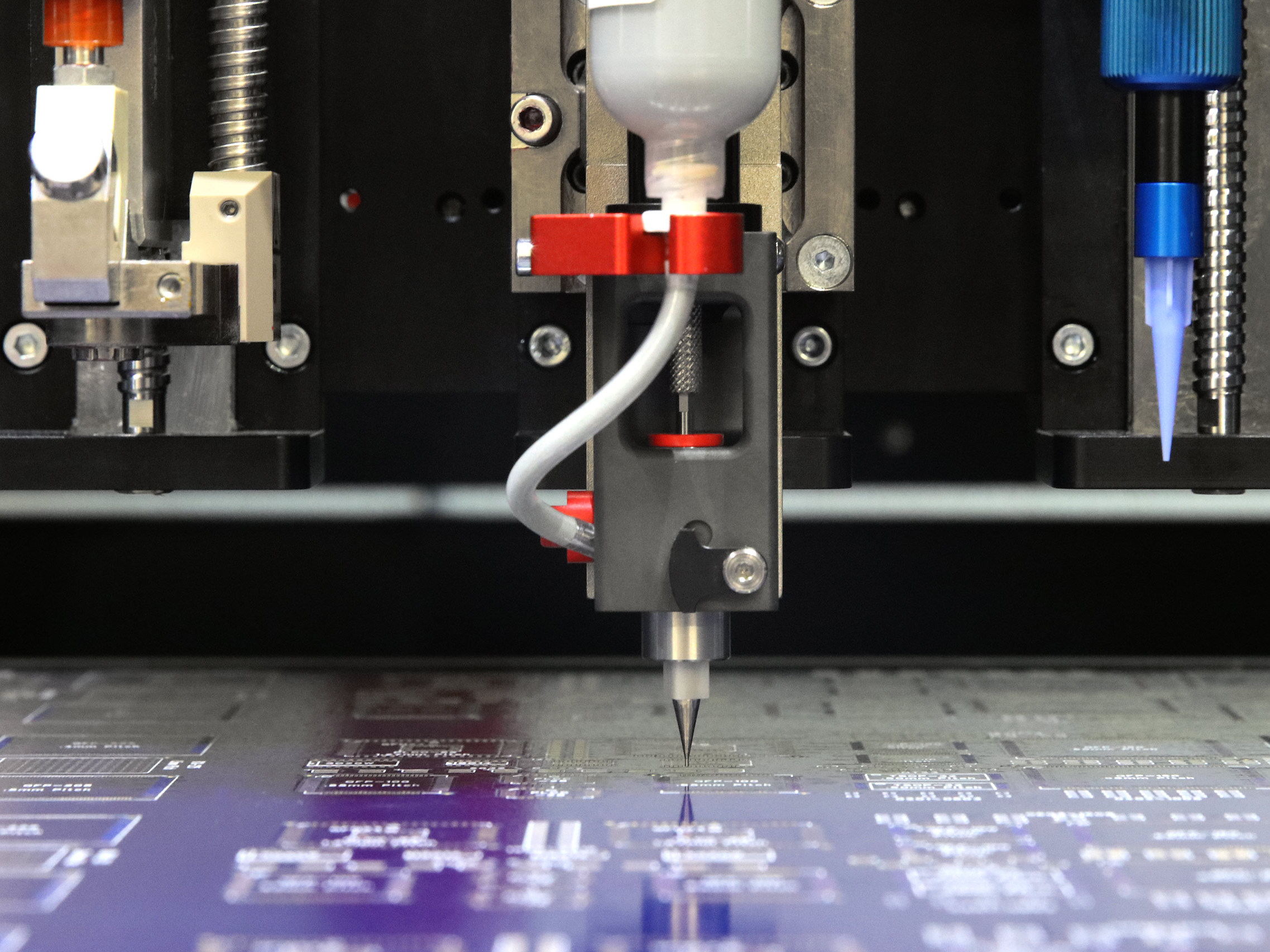

Integrate into high speed lines and highly complex dispense applications. Three processes at the same time. Plug and Play for valve change. Piezo Jet Valve - super high speed for low viscosity. Solder Jet, Volume Displacement, Time/Pressure, Archimedean Screw Valve. Full operator support - Automated error analysis & KPI. Training, support and troubleshooting via advanced remote access. Investment protection; all options and heads retrofittable.

Parameters and specifications

dispense technology

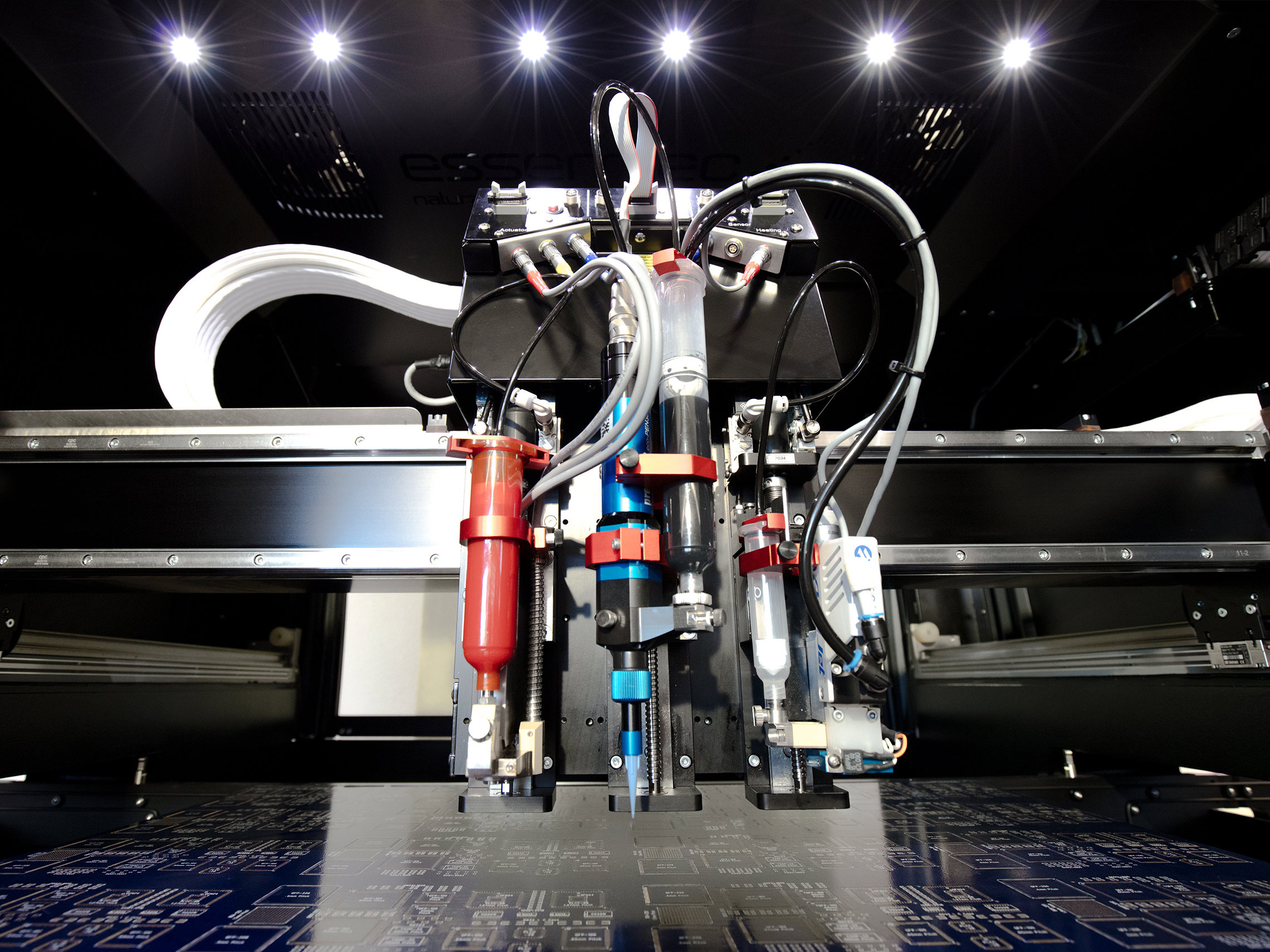

Up to 3 dispense valves simultaneously
5 different valves, large application range

process control

Monitoring sizes & weight of dispense dots
Process control adjustment and dot stabilisation

productivity

Up to 145’000 dots/h (with Piezo Jet Valve)
Up to 2’000’000 dot/h line mode

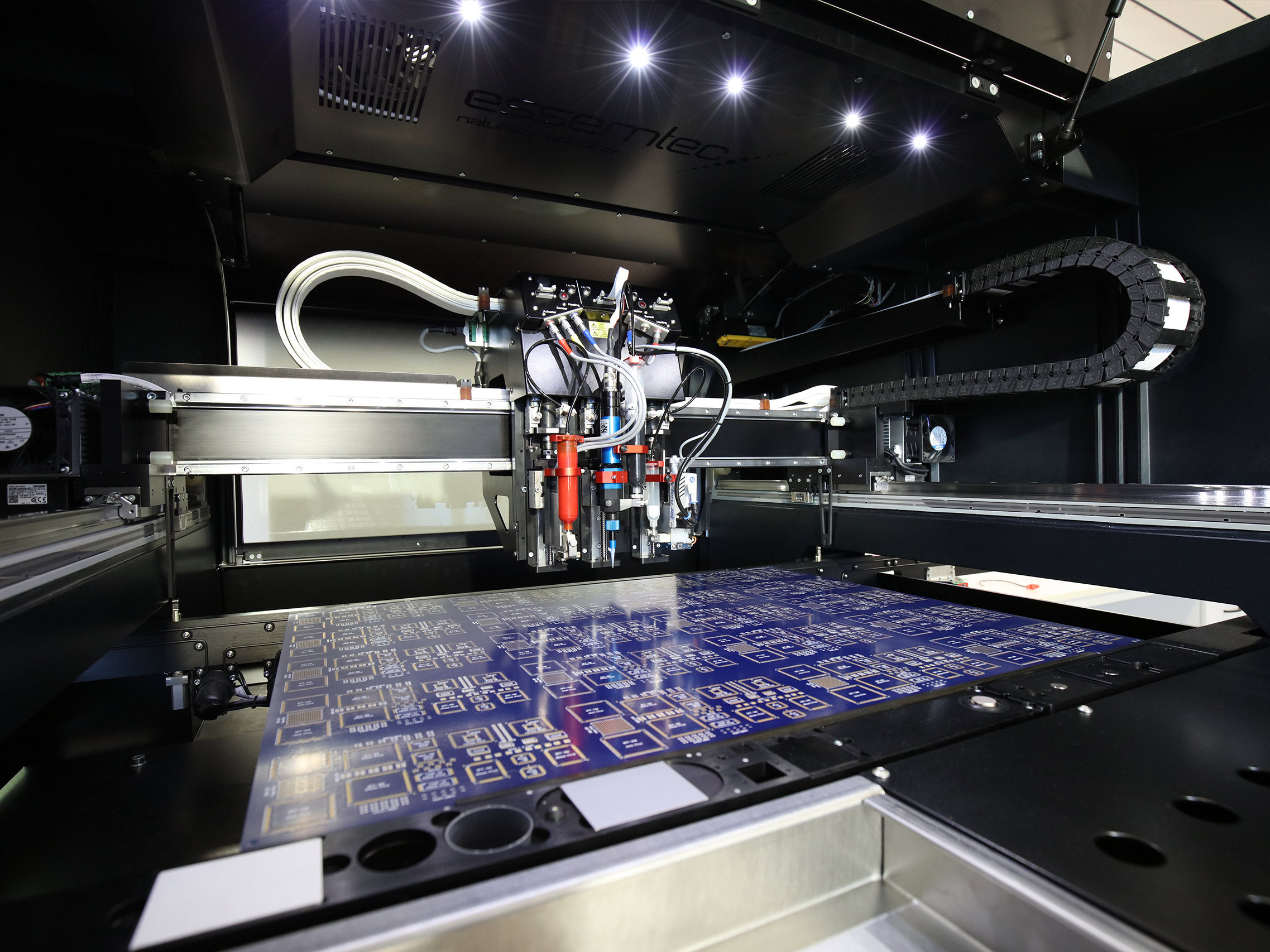

large dispense area

PCB size 560 x 610 mm, optional 1’800 x 610 mm
Up to 80 mm (3.35”) programmable Z stroke

mineral cast

No vibration, symmetrical mineral casting
No warpage, no thermal drift

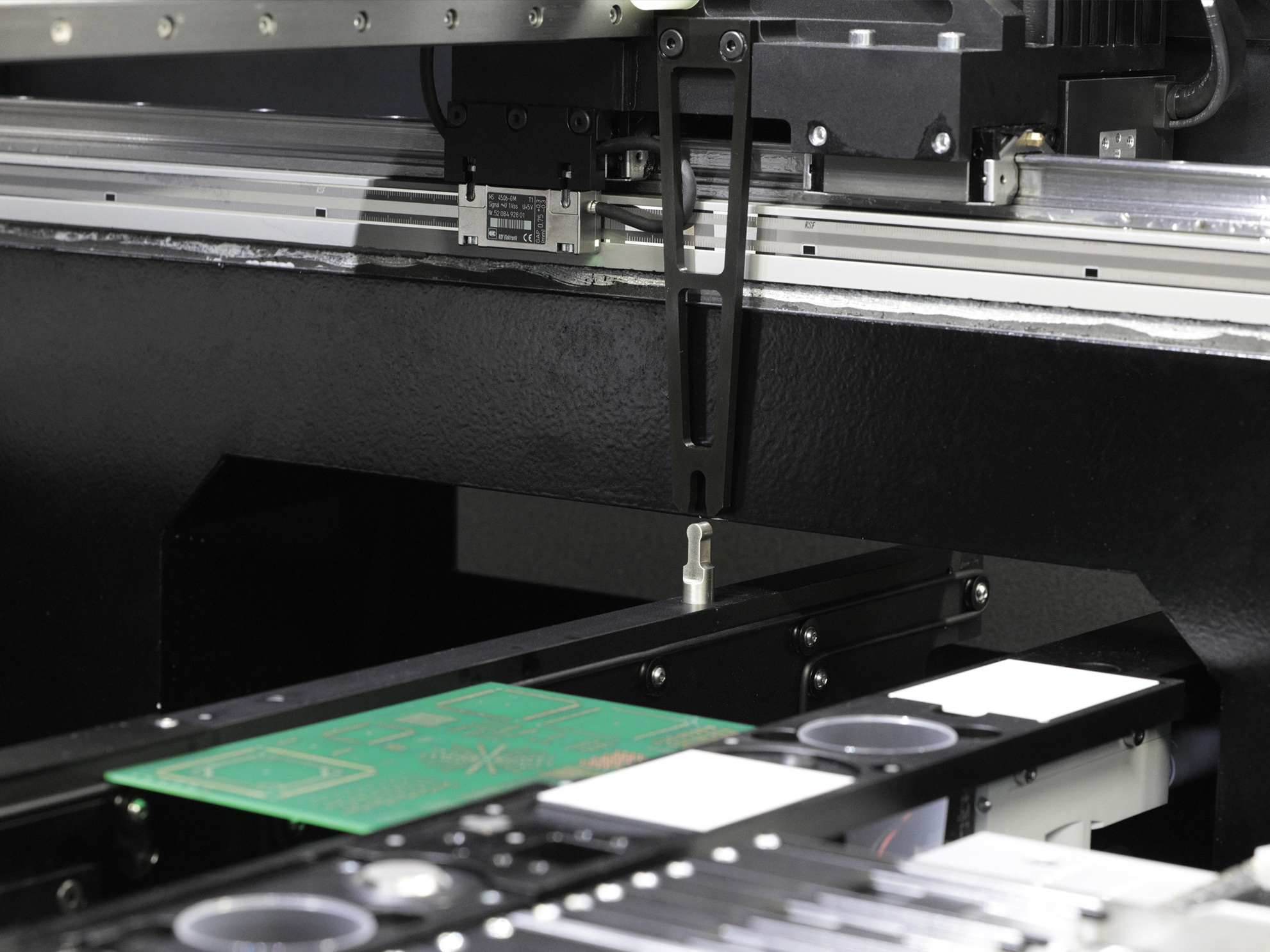

height mapping

Mapping of heights using laser technology
Compensation of substrate warp / 3D contour

linear motors

Fast, reliable double drive linear motors
No maintenance, longest lifetime

		Tarantula
Process	Maximum dispensing speed	Piezo Jet Valve: 145'000 dots/h
		Pneumatic Jet Valve: 77'000 Dots/h
		Time/Pressure Valve: 26'000 Dots/h
		Archimedean Screw Valve: 22'000 Dots/h
	Dispensing mode	Dot, line, curve, interpolated 3D contour
Accuracy	Placement XY dots	±40 μm (3σ)
	Positioning Z axis	±20 μm (3σ)
PCB	PCB dimensions	560 x 610 mm (22 x 24")
Dimensions	Machine footprint	1'557 x 1'357 mm (61 x 53")
