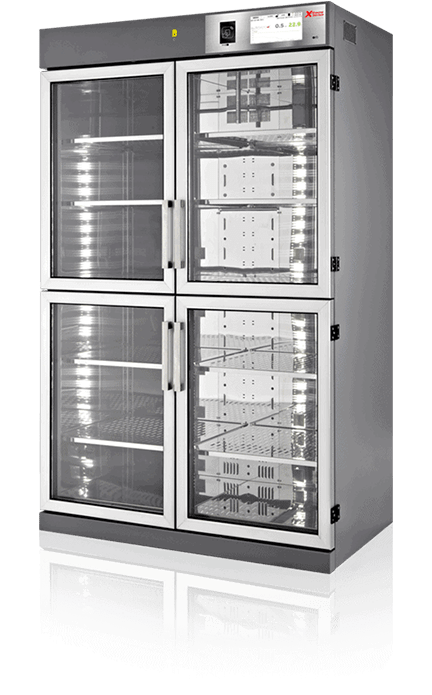

X-Treme Series

Automated drying cabinets for drying and storing electronic components, solder paste, conformal coating, metal powders, etc., for normal and demanding operation

XS
1 drying unit for normal, undemanding operation. Temperature can be regulated up to 45 °C or 60 °C. 3 different cabinet sizes and storage volumes – 300 l, 600 l, 925 l.
Shelf load capacity 40 kg or 90 kg.

XT
1 drying unit for normal, undemanding operation or 2 drying units with rapid regeneration for demanding operation and full utilization of the cabinet. Temperature can be regulated up to 45 °C or 60 °C.
High storage volume (1 250 liters).
Shelf load capacity of 40 kg or 90 kg.

XL
1 drying unit for normal, undemanding operation or 2 drying units with rapid regeneration for demanding operation and full utilization of the cabinet. Temperature can be regulated up to 45 °C or 60 °C.
High storage volume (1 840 liters).
Shelf load capacity of 40 kg or 90 kg.

CS
1 drying unit for normal, light duty operation. Temperature can be regulated up to 2 °C (cooling) or up to 125°C (baking). 3 different cabinet sizes and storage volumes – 300 l, 600 l, 925 l.
Shelf load capacity 40 kg or 90 kg.

CT
1 drying unit for normal, undemanding operation or 2 drying units with rapid regeneration for demanding operation and full utilization of the cabinet. Temperature can be regulated up to 2 °C (cooling) or up to 125 °C (baking).
High storage volume (1,250 liters).
Shelf load capacity of 40 kg or 90 kg.

CL
1 drying unit for normal, undemanding operation or 2 drying units with rapid regeneration for demanding operation and full utilization of the cabinet. Temperature can be regulated up to 2 °C (cooling) or up to 125 °C (baking).
High storage volume (1 840 liters).
Shelf load capacity of 40 kg or 90 kg.

Parameters and specifications

Adjustable humidity range (0.5 % – 98 % RH) and temperature range (2 – 125 °C) depending on configuration
7" color touchscreen LCD display with 800×480 px resolution shows relative humidity, temperature, and graph of measured values
LCD display backlight with user-defined delay is controlled by motion sensor activation, by touching the display, or door opening
Built-in recording unit allows you to view the history of all recorded data
WI-FI and Ethernet connection
Component tracking software (traceability)
Smart storage option using "Pick by Light" technology (LED indicating the location of the reel)
Patented drying technology offers ultra-high dehumidification speed and compensates for door opening
Nitrogen unit
The body of the X-Treme series drying cabinet is made of double thermally insulated walls, stabilizes the temperature and guarantees energy savings
The four-door design minimizes exposure to external conditions when any door is opened
Double 22 mm thick thermally insulated glass and magnetic seals ensure perfect door insulation
Automatic fan circulation inside the rear air ducts ensures even distribution of humidity and temperature on each shelf
Door opening and tolerance exceeded alarm with acoustic signal and alarm history
Outside Humidity and Temperatucolorsre Sensor, external alarm with light and buzzer (2 colors)
Interior lighting system (2 color light)
Electrostatic painted metal sheet chassis
Automatic door locks
Remote monitoring systém (RMS)
Dividers, reel holders and other accessories
