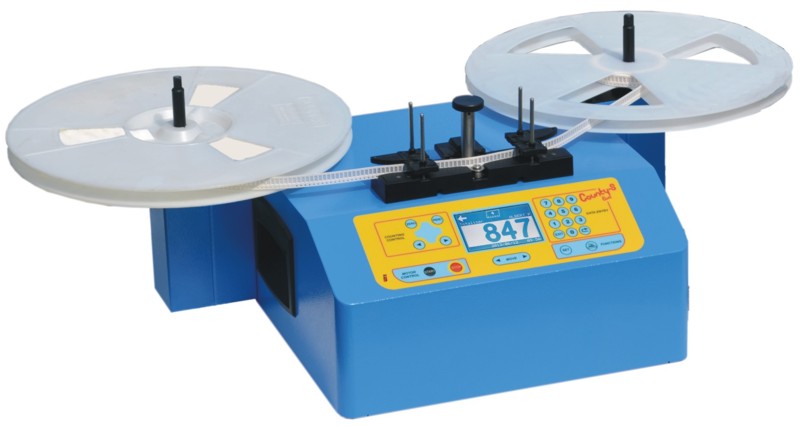

County S Evo

The new COUNTY-S EVO replaces the old County-S SMD Component Counter.

The County-S EVO works by counting the holes on the tape. It can operate in two different ways:

Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.

Preset mode: the desired component number is entered on the keyboard and the counter automatically stops when it reaches the corresponding component.
All functions are easy to operate with the help of interactive messages on the display.

On the screen are always visible:
  • Counting direction
  • Pitch number (holes per component)
  • Working mode (Totalizer, Preset or Rewind)
  • Name of the operator
  • Components counted
  • Date & Time or the last barcode reading
  • Display: 6 digits high efficiency leds
  • Maximum counting speed: 220 pc/sec (1 piece per hole)
  • Accuracy: ±1 piece
  • Holes per component: from 0.5 to 99 (factor division)
  • Maximum tape height: 56mm
  • Maximum reel diameter: 400mm (standard configuration), 650mm (with 8301.150 support)
  • Display: blue LCD with led backlight 160x104 pixel, visible area 74x46mm
  • Adjustable speed control
  • Step by step mode (1 component at a time)
  • Empty pocket check (optional)
  • Barcode reader input
  • Serial connection for label printer or PC
  • Selection of the operator (10 operators can be memorized with 8 alphanumerical chars everyone)
  • Internal clock (1 week backup)
  • Memory that stores the last 500 counting data
  • Memory storage for subtotals
  • 2 side handles for easy transport.
