CM+ Series

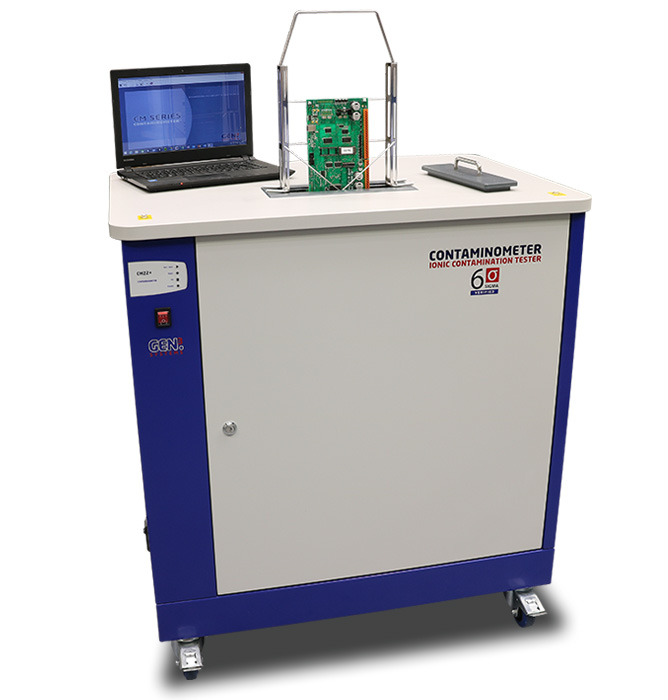

Introducing the new and improved CM+ Series – the industry-leading, award-winning and worlds first combined ROSE and PICT Ionic Contamination Tester.

Although commonly referred to as "Cleanliness Testing", the Contaminometer is in fact a tool used to measure ionic contamination. This test method has, for over 40 years, been acknowledged as an important Quality Assurance and Process Control tool in the manufacture of electronic circuit boards, components and assemblies.

The Contaminometer (CM+ Series) system was originally developed by Protonique, the business of industry guru Brian Ellis. They also featured in the early development programmes of "cleanliness measurement" carried out by the US Department of Defense at China Lake in the 1970s. Historically, International Standard IPC-J-STD001 stated that assemblies be cleaned to a value of <1.5µg/cm2 of NaCl equivalence. However, the new design is linked to the introduction of the new process control metric introduced by Gen3 Systems: Process Ionic Contamination Testing. The CM+ Series measure the amount of ionic contamination in accordance with all existing test methods, often referred to as ROSE testing, as well as the new PICT test.

They have been designed to avoid polarisation effects between electrodes, as might occur when using DC test currents.

The Contaminometer series from Gen3 Systems come in 5 different models and 5 different tank sizes - when selecting a Test System, it is important to use the smallest possible tank size for the circuit under test.

All of the range utilise a solid gold test-cell, ballistic amplifiers and vigorous pumping systems to ensure superior measurement precision, even at very low conductivity values. PC based software is used to produce graphical test data, a pass/fail analysis and automatic hard copy print out using test methods according to the prevailing standards.

  • Six-Sigma (6σ) verified as a process control tool
  • Complete testing cycle within only 3 minutes
  • High fluid circulation rate, ensuring fast removal of ionic contaminants from PCBA whilst providing smooth, bubble-free circulation at all times
  • Unique CURVE-FITTING Analysis algorithm (Merit of Fit) to predict results of longer tests
  • Unique solid gold measuring cell, ballistic amplifier providing a test accuracy of <0.005mS/cm
  • Accurate measurement, even when the proportion of test solution to surface area under test are huge
  • CO2 compensation function, to remove any effects of atmospheric pollutions from contamination results
  • Full regeneration in typically < 6 minutes
  • New range of PCB/Component handling frames, with integrated draining system
  • Measures in accordance with all international and MIL specifications old and new
  • All CM+ systems have proven Gauge R&R (Repeatability and Reliability) of ~2%
  • The CM+ Series systems provide far superior Accuracy, Sensitivity, Linearity, Precision and Repeatability
CONTAMINOMETER™ SYSTEMS tank size tank volume approx weight unpacked
CM11+ Bench-top system 250 × 300 × 36 mm 2,7 Litres 21 Kgs
CM22+ 250 × 350 × 60 mm 5,25 Litres 60 Kgs
CM33+ 500 × 350 × 60 mm 10,5 Litres 85 Kgs
CM33L+ 610 × 610 × 90 mm 33,5 Litres 100 Kgs
CM60 500 × 350 × 60 mm 10,5 Litres 110 Kgs
CM BBT 610 × 610 × 18 mm 14,27 Litres 75 Kgs
