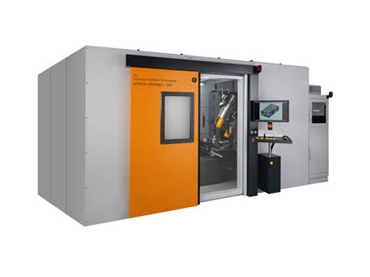

phoenix v|tome|x L 300

The phoenix v|tome|x L 300 is a versatile high-resolution microfocus system for 2D and 3D computed tomography (microCT) and 2D non-destructive X-ray inspection.

It is equipped with a unipolar 300 kV/500 W microfocus source and handles large samples up to 50 kg and up to 500 mm in diameter with extremely high precision. The system is a great solution for void and flaw detection and 3D metrology (e.g. first article inspection) of composites, castings and precision parts, e.g. injection nozzles or turbine blades.

Waygate Technologies
  • Extremely high magnification allows quantitative NDE for high absorbing samples due to unipolar 300 kV tube design (5 mm distance between focal spot and sample size)
  • 3D Metrology package for dimensional measuring with extremely high precision, reproducibility and user-friendliness
  • Failure detection and reproducible 3D metrology of steel parts and large aluminum castings
  • Easy switching between 2D X-ray inspection and 3D computed tomography (microCT and nanoCT) mode with details up to 1µm
  • Wide application spectrum of very different samples without change of X-ray tubes
  • Optional offset|scan und helix|scan capability for maximized scan flexibility
  • Fast CT acquisition and brilliant images by high dynamic temperature-stabilized GE DXR digital detector with 30 fps (frames per second) and diamond|window (optionally)
  • Accelerated 3D CT reconstruction results within a few seconds or minutes (depending of the volume size) by velo|CT
  • High precision and reproducible 3D metrology with click & measure|CT using datos|x – automated generation of first article inspection reports in < 1h possible
  • up to 10 times increased filament lifetime, ensuring long-term stability and optimizing system efficiency by long-life|filament (optionally)
