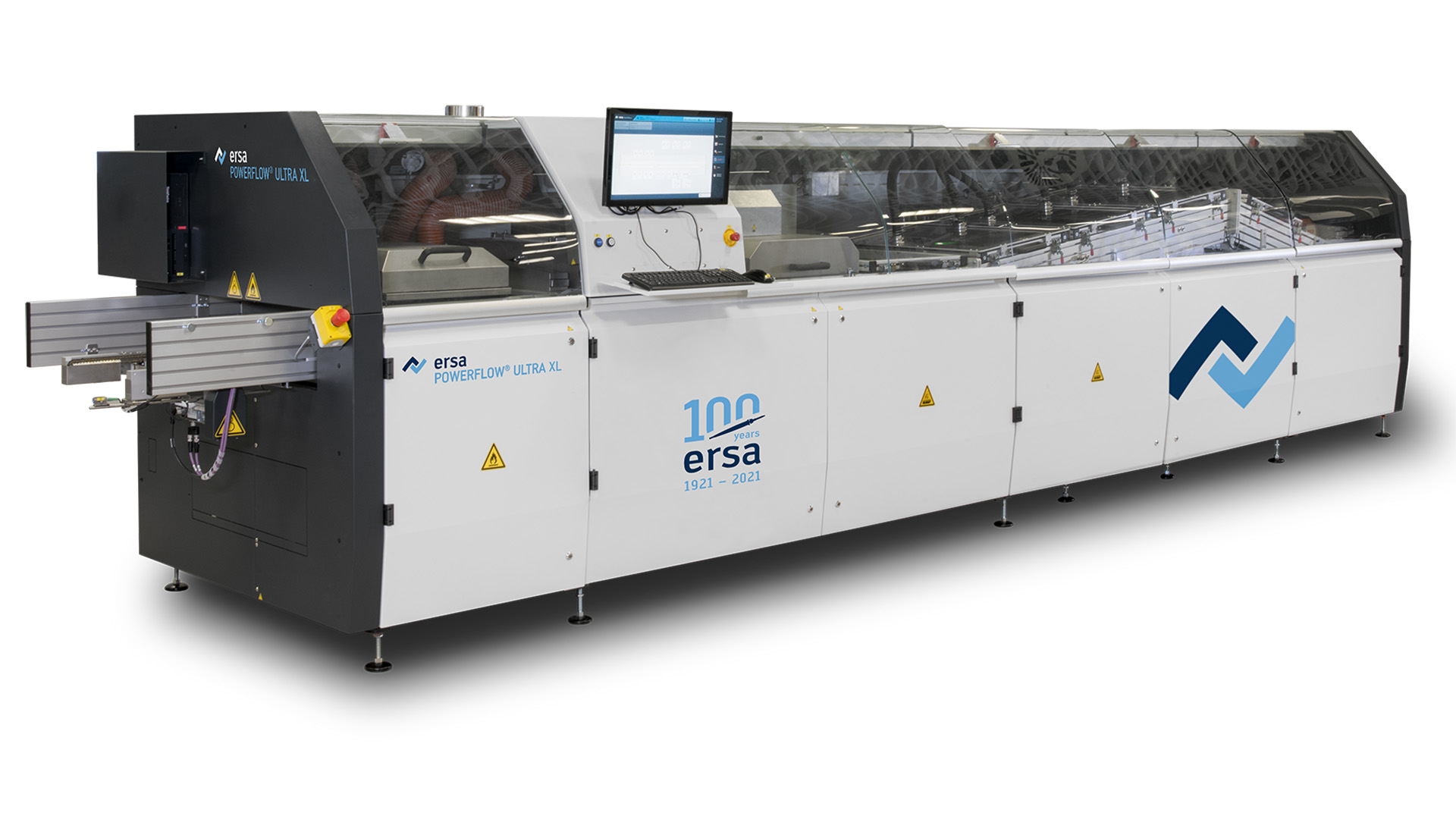

Powerflow ULTRA XL

The POWERFLOW N2 XL is a full tunnel nitrogen wave soldering machine with best process reliability even at highest throughput - max. working width up to 520 mm.

With the POWERFLOW N2 XL wave soldering system, Ersa presents the ultimate solution for demanding lead-free wave soldering processes. The high-end system is based on a machine concept with numerous future-oriented and intelligent solutions that provide the user with high added value.

The motor-driven fluxer can selectively flux individual areas of the circuit board via the intelligent control system. The modular, individually configurable preheating concept ensures optimum energy transfer. A large number of waveformers enable excellent soldering performance for every application. The robust tunnel construction and the sturdy welded frame underline the long service life and good accessibility of the machine.
  • Maximum working width up to 520 mm
  • Best process reliability even at highest throughput rates
  • Targeted and economical flux application due to programmable flux ranges
  • Modular preheating configuration for flexible and reproducible heat input
  • Ideal solder nozzle combination for all application requirements
  • Long-lasting cleanliness due to continuous process gas cleaning
  • Energy and cost efficiency using intelligent heating and nitrogen control algorithms
  • Easy maintenance due to easy access to all machine areas
  • Robust, durable, resilient and automatically lubricated chain conveyor system
  • Individual trace interface for transparent production processes
  • Universal integration into existing peripheral systems
  • Length from 5700 to 7200 mm
  • Width approx. 1515 mm
  • Height approx. 1580 mm
Conveyor systems
  • Finger transport, frame transport
  • Maximum transport speed 2.5 m/min
  • Maximum working width 520 mm
  • Maximum printed circuit board structures up to 150 mm
  • Heat transfer by convection, medium wave radiation and short wave radiation
  • Individually configurable up to a preheating length of 3000 mm
Soldering module
  • Depending on configuration 525 to 725 kg Solder content
