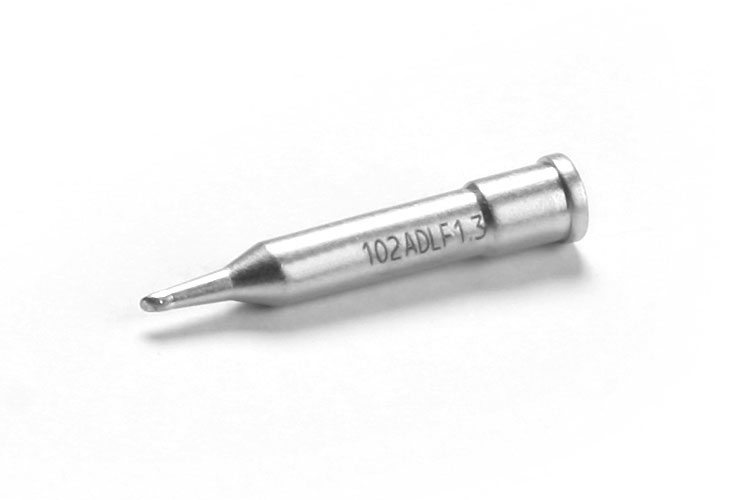

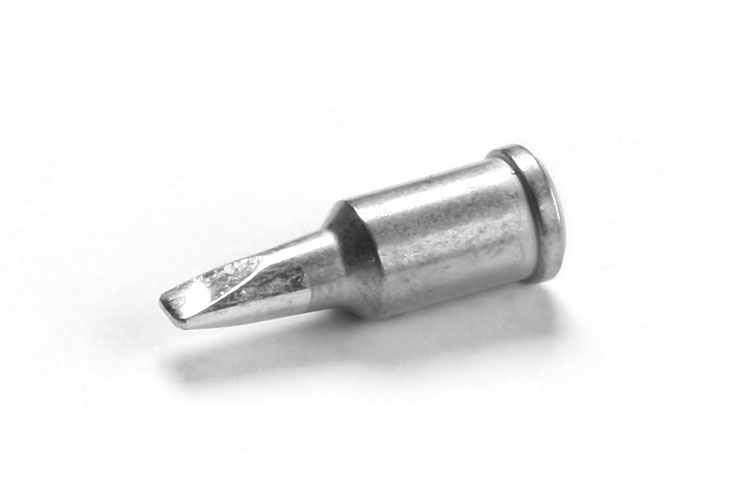

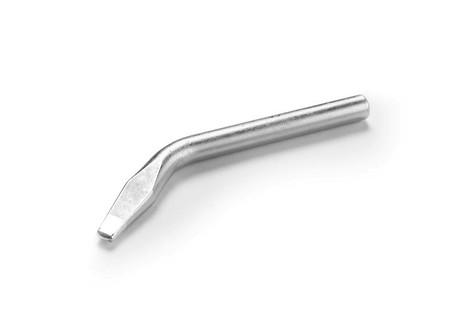

Soldering tips

The soldering tip is the “heart” of the soldering iron. Its job is to transfer the heat from the heating element via the solder to the solder joint.

Depending on the soldering iron and the application, different types of tips are available. Prerequisites for good solder joints are a correct tip shape, perfect heat transfer, an excellent condition of the tip and a reliable stability. In addition, the soldering tip also has to convey the necessary amount of sensitivity back to the operator.

ERSADUR long-life tips are designed for continuous operation and for high-quality results. They are galvanically plated with an iron coating and protected against corrosion and oxidation by an additional chrome layer. This manufacturing process was developed and is used exclusively by Ersa. The ERSADUR tips’ perfect thermal conductivity protects the heating element from overheating and premature wear. Ersa offers a comprehensive range of soldering tips for the diverse requirements.

Which tip fits which tool?

soldering station → soldering tip

Soldering Stations Ersa tips
 i-CON
i-CON PICO Series 102
i-CON NANO
i-CON 1
i-CON 2 & 2 V
i-CON VARIO 2 & 4 (with i-TOOL)
i-CON VARIO 2 & 4 (with i-TOOl HP) Series 242
soldering stations
RDS 80 Series 832
ANALOG 60 Series 842
ANALOG 60A
DIGITAL 2000 A with POWER TOOL (DIG20A84) Series 832
Series 842
DIGITAL 2000 A with TECH TOOL (DIG20A64) Series 612
DIGITAL 2000 A with MICRO TOOL (DIG20A27) Series 212
old
ANALOG 80 Series 832
ANALOG 80A Series 842
DIG 80 A Series 832
Series 842
ELS 8000 Series 832
Series 842
MS 250 / S Series 012
Series 172
MS 6000 / 8000 / D Series 832
Series 842
TWIN 80 A Series 832
Series 842

tool → soldering tip


tool (A-Z)

soldering tips
ERGO TOOL Series 842
Ersa 30 S Series 032
Ersa 50 S Series 052
Ersa 80 S Series 082
Ersa 150 S Series 152
Ersa 200 Series 202
Ersa 300 Series 302
Ersa 550 Series 552
INDEPENDENT 75 Series G 072
INDEPENDENT 130 Series G 132
i-TOOL Series 102
i-TOOL NANO Series 102
i-TOOL PICO Series 102
i-TOOL HP Series 242
MICRO-TOOL Series 212
MINITYP S Series 012
MINOR S Series 042
Series 012
MULTITIP 08 Series 132
MULTITIP 15 Series 162
MULTITIP 25 Series 172
MULTI-PRO Series 832
Series 842
MULTI-SPRINT Series 832
Series 842
MULTI-TC Series 832
Series 842
PTC 70 Series 832
POWER-TOOL Series 842
SL 870 Series 162
TIP 260 Series 162
TECH-TOOL Series 612
