Solder baths 0T02-T56

Solder baths - ideal for tin plating of stranded wire braids

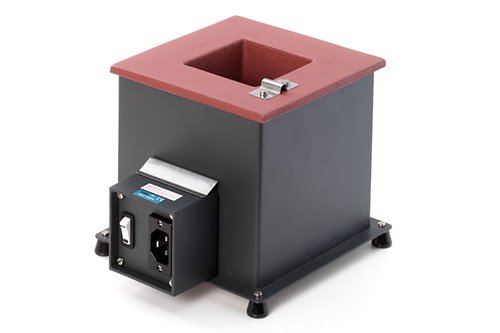

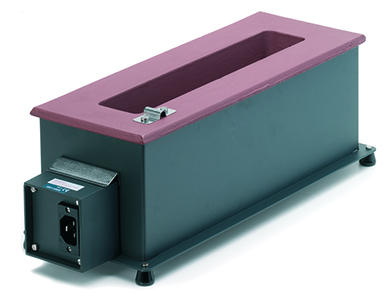

ERSA solder baths consist of electrically heated melting pots for tin/lead and similar alloy solder. The high-capacity ceramic heating elements are exchangeable and mounted to the pot. They feature a thermal insulation towards the external sheet metal housing.

For the T 02, T 03, T 04, T 05, T 06, T 07 and T 25 solder baths half power operation can be selected. Thanks to the high temperature of appr. 600°C (1112°F) the T 02 and T 07 solder baths are particularly suitable for tin plating of enameled copper wires.

The scope of delivery includes a 1.5 m (4.9 ft) cable. To increase soldering quality and reduce the formation of oxides as well as for energy saving purposes we recommend to use our temperature regulator ERSA 0RA4500D.

The T 50 S / T 10 S mini solder baths are primarily used for tin-plating stranded wire braids, connecting leads and cable lugs. The heat-resistant special color (order no. 4HMFARBE1) can be applied to the crucible as a protection against corrosion and wetting.

Parameters and specifications

Order no.	Description	Rating/Voltage	Temperature	Dimensions in mm (L×W×D)	Capacity	Weight
0T55	T 50 S	65 W / 230 V	300 °C	28 × 20 × 13	cca. 40 g	370 g
0T56	T 10 S	130 W / 230 V	340 °C	60 × 30 × 25	cca. 185 g	615 g
0T02	T 02	240 W / 230 V	600 °C	25 Ø; 47 D	cca. 125 g	1200 g
0T03	T 032	360 W / 230 V	430 °C	100 × 30/151 × 55	cca. 1000 g	2300 g
0T04	T 04	400 W / 230 V	410 °C	52 × 52 × 84	cca. 1900 g	3900 g
0T05	T 05	500 W / 230 V	440 °C	86 × 68/201 × 90	cca. 2850 g	3400 g
0T06	T 06	1000 W / 230 V	560 °C	120 × 80 × 60	cca. 4800 g	5200 g
0T07	T 07	1200 W / 230 V	600 °C	90 × 90 × 100	cca. 6400 g	5500 g
0T11	T 11	1600 W / 230 V	450 °C	300 × 60 × 50	cca. 7500 g	8000 g
