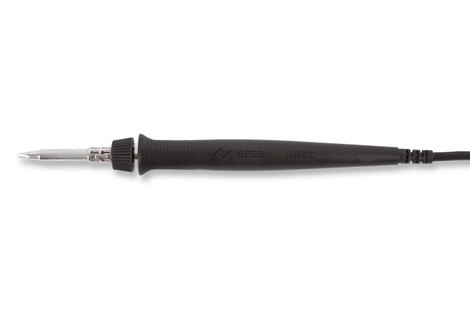

i-TOOL

High performance soldering iron for i-CON soldering stations, 150 W

The professional i-TOOL soldering iron with high-power heating element
  • Fast heat up and heat recovery:
    • from room temperature to 350 °C in approx. 9 seconds
    • from Standby-temperature (280 °C) to 350 °C in approx. 3 seconds
  • Ultra light weight iron: less than 30g (without cable)
  • Adjustable process window and process window alarm
  • Three setable energy levels for dynamic performance
  • Automatic standby sensor
  • Calibration data is stored in the individual tool
  • Ultra wide range of standard and special soldering tips, 102 series
  • retrofittable with N2 Kit

Weight in g30g (without cable)
Antistatic Design (y/n)y
Power Rating in W150
Heat up time in sec9
Temperature range in °C150 - 450

Application:
  • soldering of high mass PTH components
  • for ultrafine applications
  • for applications with limited space
  • reproducible soldering results because of precise and fast temperature control
