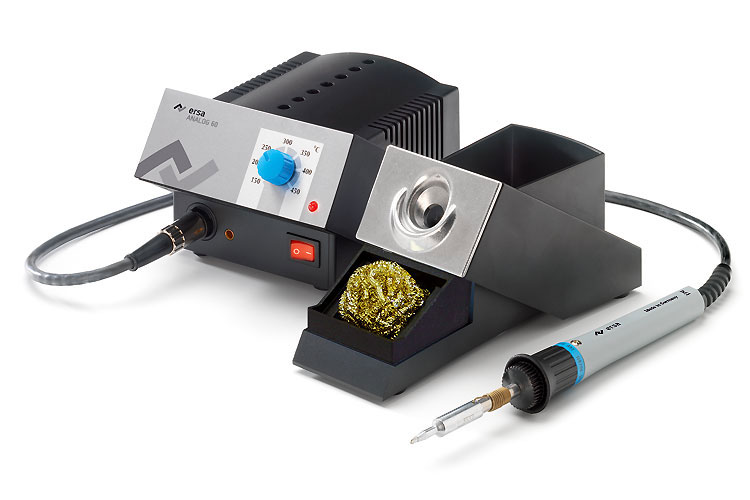

ANALOG 60 (A)

electronically controlled soldering station, 60 W, non antistatic or antistatic

The ANALOG 60 is suitable for all soldering tasks with small to medium energy demand. Depending on the demands you can select the antistatic or non antistatic version of the station. The soldering irons BASIC TOOL and ERGO TOOL can be operated with tips of the series 832 and series 842.

  • Analog soldering station in non antistatic or antistatic design and soldering iron BASIC TOOL or ERGO TOOL
  • Heat-up power 190 W
  • Reliable and long-life PTC heating technology
  • Free adjustable tip temperature
  • Very large range of price attractive, exchangeable long-life soldering tips (series 832 and series 842)
Dimensions (W × D × H) mm124 × 152 × 92
Weight in kg1,9
Antistatic Design (y/n)both available
Power Rating in W60
Nominal voltage in V AC230
Secondary voltage in V24
Heat up time in sec60
Temperature range in °C150-450
Digital display (y/n)n
Test symbolCE, VDE
