TR300

automated table-top robot

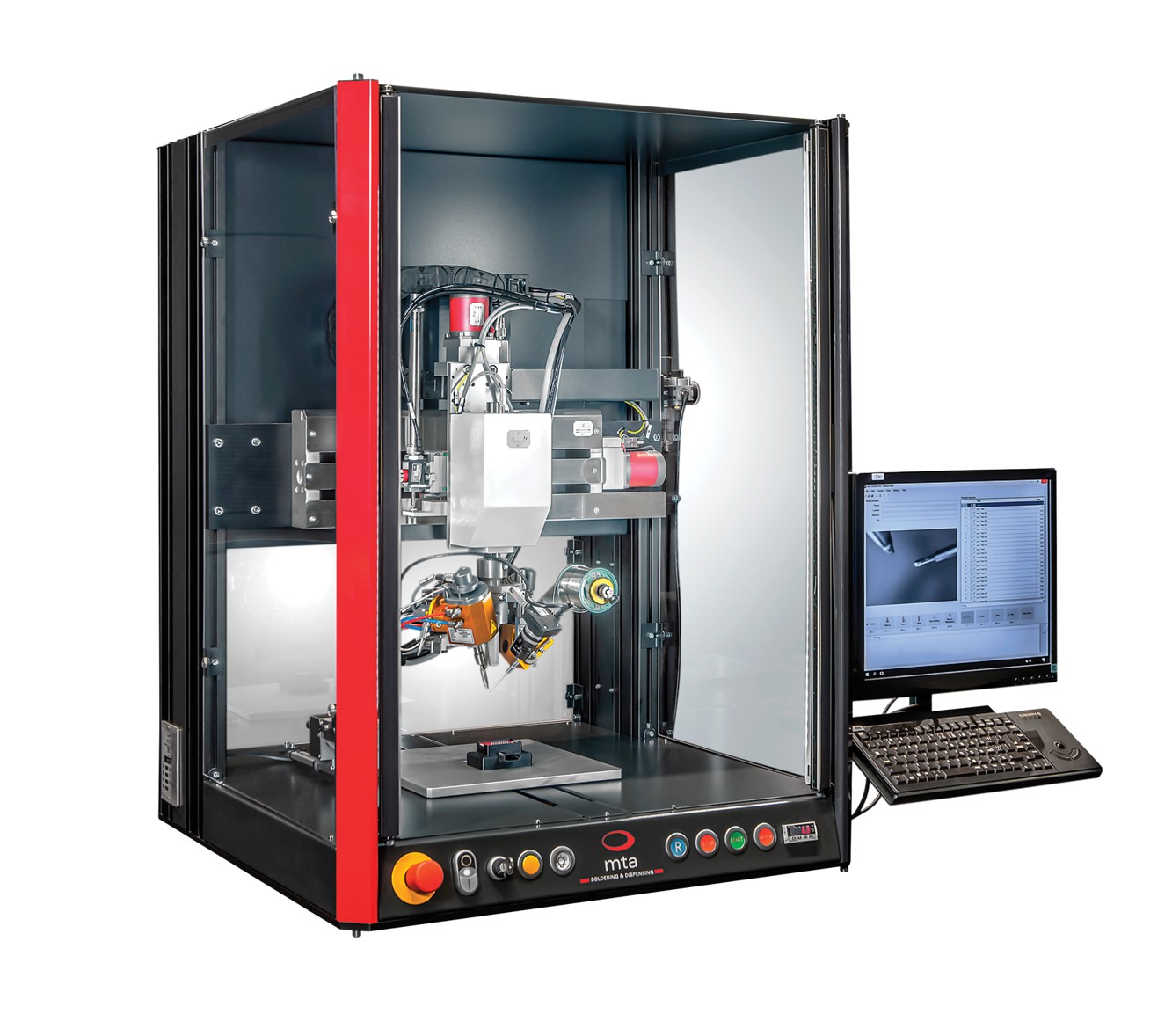

The PC controlled TR300 standard table-top robot can be used for semi-automatic operations of selective point to point soldering from above.

The increasing requirements for processes in terms of quality, precision and repeatability lead to a similar increase in the necessary level of automation. However, when production batches are small or products widely dissimilar, the cost of sophisticated equipment can place automation beyond the reach of many would-be users. The TR300 combines the necessary flexibility with the required high levels of process quality and repeatability, all at reasonable cost.

The TR300 can be equipped with all the established mta® soldering techniques.

The 3 or 4 axes of the TR300 are fully programmable through the mta® MotionEditor software including soldering parameters such as:

  • Solder quantity, wire feed speed, preheating/postheating times, automatic tip cleaning cycle intervals and other parameters for each soldered point.
Working area300 × 300 × 100 mm
Cartesian robot3 or 4 axes (option: T axis)
Shift of axespoint by point
Positioning repeatability±20 μm
SpeedX and Y: <200mm/s, Z <100mm/s, T <=3.14 rad/s
Electronic controlindustrial PC
Operating systemWINDOWS
ProgrammingHMI Windows oriented
InterfacesEthernet / USB port / Serial port
Execution modeStandalone or slave with PLC via I/O interface
Axes actuationstep by step motor
Power supply230/115V – 50/60Hz
Power consumption1 kVA
Air pressuremax. 6 bar
Dimensions804 x 732 x 995 mm
Weight~125 kg
