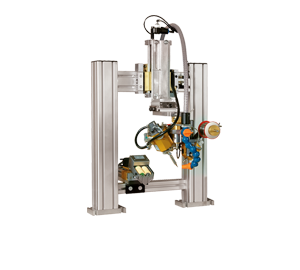

Soldering station for integrator

For applications that do not require the flexibility of a robot, a simple station is available for semi or fully automatic operations of selective point to point soldering from above.

The modularity of slides and standard elements enable to find a solution adapted to the customer’s application.

The station can be equipped with all the established mta® soldering techniques, except for the mta® PowerLas laser.

Thanks to its modular concept, the station can be integrated into a line or onto a rotary table (no safety guarding included).


Working areaaccording to the customer’s needs
axespneumatic
Controllermta® controller available upon request
Interfacesvia I/O
Power supplywithout controller 24VDC
Power supplywith mta® controller: 230/115V – 50/60Hz
Power consumption1.1 kVA
Air pressuremax. 6 bar
Dimensionsfrom 470 x 630 x 810 mm to specific dimensions
Weightvariable from 50 kg to 100 kg
