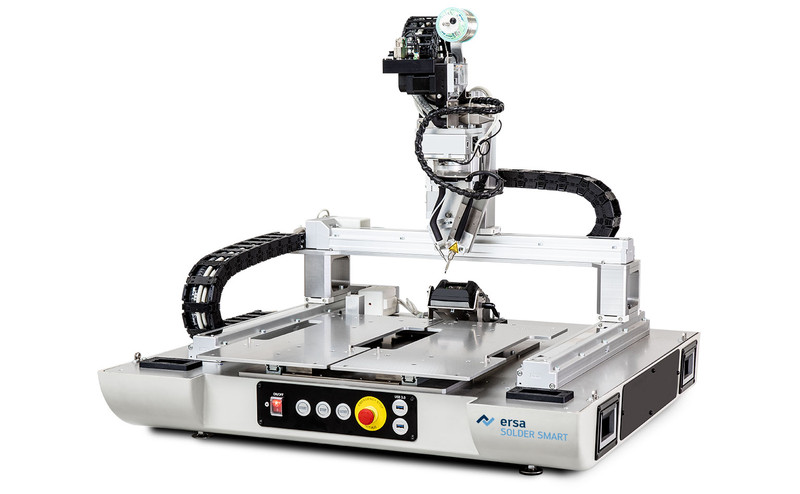

SOLDER SMART SR 500

Ersa SR 500 - automatic iron soldering.

Precise, automatic iron soldering with highest precision!
The Ersa SOLDER SMART SR 500 works with the powerful i-TOOL, which has proven itself a thousand times over. Its heating power of 150 W allows fast soldering processes with stable soldering temperature and the use of very fine soldering tips (from 0.4 mm) up to 5 mm wide tips and more!

Parameters and specifications

High-quality 150 W soldering iron Ersa i-TOOL
Axis accuracy +/- 0.02 mm
Automatic soldering tip measurement (height)
Spot soldering & line soldering - drag soldering
Flow soldering - soldering with pre-soldered soldering tip
Electric soldering iron feed = no mechanical stress for the PCB
Automatic loading of soldering programs with optional hand scanner
Precise, reliable solder wire feeder
Complete process monitoring, built-in PC, software pre-installed

Dimensions (W × D × H) in mm880 × 880 × 830 mm (with hood)
Weight in kgapprox. 100 kg
Antistatic Design (y/n)yes (hood not antistatic)
Power Rating in Wmax. 1,500
Supply voltage200-230 V / 50-60 Hz, 6A
Soldering systemErsa i-CON 1 with 150 W soldering iron
Component size in mmall common THT components
