MRC500

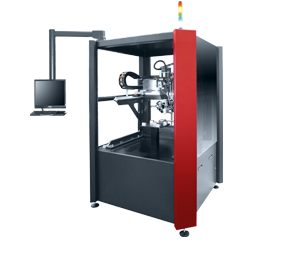

The PC controlled MRC500 standard robotic cell can be used for semi or fully automatic operations of selective point to point soldering from above.

The MRC500 can be equipped with the established mta® soldering techniques such as soldering iron, induction and microflame.

The 3 or 4 axes of the MRC500 are fully programmable through the mta® MotionEditor software including soldering parameters such as:

  • Solder quantity, wire feed speed, preheating/postheating times, automatic tip cleaning cycle intervals and other parameters for each soldered point.

Thanks to its flexible and modular concept, the MRC500 has an open architecture and can easily be integrated into existing production lines with pallet conveyors or a rotary table.

The MRC500 robotic cell provides standardized automation solutions with the highest quality and repeatability for all customer’s specific applications.

Working area500 × 500 × 200 mm
 300 × 300 × 200 mm (MRC300)
Cartesian robot3 or 4 axes (option: axis T)
Shift of axespoint by point
Positioning repeatability±20 μm
SpeedX and Y <300mm/s, Z <150mm/s, T <=3.8 rad/s
Electronic controlindustrial PC
Operating systemWINDOWS
ProgrammingHMI Windows oriented
InterfacesEthernet / USB port / Serial port
Execution modeStandalone or slave with PLC via I/O interface
X, Y and Z axes actuationServomotors – Axis T: stepper motor
Power supply400/208V – 50/60Hz
Power consumption1 kVA
Air pressuremax. 6 bar
Dimensions1’425 x 1’420 x 2’250 mm
Weight~650 kg
