Ersa CAD Assistant 3D

Fast, intuitive and comfortable – the new generation of Ersa´s offline selective solder program editor.

The efficient creation of complex solder programs for Selective Soldering Systems is of central importance. As quickly as possible and without error, that is the maxim. With the Ersa CAD Assistant 3D the programming takes place offline, while the system itself is in operation! As such, the Ersa CAD Assistant 3D delivers excellent services: The possibility for off-line programming ensures the maximum uptime of the system.

At the same time, the software offers the comfortable possibility to quickly and easily create the desired solder program.

  • Unique off-line program preparation
  • Intuitive programming with graphical and tabulated user interface
  • Optimized cycle times through auto routing

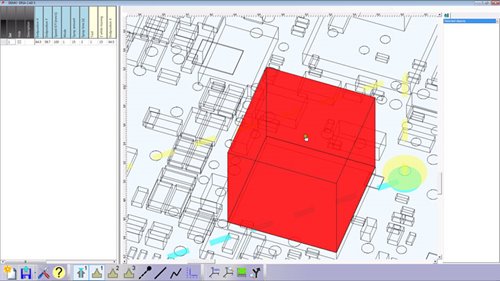

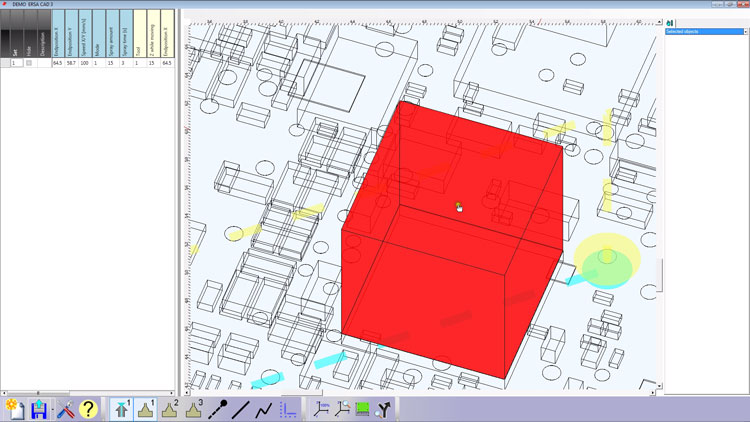

  • Avoidance of collisions through definition of exclusion areas
  • 3D display for visual control
  • Copying of program steps allows for time-saving program preparation for multiple-up panels
  • Transparent display of points, tracks and exclusion areas facilitates program preparation of complex assemblies
  • Handling up to 3 solder modules is possible
  • Easy scaling of the assembly
