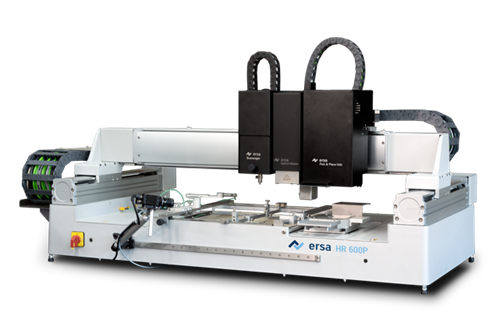

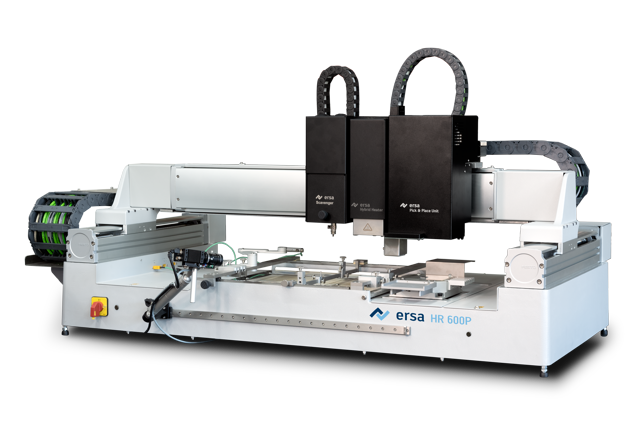

HR 600 P

Automated rework precision for the best results

With the HR 600 P, Ersa is taking the next technological step in the professionalization and automation of repairing electronic assemblies. The solid and highly accurate machine frame forms the basis for precise component placement and reliability.

Automatic residual solder removal for HR 600 P

Before a new component can be soldered onto a circuit board, the solder remaining on the PCB after desoldering must be removed. In an automated process, the Auto Scavenger SC 600 gently removes the remaining solder from the connection surfaces on the PCB. The module can also be retrofitted and is fully integrated into the HRSoft 2 software.
Ersa
  • High-precision axis system, high-resolution cameras
  • Automated component placement as well as soldering and desoldering processes
  • Hybrid heating head with two heating zones Process monitoring with reflow process camera
  • Large-area, powerful IR underheating with three zones
  • Non-contact temperature measurement with digital Virtual Thermocouple (VTC)
  • Three K-type thermocouple inputs for AccuTC sensor
  • Effective component cooling with compressed air
  • Optional residual solder removal with AUTO SCAVENGER (can also be retrofitted)


Dimensions (LxWxH) in mm 1,450 x 800 x 600
Weight in kg 110 kg (120 kg incl. SC600)
Power Rating in W 3,200
Preheating top Hybrid radiator, 800 W, in two zones, 60 x 60 mm
Preheating bottom IR emitter (3 x 800 W), 380 x 250 mm
PCB size in mm up to 380 x 300 mm (+x), option: up to 642 x 423 mm (+x)
Component size in mm 1 x 1 mm to 60 x 60 mm
Axis accuracy up to +/- 25 µm
Working distance (typical) 30-60 mm to top heater, 35 mm to bottom heater
Placement camera (top) 5 MP GigE color camera, 2 axes, motor-driven
Component camera (below) 5 MP GigE monochrome camera (component camera is not powered)
Reflow process camera 10.7 MP, CMOS GigE color camera, 50 mm focal length, illumination 2x LED, adjustable
Compressed air connection to be provided on site. ¼ inch
Required pressure 6-10 bar
Operating software HRSoft 2 - compatible with Windows 8, 10 and 11
Test symbol CE
