DIP & PRINT Station

Defined application of flux and solder paste during rework

All the right moves for rework: simply print on the connections or dip them in
  • Preparation of components with solder paste or flux
  • Simpler, more reliable and repeatable application
  • Standard dip stencils for many uses (flux or dippable solder paste)
  • Component specific print stencils according to customer requirement
  • Suitable adapters for Ersa Rework Systems
  • Cleaning and drying of stencils in the station

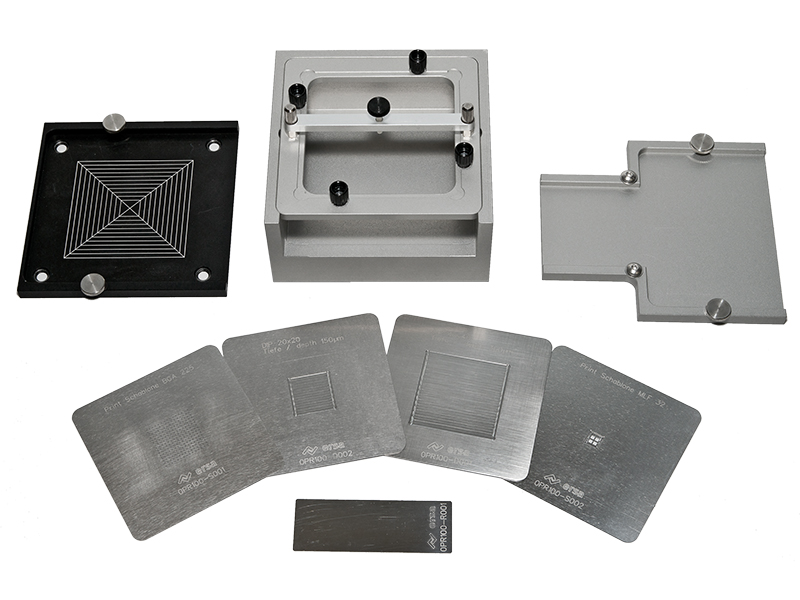

Stock No. Description
0PR100-D001 Dip stencil 40 x 40 / 300 µm
0PR100-D002 Dip stencil 20 x 20 / 150 µm
0PR100-D003 Dip stencil 20 x 20 / 100 µm
0PR100-D004 Dip stencil 40 x 40 / 100 µm
0PR100-PL550 Frame fixation PL 550
0PR100-PL650 Frame fixation PL 650
0PR100-R001 Squeegee 70 x 25 mm, 0.3 mm dick
0PR100-S001 Print stencil, Type 1, BGA 225

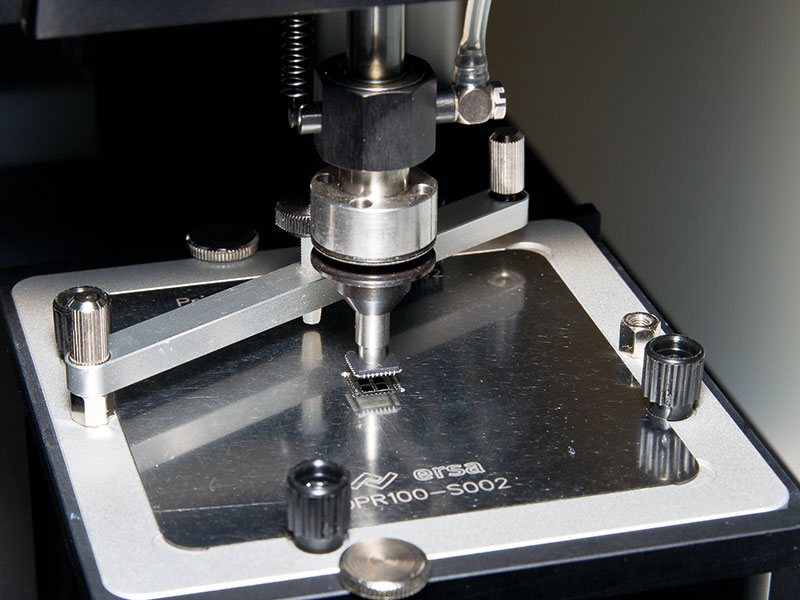

0PR100-S002 Print stencil Type 2, MLF 32
0PR100-S003 Print stencil Type 2, QFN 20
