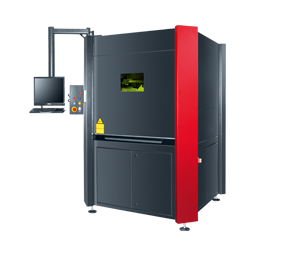

MRC500 laser

The PC controlled MRC500 standard robotic cell can be used for semi or fully automatic operations of selective point to point soldering from above.

The frame of the MRC500 is specifically designed to ensure the safety of the operator during the laser soldering process, as well as to provide maximum accessibility to the working area. It is equipped with the mta® PowerLas soldering laser technique.

The 3 or 4 axes of the MRC500 are fully programmable through the mta® MotionEditor software including soldering parameters such as:
  • Solder quantity, wire feed speed, preheating/postheating times, automatic tip cleaning cycle intervals and other parameters for each soldered point.
The MRC500 robotic cell provides standardized automation solutions with the highest quality and repeatability for all customer’s specific applications.
Working area500 × 500 × 200 mm
Cartesian robot3 axes
Shift of axespoint by point
Positioning repeatability±20 μm
SpeedX and Y<300mm/s, Z <150mm/s
Electronic controlindustrial PC
Operating systemWINDOWS
ProgrammingHMI Windows oriented
InterfacesEthernet / USB port / Serial port
Execution modeStandalone or slave with PLC via I/O interface
X, Y and Z axes actuationServomotors
Power supply400/208V – 50/60Hz
Power consumption1.5  kVA
Air pressuremax. 6 bar
Dimensions1’405 x 1’492 x 2’532 mm
Weight~1’000 kg
