TCM45A_XL

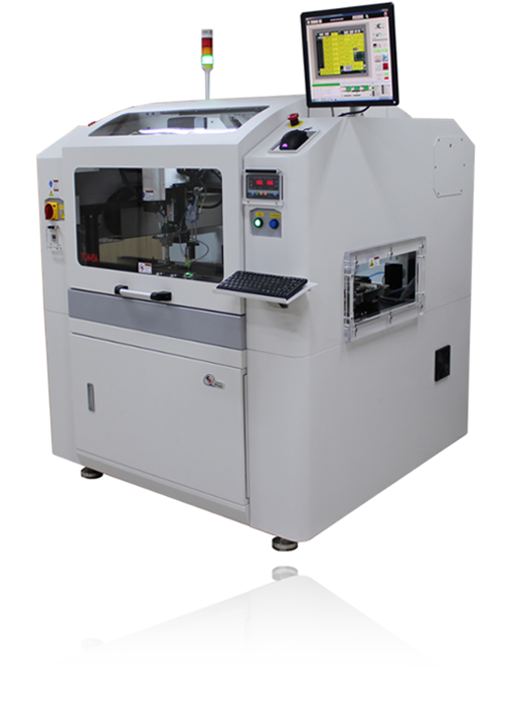

​The TCM45A_XL is an advanced conformal coating system developed by TTnS Inc., designed to provide precise and efficient protective coatings for printed circuit boards (PCBs). This fully automated and programmable system integrates a five-axis precision robot with TTnS's exclusive coating applicators, ensuring consistent application, reduced masking requirements, and minimized rework.

• High Precision: The five-axis Cartesian robot system virtually eliminates extensive masking and rework, maximizing throughput and ensuring repeatability

• Versatile Coating Capabilities: Supports a wide range of conformal coating materials, including acrylics, rubber, urethane, silicone, and water-based coatings, making it adaptable to various application needs. ​

• Material Efficiency: Utilizes TTnS's patented non-atomized film patterning and tri-mode spiral dispensing technology, achieving nearly 100% material transfer efficiency and reducing material usage by 40-60% compared to traditional spraying or dipping processes. ​

• User-Friendly Software: Equipped with the EasyCoat Manager (ECM_WIN7), TTnS's exclusive coating program compatible with Windows 7, allowing operators to easily manage various coating patterns and processes.

• Energy Efficiency: Designed with energy-saving features, the TCM45A_XL reduces electrical consumption by over 50% compared to conventional curing methods, contributing to cost savings and environmental sustainability.
