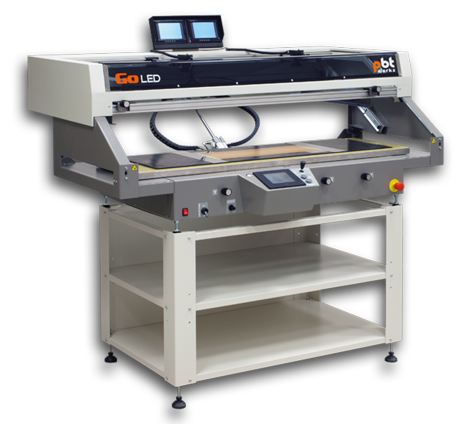

GoLED

Semi-automatic programmable highly precise and flexible off line stencil printer. Suitable for LED production with camera guided alignment.

Aplication:

Small to middle series production
LED panels and large DPS formats
Printing solder paste
Printing SMD glue
Printing thermoconductive paste

PBT Works

Parameters and specifications

Compact size and small footprint
Quick PCB changes
Fast product changeover
Camera guided through stencil alignment
Playless precise alignment
X, Y, Theta adjustment
Power assisted upper frame opening
Rubber based vacuum table
Adjustable stencil clamping
Adjustable printing pressure
Programmable board from stencil separation distance and speed
Robust synchronized table separation motion
Programmable print speed and squeegee range

Stencil frame sizemax1500×600×40 mm
Print area max1200×350 mm
PCB size max1400×420 mm
Machine footprint1730×930 mm
