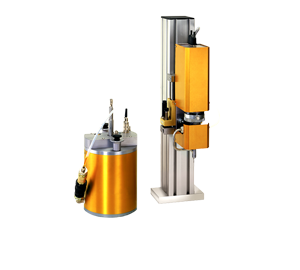

Station NVD

Pneumatic station for inline integration

For applications that do not require the flexibility of a robot, a simple station is available for semi or fully automatic operations of volumetric dispensing.

The modularity of slides and standard elements enable to find a solution adapted to the customer’s application. The station can be equipped with all the established mta® dispensing techniques.

Thanks to its modular concept, the station can be integrated into a line or onto a rotary table (no safety guarding included).

Working areaaccording to the customer’s needs
axespneumatic
Controllermta® controller available upon request
Interfacesvia I/O
Power supplywithout controller: 24VDC
Power supplywith mta® controller: 230/115V – 50/60Hz
Power consumption1.1 kVA
Air pressuremax. 6 bar
Dimensionsfrom 470 × 630 × 810 mm to specific dimensions
Weightvariable from 50 kg to 100 kg
