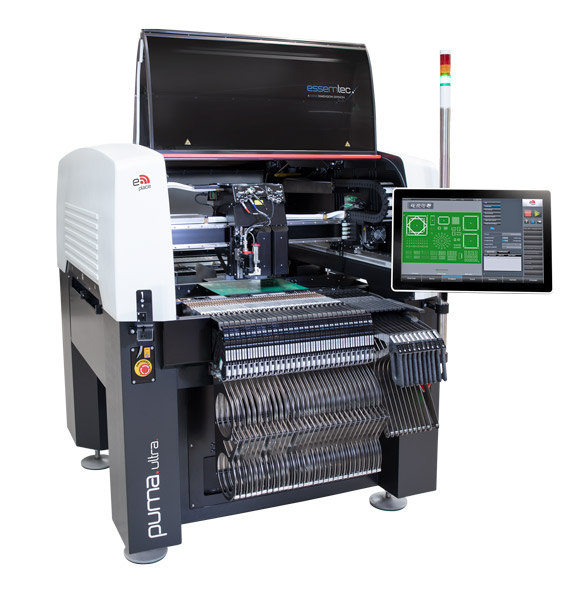

Puma.ultra

Strong, flexible, adaptive & modular SMT pick-and-place platform from Essemtec.

Introducing - The Puma - state-of-the-art technology. Expandable in any direction, Puma’s modular architecture grows synchronously with customer requirements for performance and processes. It delivers high-speed placement while also supporting dispensing, making it suitable for ultraflexible, rapid prototyping and series production alike.

Parameters and specifications

Combined processes: High-speed placing and dispensing in a single pass-through; supports 1, 2 or 4 placement axes with up to 1-2 dispense processes.
Productivity: Optimum placement speed up to 30’000 cph (4-axes), with inline configurations offering even higher throughput.
Small footprint: Up to 280 feeder positions on 2 m² (up to 420 inline), with flexible PCB size support.
Mineral cast chassis: Stable, vibration-free structure with minimal warpage and thermal drift.
Quick changeover: Intelligent smart feeder system enables nonstop setup and production changeovers.
Linear motors: Fast, reliable double-drive linear motors with low maintenance and long lifecycle.

		Puma4	Puma2	Puma
Productivity	Optimum placement speed	30’000 cph (4-axes)	17’400 cph (2-axes)	9’000 cph (1-axis)
	Solder Paste Jetting Shockwave Jet Valve Jet-on-the-Fly		Max Frequency: 1’100’000 dots/h BGA Pattern Speed: 665’000 dots/h Average board speed: 350’000 dots/h
Feeder	Feeder capacity 8 mm Tape	280 (160 inline)	260 (140 inline)	260 (140 inline)
Components	Component size range		008004 (imp.) - 109 x 87 mm (Note specs for details)
Accuracy	Placement accuracy (x, y)		Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ)
PCB	Max. PCB dimensions		560 x 610 mm (22 x 24“) optional 1’800 x 610 mm (71 x 24“)
Dimensions	Machine footprint		1’557 x 1’357 mm (61 x 53“)
