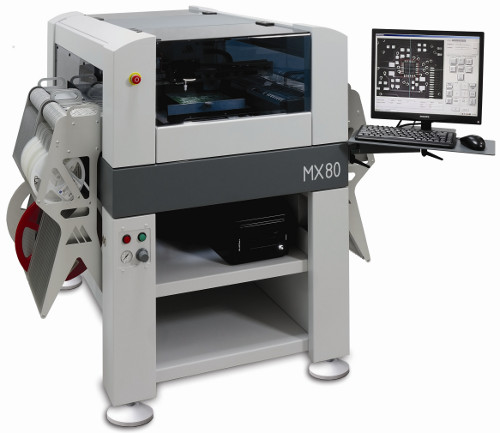

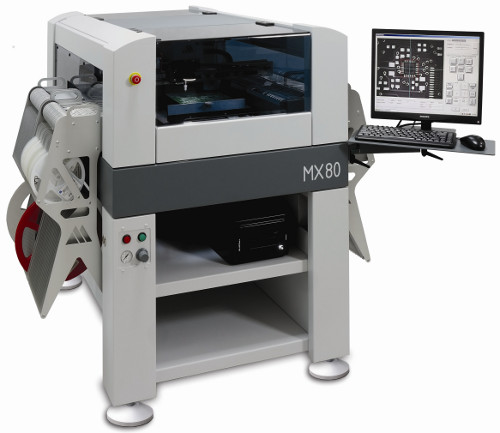

MX 80

Mechatronika’s MX80 Pick and Place System is a versatile automatic machine for placing SMD components from 0201 to 40 x 40 mm with a full vision, touchless component centering.

Matured, high quality rigid construction, ease of programming and excellent price to performance ratio make MX80 perfectly suited for small and middle scale production lines.
MX80 combines mechanical accuracy with high quality pattern recognition system built into easy to use and powerful programming software. MX80 productivity and flexibility, quick change-over and low maintenance requirements drive down total cost of ownership (TCO) to the level demanded by today's cost-sensitive production environments.
The very unique feature of MX80 is its ability to pickup bulk (loose) components from container-type feeders. MX80 built-in intelligent vision system enables to locate required component, pick it up, determine its position on the nozzle head and precisely place it on preprogrammed position. MX80 accepts any number of bulk component feeders that can fit within its working space.
PCB-Placement area325 × 500 mm
ComponentsRange from 0201 to 40 × 40 mm
 Pitch up to 0,4 mm
Placement accuracyBetter than 0,08 mm
Dimensions900 × 1250 × 1230 mm,
Weight250 kg
