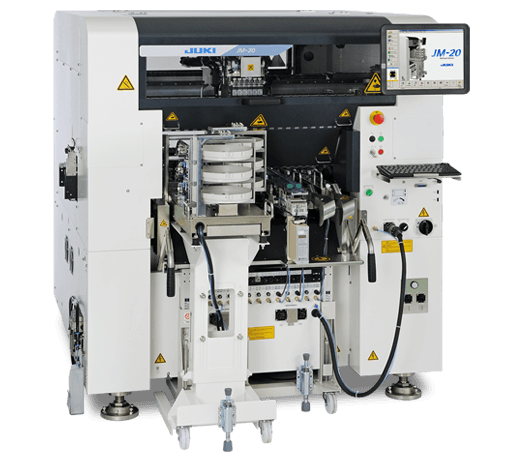

JM20/XL

Higher quality and labor savings by automating manual insertion. Advanced model for larger/heavier components and larger boards

  • Laser sensor for lead detection
  • Wide variety of feeder types ( Feeders can be customized for specific components )
  • Lead 90 degree bend function
  • Lead Correction Unit
Multi Task Platform JM-20
  L-size board XL-size board
Board Size Single Clamp 410×360mm 410×560mm
Double Clamp 800×360mm 800×560mm
PCB Weight max. 4kg
Component Height 28mm
55mm
Component Size
Laser recognition
0603 ~ 50mm
Vision recognition 54mm view camera: 3mm ~ 50mm
27mm view camera: 1005 ~ 24mm
Insertion Speed
Vacuum (JUKI Condition)
0.8 sec/parts
Placement Speed (SMT) Chip (Optimal): 15,500 CPH
IC: 4,200 CPH
Placement Accuracy (SMT) Laser recognition: ±0.05mm (3σ)
Vision recognition: ±0.04mm
