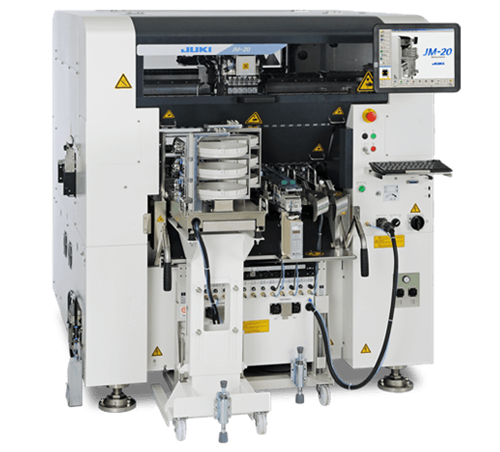

JM10/JM20

Achieve higher quality and labor savings by automating manual insertion.

The JM10/JM20 automates the manual insertion process and is the advanced model for larger/heavier components and larger boards.
  • Placement or Insertion of Surface Mount & Through-Hole Components
  • Widest Component Range in the Electronics Industry
  • Accommodates Multiple Types of Feeders
Juki
Placement head
  • Multi nozzle laser head (6 nozzles)

Placement rate SMT (max.)
  • 15,500 cph laser centering (optimum)
  • 12,700 cph laser centering of SMT components (IPC 9850)
  • 4,200 cph vision centering
Placement rate THT (max.)
  • 0.8 s/comp. (vacuum)
  • 1.3 s/comp. (gripper)
Component range
  • 0201 - 50.0 x 50.0 mm
Component height (max.)
  • 55 mm
Placement accuracy
  • ±50 μm (Cpk ≥ 1) laser centering
  • ±40 μm vision centering
Board dimension (max.)
  • 410 x 560 mm
  • 800 x 560 mm (with long board option)
