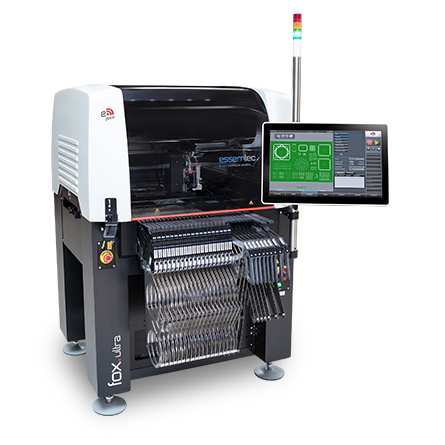

Fox.ultra

Smart, compact and agile pick-and-place platform for flexible SMT production

Introducing – The FOX technology – for all types of components and devices. Expandable in any direction. The FOX can drive up to 200 feeders, illustrating its dedication to high-mix production. Due to its small footprint and reasonable weight, the machine is ideal for use in limited space production areas, even on upper floors.

Parameters and specifications

Combined processes: Placing & dispensing in a single pass-through; jet dispensing of solder paste or glue.
Productivity: Up to 9’100 – 31’000 cph per module (depending on configuration).
Small footprint: Up to 200 feeder lanes on 1 m²; up to 420 feeder lanes per line.
Mineral cast chassis: No vibration, symmetrical mineral casting; no warpage, no thermal drift.
Quick changeover: Nonstop production; intelligent smart feeder with production changeover.
Linear motors: Fast, reliable double-drive linear motors; no maintenance required and longest lifetime.

		Fox4	Fox2	Fox
Productivity	Optimum placement speed	31’000 cph (4-axes)	17’500 cph (2-axes)	9’100 cph (1-axis)
	Solder Paste Jetting Shockwave Jet Valve Jet-on-the-Fly	-	Max Frequency: 1’100’000 dots/h BGA Pattern Speed: 665’000 dots/h Average board speed: 350’000 dots/h
Feeder	Feeder Capacity 8 mm Tape	200 (140 inline)	180 (120 inline)	180 (120 inline)
Components	Component Size Range		008004 (imp.) - 109 x 87 mm	(Note specs for details)
Accuracy	Placement accuracy (x, y)		Chip ± 40 μm (3σ) / QFP ± 30 μm (3σ)
PCB	Max. PCB dimensions		406 x 305 mm (16 x 12“)
Dimensions	Machine footprint		1’027 x 1’117 mm (40 x 44”)
