MM800

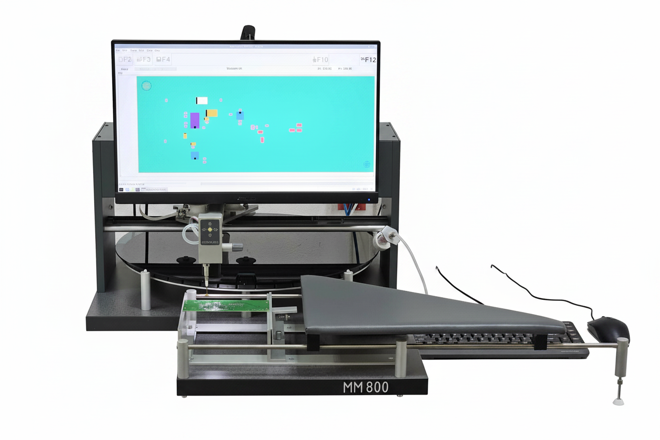

Mechatronika MM800 is a semi-automatic pick and place system for SMD components, that also allows dispensing of glue or solder paste on PCB.

Ease and precision of operation are supported by ACCUPLACE targeting system with optical indicator. Bulk material as well as taped components can be processed. CAD layout data can be transformed into placement data.

MM800 is specially suitable for prototyping and small volume production.

Mechatronika

PCB placement area 240 × 280 mm
Component Feeder automatically indexed carousel feeder with 45–90 compartments
Component positioning by ACCUPLACE targeting system
Data transfer from CAD
Dimensions 590 × 810 × 350 mm
Weight 20 kg
Power Supply 230 V, 50 Hz, 25 W
Air Supply 0.6 MPa



  • semi-automatic and manual mode
  • ACCUPLACE system ensures reliable components placing
  • 45- position carousel feeder
  • built-in computer with 22″ screen
  • camera system for automatic fiducial recognition and optical inspection
  • TEACH-IN programming or data transfer from CAD
  • interface for Mechatronika automatic tape feeder blocks
  • good price to performance ratio
