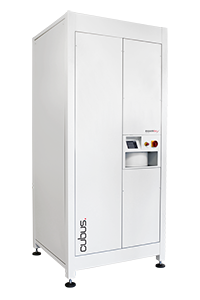

Cubus

Connective lean storage solution. Organized, Intelligent & Expandable

Introducing - The Cubus - The right material, at the right time in the right location. The Cubus can be used as total automated SMD storage solution for small to mid-size companies as well as automated material replenishment units for high to super high speed lines.

Naturally adaptive
With Cubus, the next generation storage solution, users can reconfigure the internal layout of the system at any time to adapt to individual, up-todate needs. The unique Cubus software, eStorage, allows users to map and recalibrate the new layout in less than 20 minutes. The small system footprint of the Cubus, makes the system one of the most compact, yet efficient, flexible storage solutions. According to studies over 60% of production line stops comes from logistics issues; the correct material is not in the right place when required. Cubus will reduce this stoppage time by 95%.

Parameters and specifications

expandability

Storage capacity from 612 to 1540 8mm reels
Two sizes system, unlimited expandability

productivity

Reduces logistic problems by 95%
SMD reels of all sizes, trays, boxes & more

accuracy

Full traceability of all stored items
Software control for MSD components

roi

Lowest ROI of any production system
Configure – Operate – Integrate!

flexiblity

User reconfiguration backed by auto-mapping
Unique intuitive eStorage software

integration

Full interface to most production systems and
all major ERP and material management

	Cubus Regular	Cubus Large
Maximum capacity	4-7" reels: 612 (8 mm tape only) or any mix of 4-15" reels	4-7" reels: 932 (8 mm tape only) or any mix of 4-15" reels
	With spindle up to 1'022 reels (8 mm tape)	With spindle up to 1'540 reels (8 mm tape)
Storage	SMD Reels of all sizes, trays, boxes, bulk components and small sticks	SMD Reels of all sizes, trays, boxes, bulk components and small sticks
Access time	5-6 reels per minute	5-6 reels per minute
Reel detection	Automatic diameter and width detection, automatic barcode detection	Automatic diameter and width detection, Automatic barcode detection
Database	Data access via Access table; Connection to existing SQL systems	Data access via Access table; Connection to existing SQL systems
