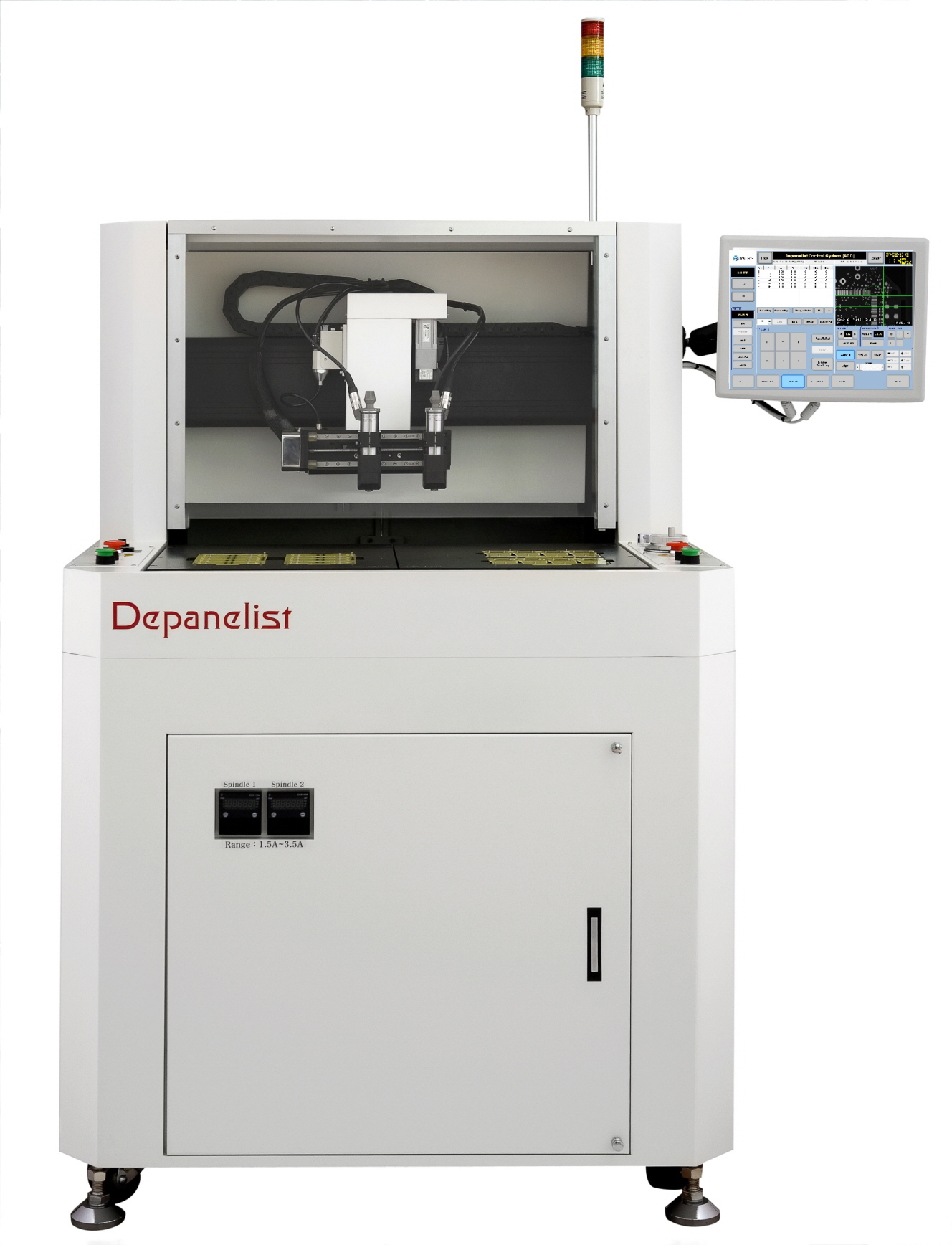

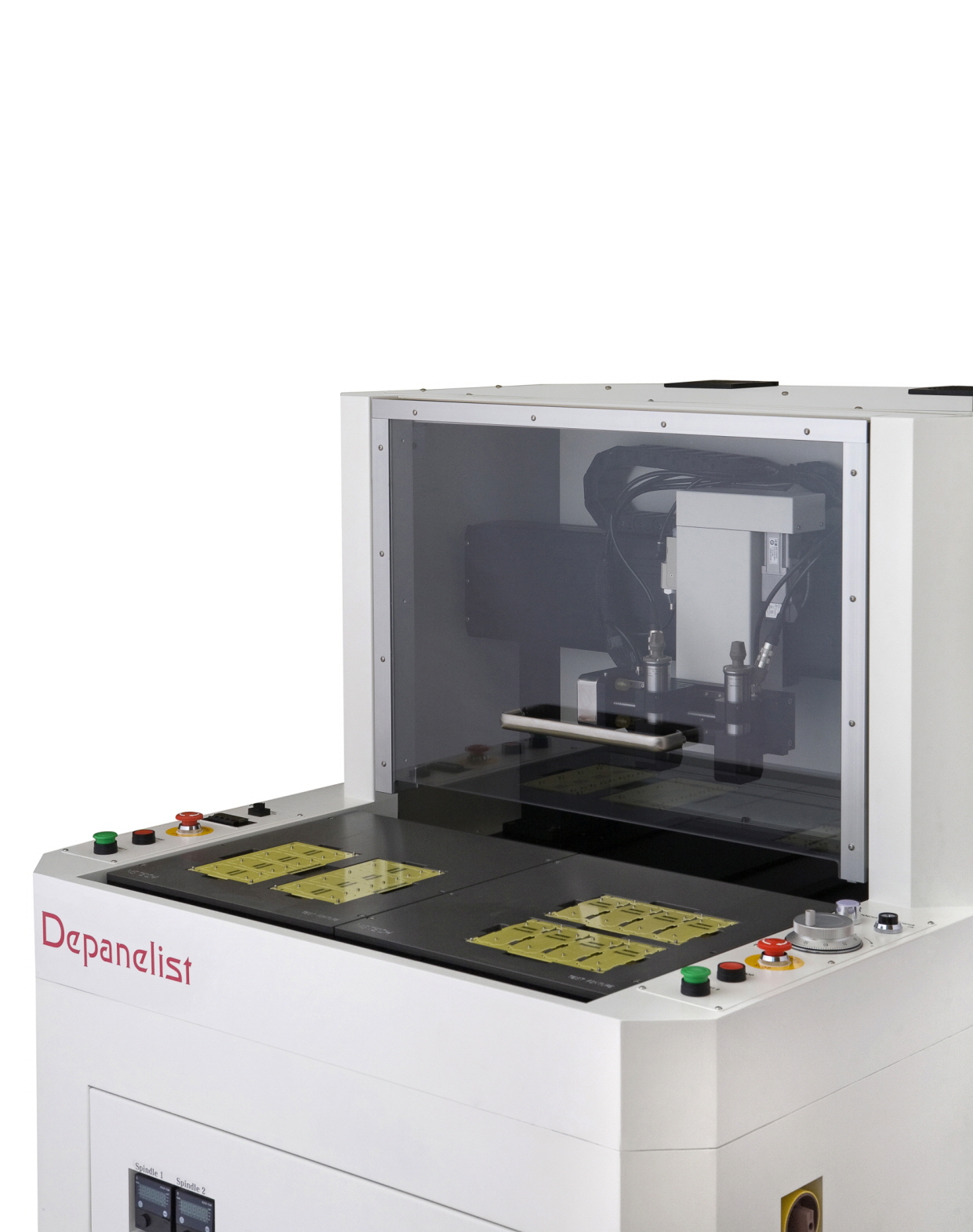

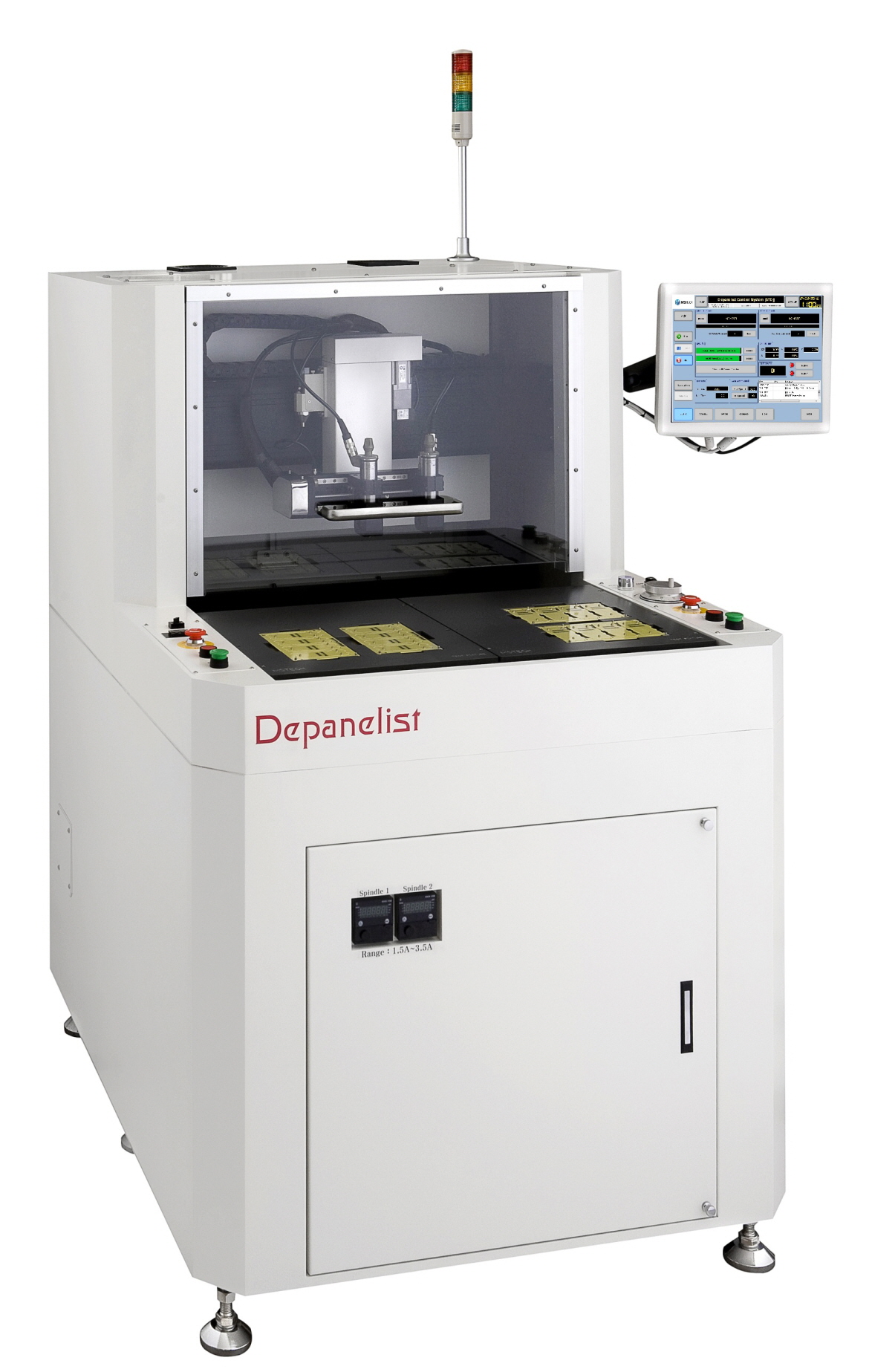

nDPL-T

off-line PCB router

  • Simultaneous operation with two(2) spindle motors
  • Enables the highest throughput with multi-head even at stand-alone station
  • Production Volume per day : Max. More than 23K PCB (based on 22hr operation)
  • Effect to reduce User’s investment cost in space, operator, and system compared to competitor’s stand-alone router (Our 1 system = Competitor’s 2 system)
  • Easiest & quickest program teaching by Camera & MPG
  • Teaching time for new product : less than 15 min
  • Minimize program teaching time with powerful and convenient ‘Program Copy Function’
  • Changeover time : less than 2 min
  • ‘Spindle Mate’ : Diagnostic spindle status (each spindle’s current) checking with
    pre-warning to prevent PCB damage
  • Computer based control & user friendly GUI based on Windows XP environment
  • Large sized 15” Touch LCD monitor applied for operator’s easy manipulation
  • ESD protecting 1 sets of Ionizer System (Area ionizing type)
  • Join PL(Product Liability) Insurance
Dimensions1000 × 1200 × 1500 mm (W×D×H)
WeightApprox. 580 kg (w/o Dust Collector)
Axis Configuration5-axes AC servo motor
Working TableTwin
Moving Speed1,000 mm/sec (Max)
Cutting Speed50 mm/sec (Max)
Cutting Accuracy±0.1 mm
Repeatability±0.02 mm
Spindle Motor150W, 60K rpm(Max)
Number of Spindle2 (as standard)
