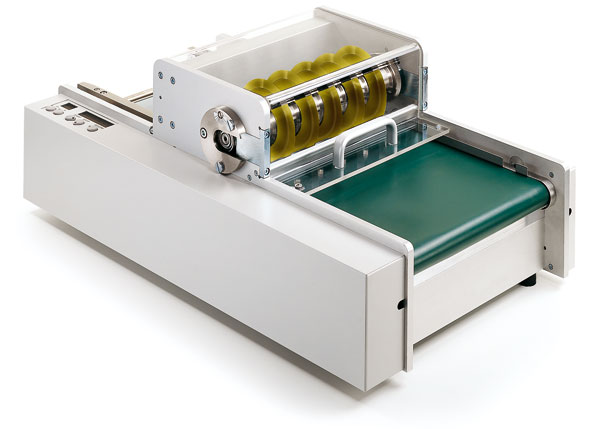

Maestro 5L

When large numbers of pre-scored PCBs need to be separated. MAESTRO 5L with base frame is used most economically whenever large numbers of pre-scored PCBs need to be separated. The well-arranged control panel ensures easy operation.

MAESTRO 5L with base frame is used most economically whenever large numbers of pre-scored PCBs need to be separated. The well-arranged control panel ensures easy operation.

Machine with base frame - adjustable in height for optimal modification of each application.
PCB panels with maximum width of 310 mm can be separated by up to 11 pairs of circular blades simultaneously. Configuration of the blades is adjusted to your individual PCB also the cover and the guide.

Sensors are used to monitor the separating process. The PCBs are placed either by hand or they feed automatically by a loading station. The machine can also be installed in an assembling line. The SMEMA interface is the standard connection for use. Every machine is automatically prepared for dust extraction and with cleaning brushes for rear-end conveyor.

Separation typeComponent side: circular blade;Solder side: circular blade
Operationmotorized
Separation speed 100 - 220 mm/s in 10 steps
Width of PCB panelsmax. 310 mm
Width off-cutmin. 3 mm
Solder sidemax. 10 mm
