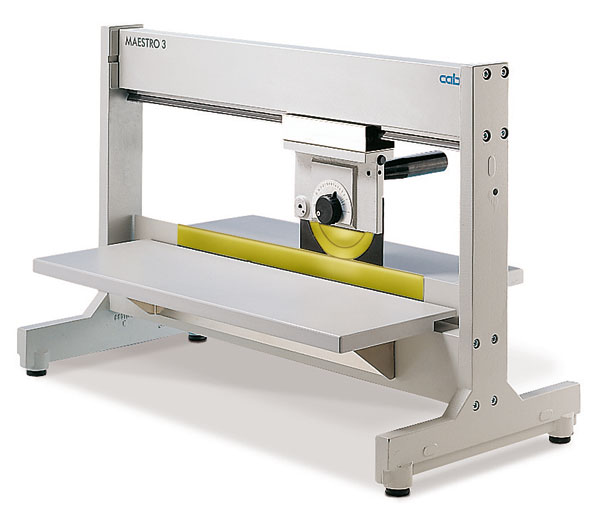

Maestro 3E

For small and large PCBs with pre-scored groove. MAESTRO 3E separates both small and large pre-scored PCBs. The table and the rest can be continuously adjusted to the most suitable working position.


MAESTRO 3E separates both small and large pre-scored PCBs.
The table and the rest can be continuously adjusted to the most suitable working position.

Safe Operation
The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB. The clearance between the upper guide and the linear blade ist adustable to ensure that the PCB is only separated in the pre-scored groove.

Separation typeComponent side: circular blade; Solder side: linear blade
Operationby hand
Separation lengthmax. 450 mm
MaterialFR4, Aluminum
Weight22 kg
Dimensions H x W x D455 x 350 x 700 mm
ApprovalsCE, FCC class ATechnical data
