Aligner device AD 401/402

Widths set by hand using a gear belt or motorized.

Series 701 to 704 and 7001 to 7004 magazines are aligned precisely to PCB widths. A CCD laser determines
the exact position of a side panel. Distances to add to the nominal PCB width can be set separately.
CAB
  • Magazine widths 320 to 400 mm;530 mm are in preparation
  • PCB widths 40 to 330 mm;460 mm are in preparation
  • Repetitive accuracy +/- 0.2 mm
  • Steps in 0.1 mm
  • Voltage 100 - 240 VAC, 50/60 Hz
  • Consumption of power in typical operation < 5 W
Vít Matuš Sales Manager
(inspection, measurement, SMT production support machines)
mobile
+420 601 309 047
email
v.matus%a-t%pbt.cz

Send me your question.


Your personal data will be processed according to the privacy policy.




CAB
  • New
Aligner device AD 401/402

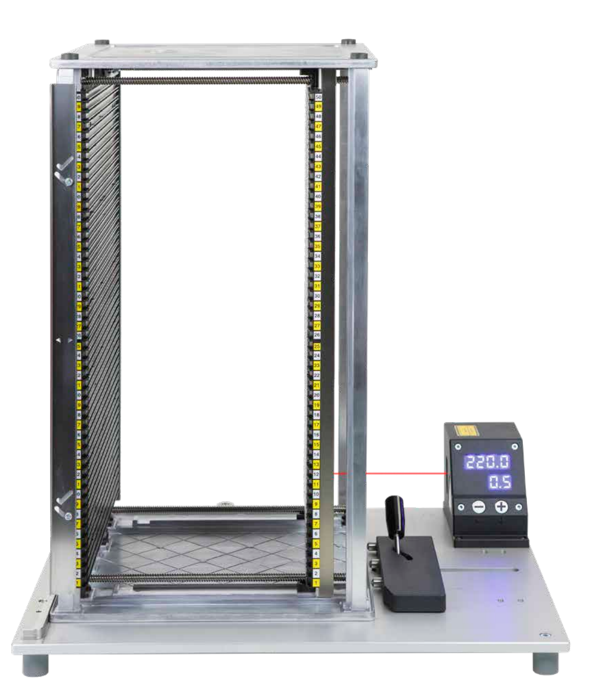

Aligner device AD 401/402 - obr. 1
