Series 600/700/800

For automated assembly lines. The stable and robust frame construction guarantees a long lasting use of the cab magazine in your production. The rack walls are manufactured from conductive material.

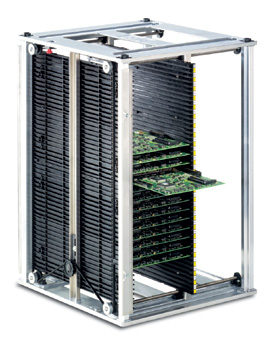

Precision, stability and flexible handling are important features for the use of the PCB Magazines in automated assembly lines. The stable and robust frame construction guarantees a long lasting use of the cab magazine in your production. The rack walls are manufactured from conductive material.

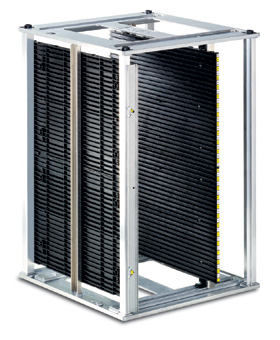

  • Series 600 - Width adjustment by screw clamp: The series 600 is cost effective alternative with a simple width adjustment. By backing off the four screw clamps the moveable rack wall can be pushed to the necessary PCB width.
  • Series 700 - Width adjustment by gear belt: Handling different PCB sizes the magazines have to be adjusted to the PCB width quite often. The PCB Magazines of the series 700 are adjusted to the necessary PCB width within seconds.

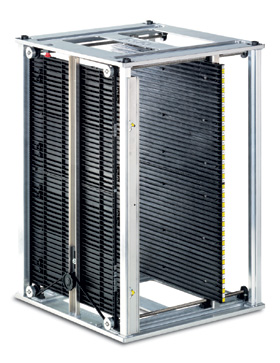

  • Series 800 - Full automatic width adjustment: Increase process safety and optimize your production process by the automatic width adjustment of the cab magazines in unloaders. On request.
  • Transport safety: To secure the PCBs while transporting the magazine, a safety bar is mounted on the front and back side of the rack wall.
  • Stackable: The magazines can be stacked and secured space saving by four support guides on the top of the plate
  • Reversible: Through to the vertical symmetry all magazines can be placed upside down to work on double sided PCBs. The stacking locator knobs must be replaced.
  • Slot lock: To lock the slots of series 600.1/2 and 700.1/2 PCB magazines
Material side wall
Series 60x.1, 70x.1, 80x.1Polystyrene
Series 60x.2, 70x.2, 80x.2Polycarbonate
Series 60x.3, 70x.3, 80x.3Metal
