TP/TS1

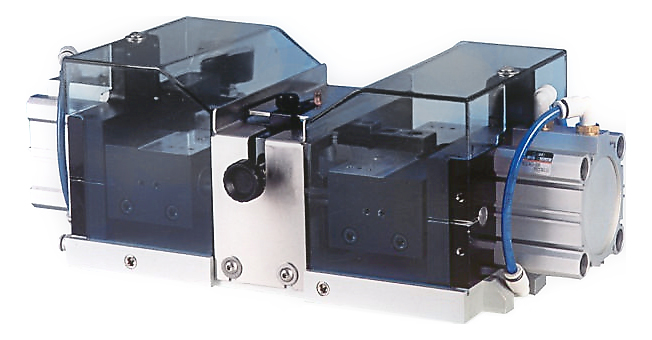

The TP/TS1 is a pneumatic machine designed to cut and form loose radial components.

The pneumatic machines TP/TS1 and TP/SC4 are very flexible equipment designed for cutting and forming loose radial components. A large number of dies are designed and manufactured to realise the mainly requested standard forms and special ones. They can be adapted to both machine apart one (163000) which needs the activation of a third cylinder that can only be with TP/SC4.
It is possible to equip both machines, on request, with two wire holders in order to lock the leads between the body and the operation area. There are over 20 standard interchangeable dies available. Special dies can be made to modify the specs of a standard form or a new form can be developed from a drawing upon request.

LEAD DIA.0,3-1,2 mm
PRODUCTION2.000 p/h
LENGTH39 cm
WIDTH23 cm
HEIGHT14 cm
PACKING45x40x27 cm
VOLUME0,0486 m3
MACHINE WEIGHT13 kg
GROSS WEIGHT14 kg
