TP/TO-CF

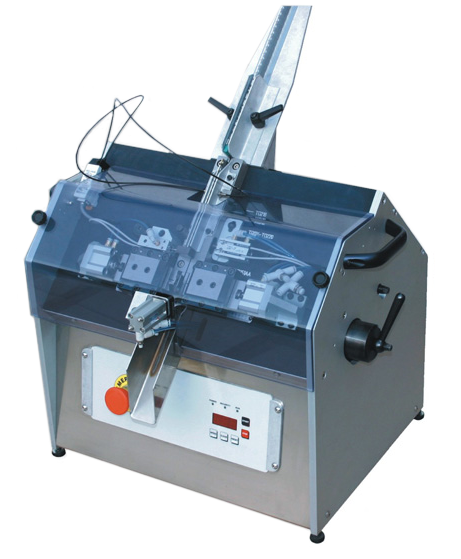

The TP/TO-CF is an automatic machine designed to cut and form transistors in a tube (TO-220, TO-218, TO-126)

All strokes are controlled by a PLC. The complete operation is fully automatic and each form needs a dedicated die. Two wire holders lock the leads before the cutting forming operations. Special forms to customers specifications are available upon request.

SPEED3000p/h
LENGTH55 CM
WIDTH40 CM
HEIGHT65 CM
DIMENSIONS70X50X80
VOLUME .28M3
MACHINE WEIGHT40 KG
GROSS WEIGHT44 KG
CRATED WEIGHT55 KG
