TP/TC4

Motorized cutting machine for loose radial components. Adjustable speed. Easy and quick manual component feeding.

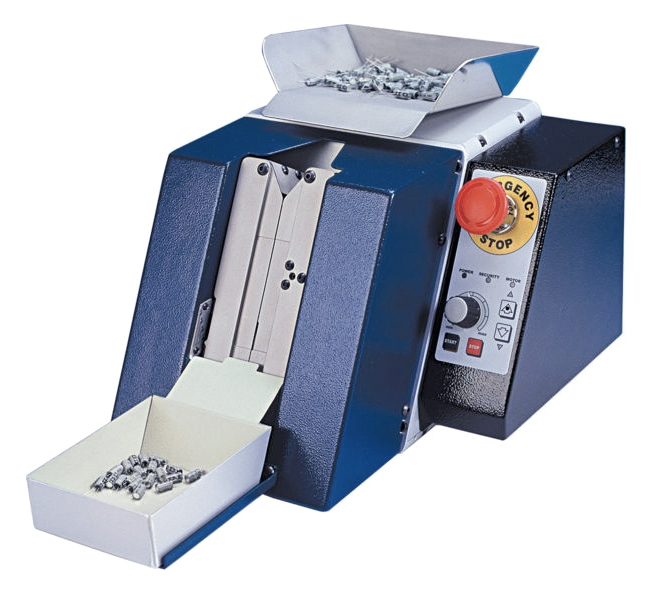

The TP/TC4 machine is designed to cut loose radial components. The speed and cutting height are adjustable. The machine stops when the front cover is removed from the machine.
This accessory can be attached to the TP/TC4 machine to allow the quick cut of radial components in tape and reel. It is available in two versions: for tape with 12,7 or 15 mm Pitch.

Parameters and specifications

LEAD DIA.0,4 - 0,8 mm
PRODUCTION LOOSE3.000 p/h
TAPED15.000 p/h
WIDTH27 cm
DEPTH47 cm
HEIGHT27 cm
PACKING40x30x24 cm
VOLUME0,028 m3
MACHINE WEIGHT12 kg
GROSS WEIGHT19 kg
